Removal [12/2013 - ]: Procedure

  1. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE STOP LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER
  4. REMOVE BRAKE PEDAL RETURN SPRING

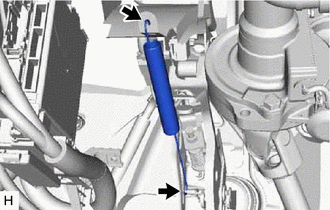

    1. Remove the brake pedal return spring from the instrument panel reinforcement assembly and push rod pin.
      GTY429704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE PUSH ROD PIN
    1. Remove the clip and push rod pin.
      GTY429711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

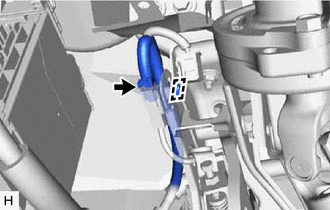

    1. Disconnect the connector and disengage the clamp.
      GTY429708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

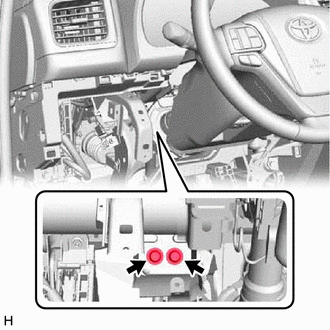

    2. Remove the 2 bolts and separate the brake pedal support assembly from the instrument panel reinforcement assembly.
      GTY429709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

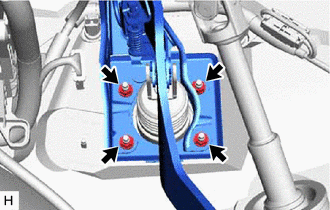

    3. Remove the 4 nuts and brake pedal support assembly.
      GTY429720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE BRAKE PEDAL PAD
    1. Remove the brake pedal pad from the brake pedal support assembly.
