Installation [12/2013 - ]: Procedure

1. Install the brake pedal pad to the brake pedal support assembly.

1. Install the brake pedal support assembly with the 4 nuts.

   Torque: 12.7 N*m (130 kgf*cm, 9 ft.*lbf)

2. Install the brake pedal support assembly to the instrument panel reinforcement assembly with the 2 bolts.

   Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

3. Connect the connector and engage the clamp.

1. Apply lithium soap base glycol grease to the push rod pin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Lithium Soap Base Glycol Grease

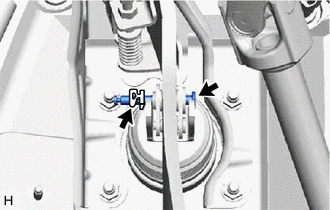

2. Connect the brake master cylinder push rod clevis to the brake pedal support assembly with the push rod pin, and install a new clip as shown in the illustration.
   NOTE:

   Be sure to install the push rod pin in the correct direction.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

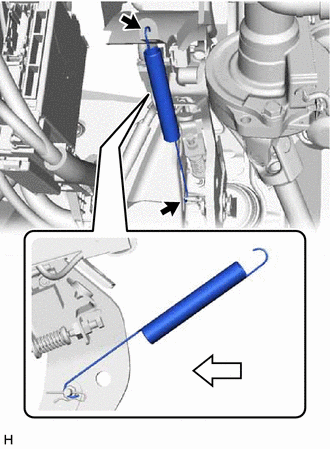

1. Install the brake pedal return spring to the instrument panel reinforcement assembly and push rod pin as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Front

Refer to PROCEDURE - Step 1

Refer to INSTALLATION [12/2013 - ]

Refer to ADJUSTMENT [12/2013 - ]
