Components [12/2013 - ]: Illustration

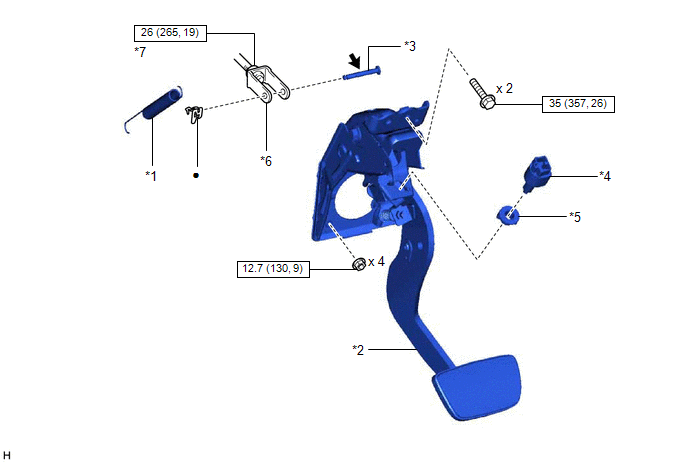

Fig 1: Brake Pedal Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BRAKE PEDAL RETURN SPRING	*2	BRAKE PEDAL SUPPORT ASSEMBLY
*3	PUSH ROD PIN	*4	STOP LIGHT SWITCH ASSEMBLY
*5	STOP LIGHT SWITCH MOUNTING ADJUSTER	*6	BRAKE MASTER CYLINDER PUSH ROD CLEVIS
*7	LOCK NUT	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	Lithium soap base glycol grease	-	-

Fig 1: Brake Pedal Replacement Components (2 Of 2)

BRAKE PEDAL PAD
