Removal [12/2013 - 11/2016]: Procedure

  1. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  2. REMOVE RADIATOR SIDE DEFLECTOR SEAL LH

    Refer to PROCEDURE - Step 1

  3. REMOVE RADIATOR SIDE SEAL RH

    Refer to PROCEDURE - Step 2

  4. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 3

  5. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY (for 1AR-FE)

    Refer to PROCEDURE - Step 24

  6. REMOVE INLET AIR CLEANER ASSEMBLY (for 1AR-FE)

    Refer to PROCEDURE - Step 25

  7. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE (for 1AR-FE)

    Refer to PROCEDURE - Step 3

  8. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY (for 1AR-FE)

    Refer to PROCEDURE - Step 27

  9. REMOVE AIR CLEANER CASE SUB-ASSEMBLY (for 1AR-FE)

    Refer to PROCEDURE - Step 28

  10. REMOVE V-BANK COVER SUB-ASSEMBLY (for 2GR-FE)

    Refer to PROCEDURE - Step 25

  11. REMOVE INLET AIR CLEANER ASSEMBLY (for 2GR-FE)

    Refer to PROCEDURE - Step 26

  12. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE (for 2GR-FE)

    Refer to PROCEDURE - Step 3

  13. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY (for 2GR-FE)

    Refer to PROCEDURE - Step 28

  14. REMOVE AIR CLEANER CASE SUB-ASSEMBLY (for 2GR-FE)

    Refer to PROCEDURE - Step 29

  15. DISCONNECT NO. 1 RESERVOIR HOSE

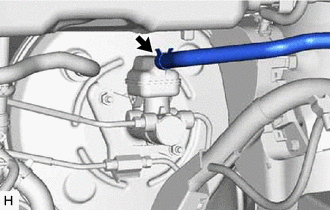

    1. Slide the clip and disconnect the No. 1 reservoir hose from the brake master cylinder sub-assembly.
      GTY451699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY WITH WAY

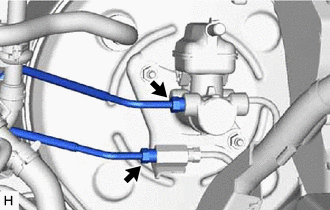

    1. Using a union nut wrench, disconnect the 2 brake lines from the brake master cylinder sub-assembly with way.
      GTY429778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not damage or deform the brake lines during the removal procedure.
      • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.

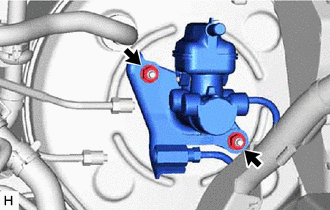

    2. Remove the 2 nuts and brake master cylinder sub-assembly with way from the brake booster assembly.
      GTY429776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • The brake master cylinder sub-assembly requires careful handling. Do not allow the brake master cylinder sub-assembly to receive any impact, such as from being dropped. Do not reuse a brake master cylinder sub-assembly that has been dropped.
      • Do not hold the brake master cylinder sub-assembly by the master cylinder piston. Hold the brake master cylinder sub-assembly by its body or its reservoir when carrying it.
      • Do not pull out the master cylinder piston.
      • Do not strike or pinch the master cylinder piston, or cause any damage to the master cylinder piston by any other means.
      • When installing the brake master cylinder sub-assembly to the brake booster assembly, or when removing the brake master cylinder sub-assembly from the brake booster assembly, make sure that the brake master cylinder sub-assembly is kept horizontal or with its tip facing downward (the master cylinder piston is facing upward) to prevent the master cylinder piston from falling out.
      • Do not allow any foreign matter to contaminate the master cylinder piston. If any foreign matter gets on the master cylinder piston, remove it by using a piece of new and dry cloth. Do not use water or detergent. Then apply an even layer of lithium soap base glycol grease around the circumference (sliding part) of the master cylinder piston.
      • Do not use any other types of grease.
      • Make sure to release vacuum from the brake booster assembly before removing the brake master cylinder sub-assembly from the brake booster assembly.
  17. REMOVE BRAKE MASTER CYLINDER O-RING
    1. Remove the brake master cylinder O-ring from the brake master cylinder sub-assembly.
