Components [12/2013 - 11/2016]: Illustration

Fig 1: Brake Master Cylinder Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COOL AIR INTAKE DUCT SEAL	*2	RADIATOR SIDE DEFLECTOR SEAL LH
*3	RADIATOR SIDE SEAL RH	-	-

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 1AR-FE	-	-
*1	AIR CLEANER CAP WITH AIR CLEANER HOSE	*2	AIR CLEANER CASE SUB-ASSEMBLY
*3	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY	*4	INLET AIR CLEANER ASSEMBLY
*5	NO. 1 ENGINE COVER SUB-ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 2GR-FE	-	-
*1	AIR CLEANER CAP WITH AIR CLEANER HOSE	*2	AIR CLEANER CASE SUB-ASSEMBLY
*3	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY	*4	INLET AIR CLEANER ASSEMBLY
*5	V-BANK COVER SUB-ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

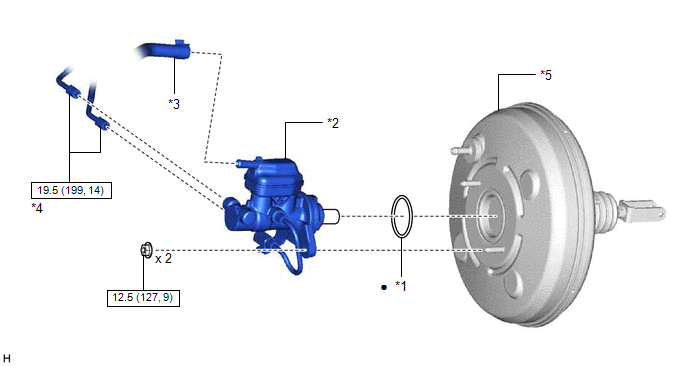

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BRAKE MASTER CYLINDER O-RING	*2	BRAKE MASTER CYLINDER SUB-ASSEMBLY WITH WAY
*3	NO. 1 RESERVOIR HOSE	*4	BRAKE LINE
*5	BRAKE BOOSTER ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

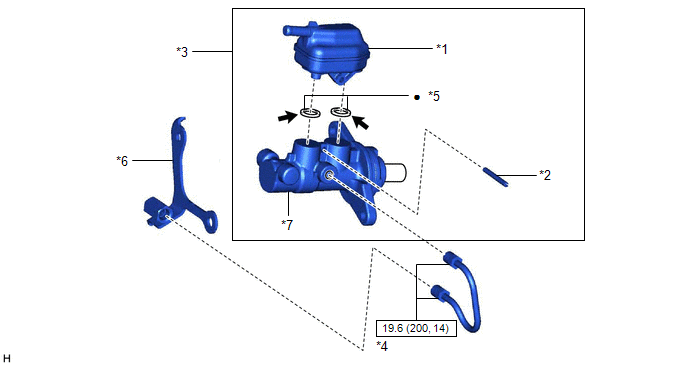

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY	*2	BRAKE MASTER CYLINDER RING PIN
*3	BRAKE MASTER CYLINDER SUB-ASSEMBLY	*4	BRAKE MASTER CYLINDER TO WAY TUBE
*5	MASTER CYLINDER RESERVOIR GROMMET	*6	NO. 2 BRAKE TUBE WAY
*7	BRAKE MASTER CYLINDER BODY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
	Lithium soap base glycol grease	-	-
