Reassembly [12/2013 - 11/2016]: Procedure

  1. INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY (for 1AR-FE)
    1. Install 2 new check valve grommets to the brake booster assembly.

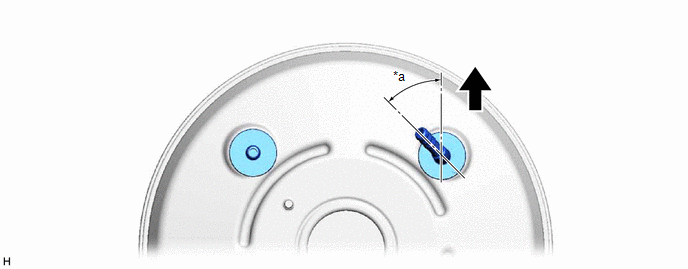

    2. Install the 2 brake vacuum check valve assemblies to the brake booster assembly as shown in the illustration.
      GTY427564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45° +/- 15° - -
      Up - -
  2. INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY (for 2GR-FE)
    1. Install a new check valve grommet to the brake booster assembly.
    2. Install the brake vacuum check valve assembly to the brake booster assembly.
