Components [12/2013 - 11/2016]: Illustration

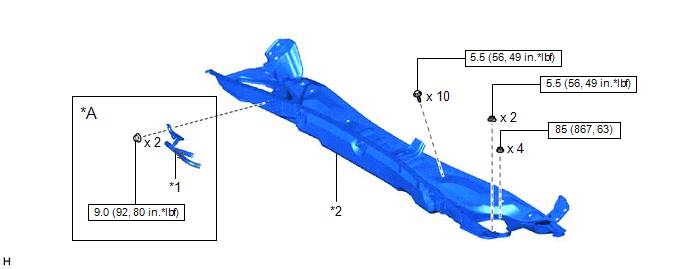

Fig 1: Brake Booster Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 1AR-FE	-	-
*1	BRAKE BOOSTER VACUUM EJECTOR	*2	OUTER COWL TOP PANEL SUB-ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

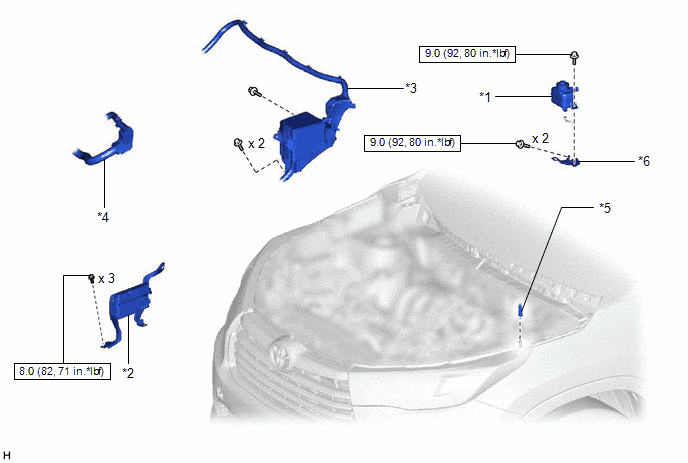

Fig 1: Brake Booster Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY	*2	ECM
*3	ENGINE ROOM MAIN WIRE	*4	ENGINE WIRE
*5	FUEL VAPOR FEED HOSE ASSEMBLY	*6	RESERVOIR BRACKET
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

Fig 1: Brake Booster Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 1AR-FE	-	-
*1	NO. 1 VACUUM HOSE CONNECTOR	*2	BRAKE BOOSTER ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

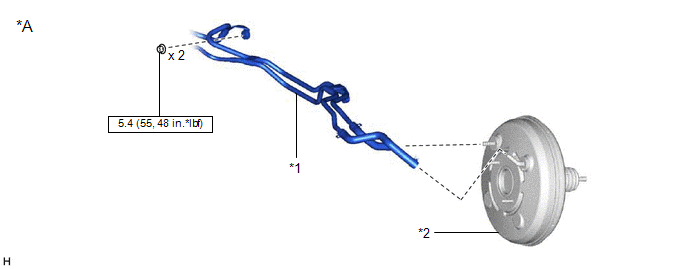

Fig 1: Brake Booster Replacement Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2GR-FE	-	-
*1	UNION TO CHECK VALVE HOSE	*2	BRAKE BOOSTER ASSEMBLY

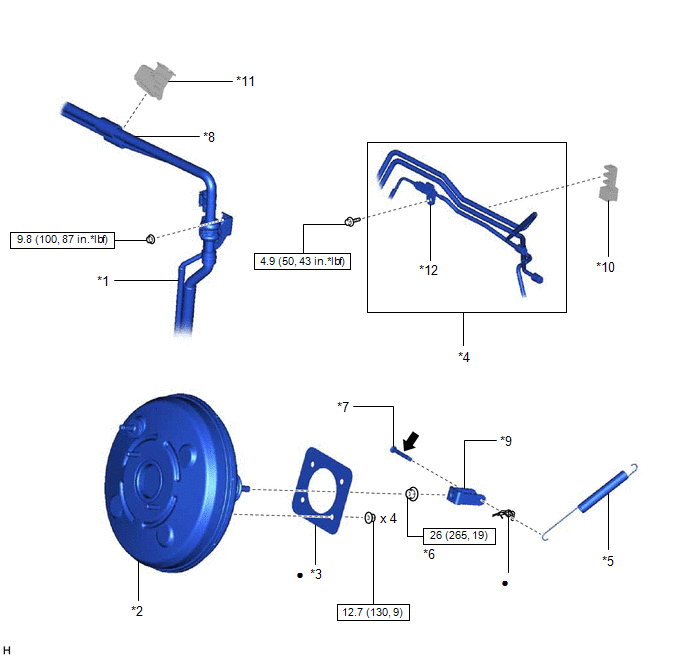

Fig 1: Brake Booster Replacement Components With Torque Specifications (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY	*2	BRAKE BOOSTER ASSEMBLY
*3	BRAKE BOOSTER GASKET	*4	BRAKE LINE
*5	BRAKE PEDAL RETURN SPRING	*6	LOCK NUT
*7	PUSH ROD PIN	*8	SUCTION HOSE SUB-ASSEMBLY
*9	BRAKE MASTER CYLINDER PUSH ROD CLEVIS	*10	BRAKE TUBE CLAMP
*11	PIPING CLAMP	*12	FRONT NO. 1 BRAKE TUBE WAY
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
	Lithium soap base glycol grease	-	-

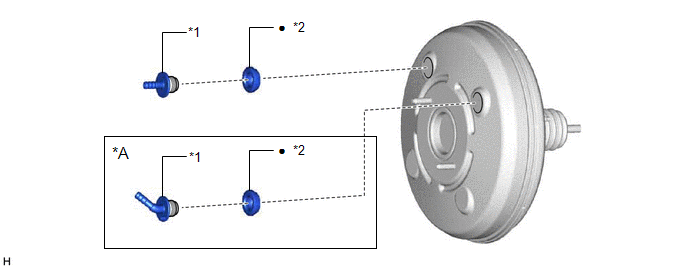

Fig 1: Brake Booster Replacement Components (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 1AR-FE	-	-
*1	BRAKE VACUUM CHECK VALVE ASSEMBLY	*2	CHECK VALVE GROMMET
•	Non-reusable part	-	-
