Parts Location [12/2013 - ]: Illustration

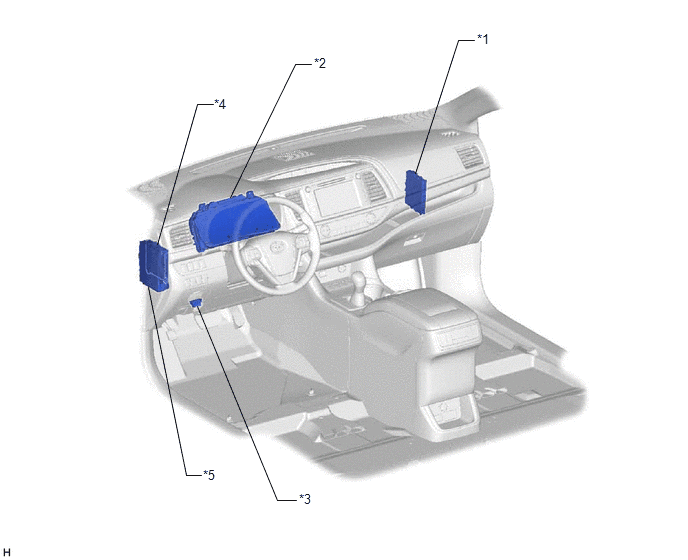

Fig 1: Glass Hatch Opener System Components Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (w/ Smart Key System)	*2	COMBINATION METER ASSEMBLY
*3	DLC3	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOOR BACK FUSE	-	-

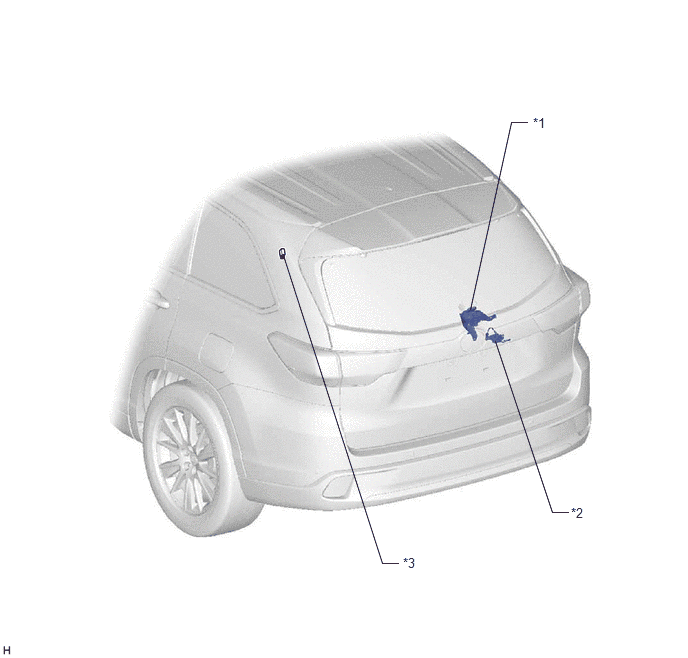

Fig 1: Glass Hatch Opener System Components Location (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BACK WINDOW LOCK ASSEMBLY	*2	GLASS HATCH OPENER SWITCH ASSEMBLY
*3	G/H NO. 1 RELAY	-	-
