Installation [12/2013 - ]: Procedure

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the 2 connectors.

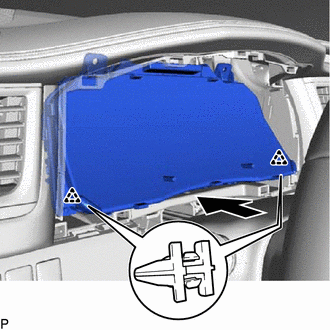

    2. Engage the 2 clips as shown in the illustration.
      GTY423516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the combination meter assembly with the 2 screws.
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

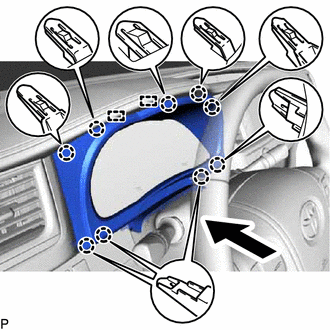

    1. Engage the 2 guides and 9 claws as shown in the illustration.
      GTY423515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

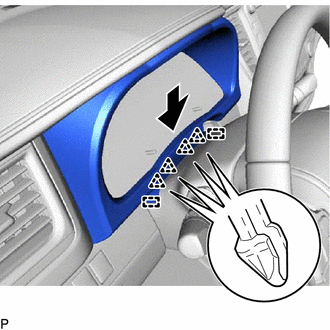

    2. Engage the 2 guides and 4 clips to install the instrument cluster finish panel assembly as shown in the illustration.
      GTY423619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2013 - 11/2016]

    Refer to INITIALIZATION [11/2016 - ]
