Disassembly [12/2013 - ]: Procedure

  1. REMOVE COMBINATION METER GLASS

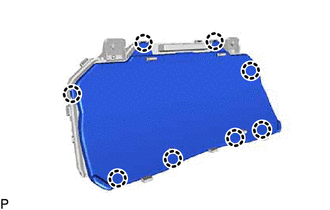

    1. Disengage the 8 claws to remove the combination meter glass.
      GTY446588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
