Parts Location [12/2013 - ]: Illustration

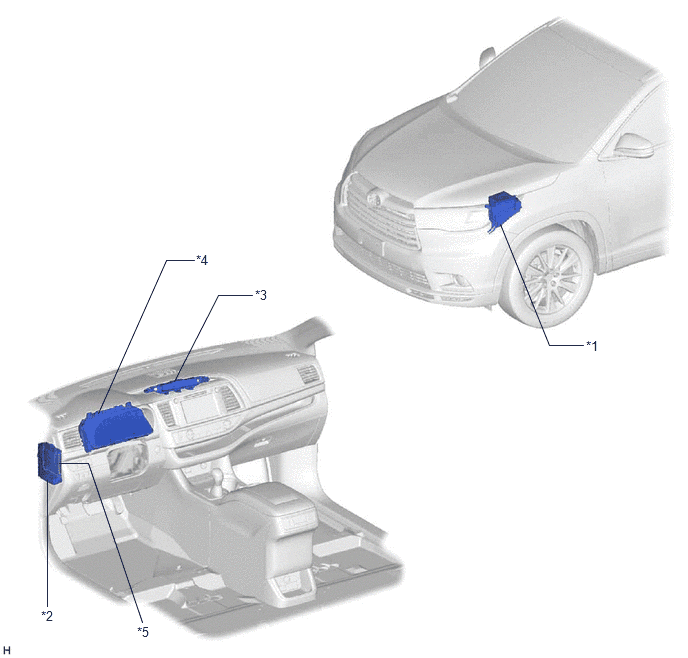

Fig 1: Clock System Components Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE	*2	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - IG1 NO. 3 FUSE
*3	CLOCK ASSEMBLY	*4	COMBINATION METER ASSEMBLY
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	-	-
