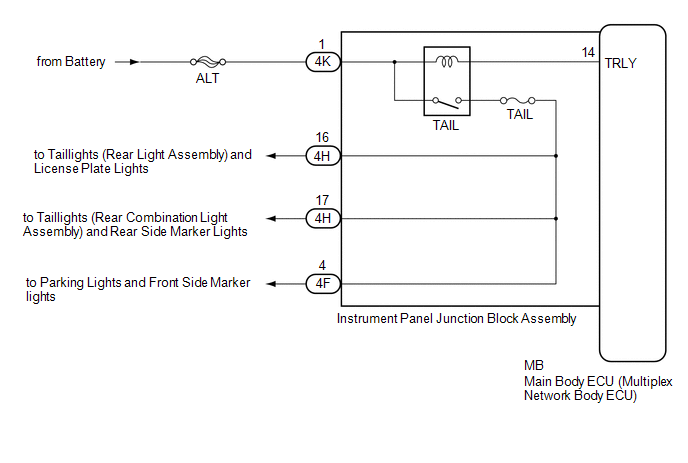

Taillight Relay Circuit [12/2013 - 11/2016]: Wiring Diagram

GTY427509

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
