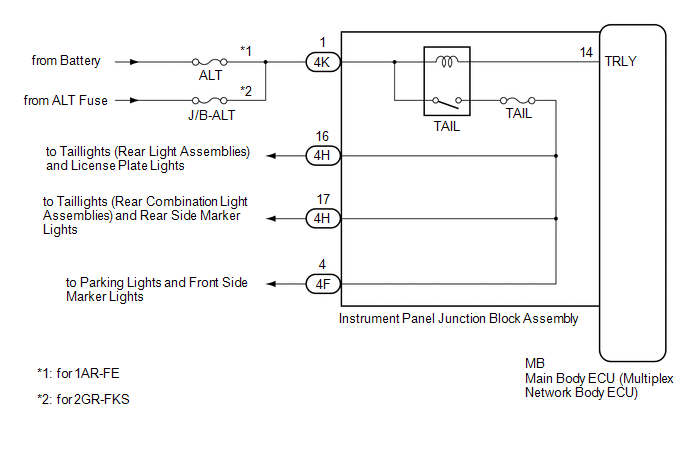

Taillight Relay Circuit [11/2016 - ]: Wiring Diagram

GTY692659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
