Daytime Running Light Relay Circuit [12/2013 - 11/2016]: Wiring Diagram

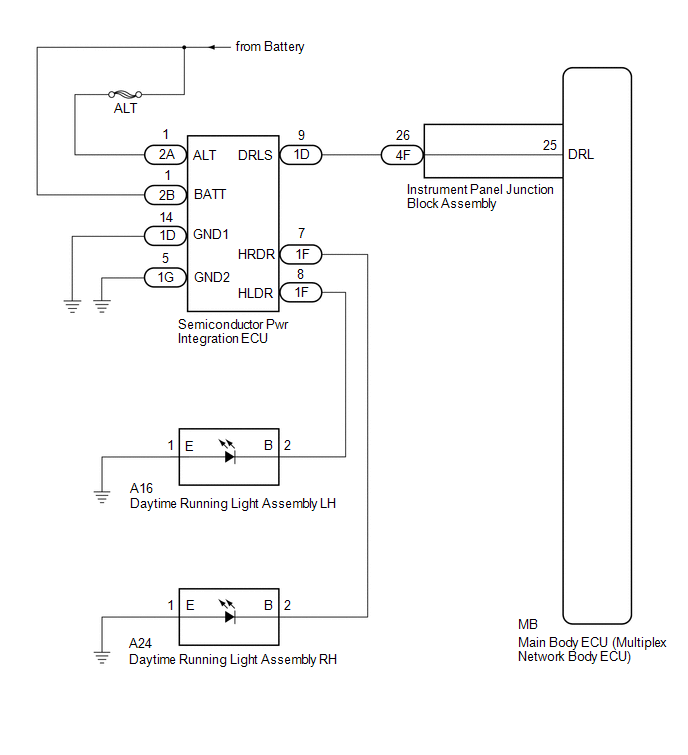

  1. for DRL LED Type
    GTY455257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

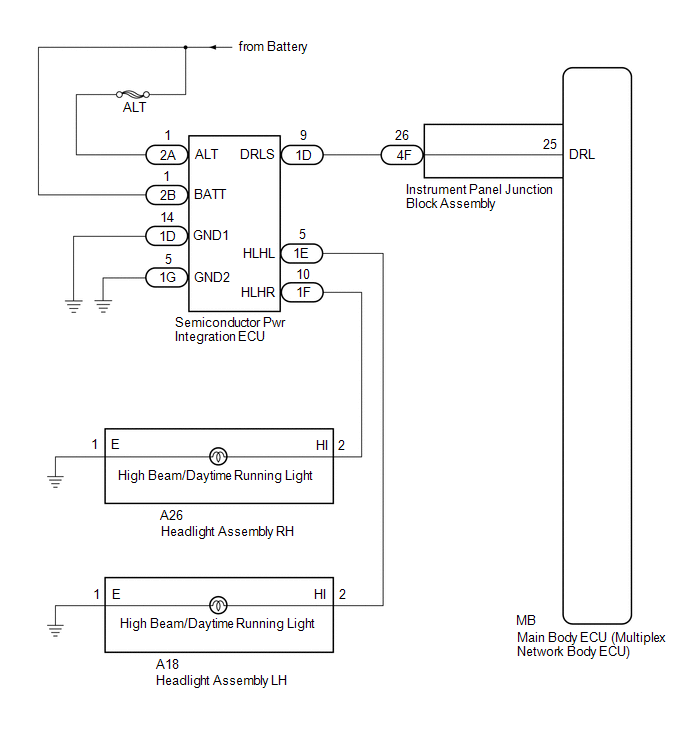

  2. for DRL Bulb Type
    GTY443107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
