Lighting System (Exterior) - Diagnostic Codes & Circuit Tests - (Except Hybrid)
>>
Lighting System
>>
Circuit Tests
>>
Daytime Running Light Relay Circuit [11/2016 - ]
>>
Wiring Diagram
Daytime Running Light Relay Circuit [11/2016 - ]: Wiring Diagram

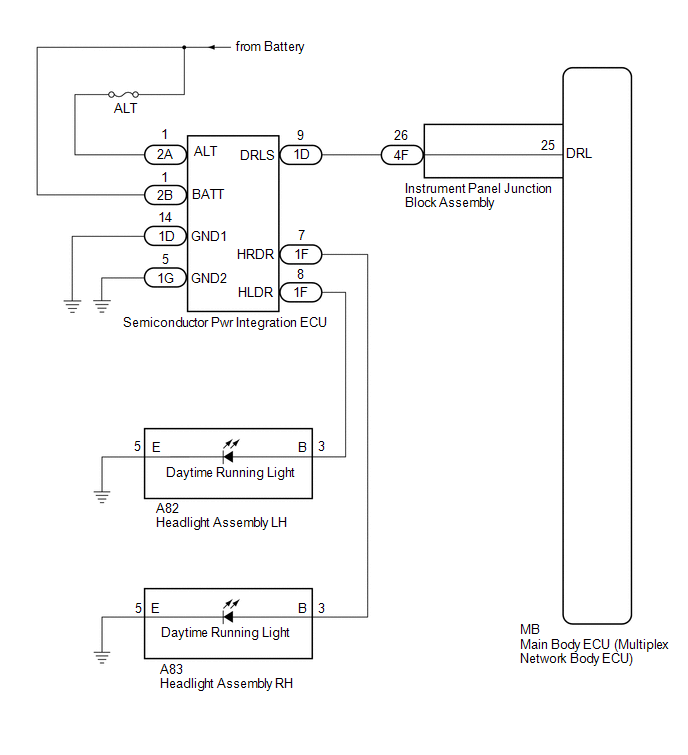

for LED Type DRL
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

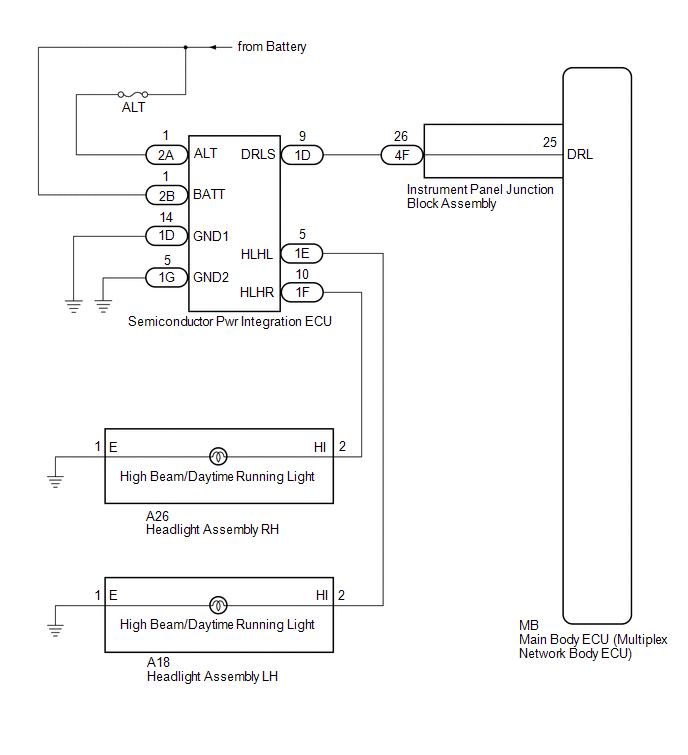

for Bulb Type DRL
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
