System Description [08/2017 - ]

  1. OUTLINE OF COMBINATION METER ASSEMBLY

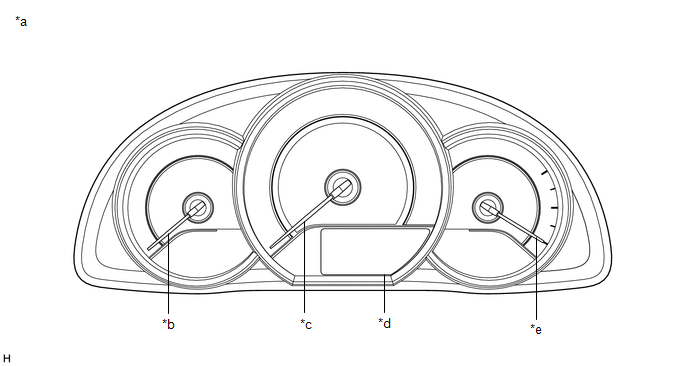

    1. Multi-information Display (Segment LCD Type)
      GTY720745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Indication Example *b Tachometer
      *c Speedometer *d Multi-information Display (Segment LCD Type)
      *e Fuel Receiver Gauge - -

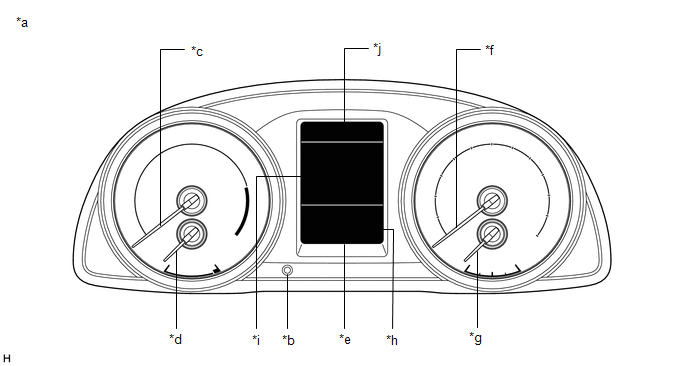

    2. Multi-information Display (Dot LCD Type)
      GTY697801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Indication Example *b ODO/TRIP Switch Knob
      *c Tachometer *d Engine Coolant Temperature Receiver Gauge
      *e Multi-information Display (Dot LCD Type) *f Speedometer
      *g Fuel Receiver Gauge *h Display Area A
      *i Display Area B *j Display Area C

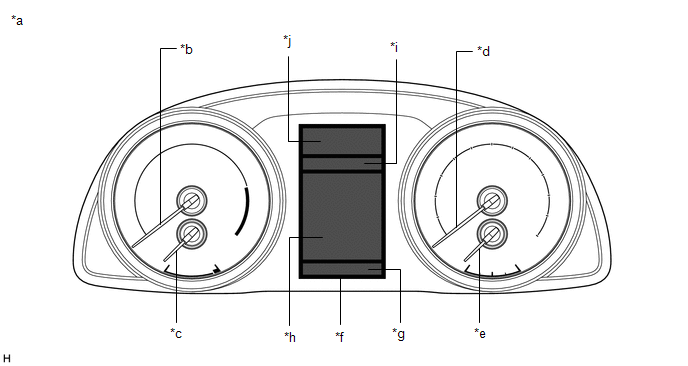

    3. Multi-information Display (Color Type)
      GTY715829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Indication Example *b Tachometer
      *c Engine Coolant Temperature Receiver Gauge *d Speedometer
      *e Fuel Receiver Gauge *f Multi-information Display (Color Type)
      *g Display Area A *h Display Area B
      *i Display Area C *j Display Area D
  2. INPUT AND OUTPUT SIGNALS OF COMBINATION METER ASSEMBLY
    1. Meter or Gauge
      Item Condition Input/Output CAN/Direct line Signal Component
      Speedometer Gauge Input CAN Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Direct line Vehicle speed pulse input signal
      - Output CAN Vehicle speed signal (meter to other) Related ECUs
      Speed tolerance A signal
      Speed tolerance B signal
      Direct line Vehicle speed pulse signal Related ECUs
      Tachometer Gauge Input CAN Engine RPM data signal ECM
      Fuel receiver gauge Gauge Input CAN Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Starter signal ECM
      Shift position P signal
      Shift position N signal
      Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Direct line Fuel level signal Fuel sender gauge assembly
      Engine coolant temperature receiver gauge* Gauge Input CAN Engine coolant temperature signal ECM
      • *: for Multi-information Display (Dot LCD Type and Color Type)
    2. Warning or Indicator
      Item Condition Input/Output CAN/Direct line Signal Component
      Turn indicator light Blinks Input CAN Flasher request signal Main body ECU (Multiplex network body ECU)
      Direct line LH turn signal switch signal Headlight dimmer switch assembly
      RH turn signal switch signal
      Hazard warning signal switch signal Hazard warning signal switch assembly
      - Output Direct line LH turn indicator output signal Each turn signal light
      RH turn indicator output signal
      Hazard warning signal switch illuminate signal Hazard warning signal switch assembly
      High beam indicator light Comes on Input Direct line High beam signal DIM relay
      Charge warning light*1 Comes on Input CAN Charge light indicator signal ECM
      Engine oil pressure warning light*1 Comes on Input Direct line Engine oil pressure signal Engine oil pressure switch assembly
      MIL (Check engine warning light) Comes on Input Direct line MIL (Check engine warning light) signal ECM
      PCS warning light*4 Comes on/Blinks Input CAN PCS indicator display signal Driving support ECU assembly
      Eco driving indicator light*13 Comes on Input CAN Ecology light indicator signal ECM
      Engine coolant temperature hot warning light*1 Comes on Input CAN Engine coolant temperature signal ECM
      SRS warning light Comes on Input CAN SRS warning light control request signal Airbag sensor assembly
      Test mode signal ECM
      EPS warning light Comes on/Blinks Input CAN Demand signal to meter Power steering ECU assembly
      Door open warning light*1 Comes on Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Front passenger door courtesy switch signal
      Rear right courtesy switch signal
      Rear left courtesy switch signal
      Luggage door courtesy switch signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Brake warning light Comes on Input CAN Brake warning light control flag signal Brake actuator assembly (Skid control ECU)
      Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Direct line Brake fluid level warning switch signal Brake master cylinder reservoir assembly (Brake fluid level warning switch)
      Vacuum warning switch signal Vacuum warning switch assembly
      Driver or front passenger seat belt warning light Comes on/Blinks Input CAN Driver seat belt buckle switch signal Main body ECU (Multiplex network body ECU)
      Parking brake switch signal
      Shift position P signal ECM
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Front passenger seat belt buckle switch signal Airbag sensor assembly
      Front passenger seat occupant status signal
      Cruise SET indicator light *2, *3 Comes on Input CAN Cruise set indicator signal ECM
      Cruise control indicator light*2, *3 Comes on (Green) Input CAN Cruise main indicator signal ECM
      Cruise control indicator light*1, *3 Comes on (Amber) Input CAN Cruise control warning signal ECM
      TRAC OFF indicator light*2 Comes on Input CAN TRC OFF light signal Brake actuator assembly (Skid control ECU)
      VSC OFF indicator light Comes on Input CAN VSC OFF light signal Brake actuator assembly (Skid control ECU)
      Slip indicator light Comes on/Blinks Input CAN Slip indicator signal Brake actuator assembly (Skid control ECU)
      VSC control existence flag signal
      ABS warning light Comes on/Blinks Input CAN ABS warning light control signal Brake actuator assembly (Skid control ECU)
      Smart key warning light*1, *5 Comes on (Green/Amber) Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly)
      Tire pressure warning light*14 Comes on/Blinks Input CAN Tire pressure warning indicator 1 signal Main body ECU (Multiplex network body ECU)
      Fuel level warning light Comes on Input Direct line Fuel level signal Fuel sender gauge assembly
      Automatic high beam indicator light*11 Comes on Input CAN Smart beam indicator signal Main body ECU (Multiplex network body ECU)
      Lane departure alert indicator light*7, *15 Comes on/Blinks (Green/Amber) Input CAN Indicator display signal Forward recognition camera
      Fault condition text display signal
      Temporary unusable condition text display signal
      Front camera vision blocked signal
      Steering assist unusable text display signal
      ECO MODE indicator light*6, *7 Comes on Input CAN Eco mode indicator signal ECM
      Sport indicator light*7, *10 Comes on Input CAN Power mode signal ECM
      Tail indicator light*9, *12 Comes on Input CAN Taillight request signal Main body ECU (Multiplex network body ECU)
      Head indicator light*8, *12 Comes on Input CAN Low beam headlight request signal Main body ECU (Multiplex network body ECU)
      Master warning light*12 Comes on/Blinks Input CAN/Direct line Each warning signal Related ECUs
      • *1: for Multi-information Display (Segment LCD Type)
      • *2: for Multi-information Display (Segment LCD Type and Dot LCD Type)
      • *3: w/ Cruise Control System
      • *4: w/ Pre-collision System
      • *5: w/ Smart Key System
      • *6: w/ ECO MODE Switch
      • *7: for Multi-information Display (Dot LCD Type)
      • *8: for Speedometer with Imperial Units for Main Scale
      • *9: for Speedometer with Metric Units for Main Scale
      • *10: for CVT with Sport Switch
      • *11: w/ Automatic High Beam System
      • *12: for Multi-information Display (Dot LCD Type and Color Type)
      • *13: w/ Eco Driving Indicator Light except Multi-information Display (Dot LCD Type) without Sport Switch
      • *14: w/ Tire Pressure Warning System
      • *15: w/ Lane Departure Alert System (w/ Steering Control)
    3. Multi-information Display (Segment LCD Type)
      Item Condition Input/Output CAN/Direct line Signal Component
      Odometer Segment displayed Input CAN Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      Direct line ODO/TRIP change switch signal Steering pad switch assembly
      - Output CAN Odometer signal ECM
      Main body ECU (Multiplex network body ECU)
      Certification ECU (Smart key ECU assembly)
      Airbag sensor assembly
      Odometer unit signal ECM
      TRIP A / TRIP B Segment displayed Input CAN Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      Direct line ODO/TRIP change switch signal Steering pad switch assembly
      TRIP reset switch signal
      Current fuel consumption Displayed Input CAN Engine RPM data signal ECM
      Fuel consumption signal
      Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      - Output CAN Drive monitor unit signal 0
      • Radio and display receiver assembly*2
      • Navigation receiver assembly*3
      Drive monitor display signal (Current fuel consumption)
      Total average fuel consumption Segment displayed Input CAN Engine RPM data signal ECM
      Fuel consumption signal
      Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      Total average fuel consumption reset request signal
      • Radio and display receiver assembly*2
      • Navigation receiver assembly*3
      Direct line Reset switch signal Steering pad switch assembly
      - Output CAN Drive monitor unit signal 6
      • Radio and display receiver assembly*2
      • Navigation receiver assembly*3
      Drive monitor display signal (Total average fuel consumption)
      Drivable distance Segment displayed Input CAN Engine RPM data signal ECM
      Fuel consumption signal
      Engine type information 1, 2, 3, 4 signal
      Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU)
      Direct line Fuel level signal Fuel sender gauge assembly
      - Output CAN Drive monitor unit signal 4
      • Radio and display receiver assembly*2
      • Navigation receiver assembly*3
      Drive monitor display signal (Drivable distance)
      Average vehicle speed Displayed Input CAN Engine RPM data ECM
      Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      - Output CAN Drive monitor unit signal 1
      • Radio and display receiver assembly*2
      • Navigation receiver assembly*3
      Drive monitor display signal (Average vehicle speed)
      Eco driving indicator zone*1 Segment displayed Input CAN Eco-zone indicator level signal ECM
      Outside temperature Segment displayed Input CAN Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      Direct line Outside temperature signal Thermistor assembly
      ODO/TRIP change switch signal Steering pad switch assembly
      - Output CAN Outside temperature display data signal Air conditioning amplifier assembly
      Outside temperature sensor data signal
      Shift position*1 Segment displayed Input CAN Shift position P signal ECM
      Shift position R signal
      Shift position N signal
      Shift position D signal
      SD switch signal
      Shift position B signal
      Sports mode enable signal
      Transmission oil temperature range signal
      • *1: for CVT
      • *2: for Radio and Display Type
      • *3: for Navigation Receiver Type
    4. Multi-information Display (Dot LCD Type)
      Item Condition Input/Output CAN/Direct line Signal Component Display Area
      Odometer Displayed Input CAN Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU) A
      Vehicle speed (SP1) signal
      - Output CAN Odometer signal ECM
      Main body ECU (Multiplex network body ECU)
      Certification ECU (Smart key ECU assembly)
      Airbag sensor assembly
      Odometer unit signal ECM
      Airbag sensor assembly
      TRIP A / TRIP B Displayed Input CAN Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU) A
      Vehicle speed (SP1) signal
      - ODO/TRIP change switch signal ODO/TRIP switch knob (Combination meter assembly)
      TRIP reset switch signal
      Shift selection*1 Displayed Input CAN Shift position P signal ECM A
      Shift position R signal
      Shift position N signal
      Shift position D signal
      SD switch signal*6
      Shift position B signal*6
      Shift gear signal*7
      Mode indicator signal*7
      Sports mode enable signal
      Transmission oil temperature range signal
      Outside temperature Displayed Input CAN Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU) A
      Vehicle speed (SP1) signal
      Direct line Outside temperature signal Thermistor assembly
      - Output CAN Outside temperature display data signal Air conditioning amplifier assembly
      Outside temperature sensor data signal
      Total average fuel consumption Displayed Input CAN Engine RPM data signal ECM B
      Fuel consumption signal
      Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      Total average fuel consumption reset request signal
      • Radio and display receiver assembly*8
      • Navigation receiver assembly*10
      Direct line Reset switch signal Steering pad switch assembly
      - Output CAN Drive monitor unit signal 6
      • Radio and display receiver assembly*8
      • Navigation receiver assembly*10
      Drive monitor display signal (Total average fuel consumption)
      Current fuel consumption Displayed Input CAN Engine RPM data signal ECM B
      Fuel consumption signal
      Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      - Output CAN Drive monitor unit signal 0
      • Radio and display receiver assembly*8
      • Navigation receiver assembly*10
      Drive monitor display signal (Current fuel consumption)
      Drivable distance Displayed Input CAN Engine RPM data signal ECM B
      Fuel consumption signal
      Engine type information 1, 2, 3, 4 signal
      Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU)
      Direct line Fuel level signal Fuel sender gauge assembly
      - Output CAN Drive monitor unit signal 4
      • Radio and display receiver assembly*8
      • Navigation receiver assembly*10
      Drive monitor display signal (Drivable distance)
      Average vehicle speed Displayed Input CAN Engine RPM data signal ECM B
      Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      - Output CAN Drive monitor unit signal 1
      • Radio and display receiver assembly*8
      • Navigation receiver assembly*10
      Drive monitor display signal (Average vehicle speed)
      Driving time Displayed Input CAN Engine RPM data signal ECM B
      - Output CAN Drive monitor display signal (Driving time)
      • Radio and display receiver assembly*8
      • Navigation receiver assembly*10
      SETTINGS Displayed - - - - B
      Eco driving indicator zone*1 Displayed Input CAN Eco-zone indicator level signal ECM B
      Opening Displayed - - - - B
      Ending Displayed - - - - B
      Cruise control indicator light (Constant speed control mode)*15 Displayed Input CAN ACC ASL display ID2 signal ECM C
      Cruise SET indicator light*15 Displayed Input CAN ACC ASL display ID2 signal ECM C
      Cruise control indicator light (Vehicle-to-vehicle distance control mode)*15 Displayed Input CAN ACC ASL display ID2 signal ECM C
      Eco driving indicator light*6 Displayed Input CAN Ecology light indicator signal ECM C
      ADJUSTING FORWARD CAMERA*16 Displayed Input CAN Camera adjustment mode text display signal Forward recognition camera B
      ADJUSTING FRONT RADAR BEAM ERROR*5 Displayed Input CAN FRD adjustment signal Driving support ECU assembly B
      ADJUSTING FRONT RADAR BEAM ALONG VERTICAL AXIS*5 Displayed Input CAN FRD adjustment signal Driving support ECU assembly B
      ADJUSTING FRONT RADAR BEAM ALONG HORIZONTAL AXIS*5 Displayed Input CAN FRD adjustment signal Driving support ECU assembly B
      ADJUSTING FRONT RADAR BEAM*5 Displayed Input CAN FRD adjustment signal Driving support ECU assembly B
      CHECKING PCS BRAKE*5 Displayed Input CAN Inspection mode signal Driving support ECU assembly B
      CHECKING CRUISE CONTROL BRAKE*15 Displayed Input CAN Inspection mode for ACC signal Driving support ECU assembly B
      BRAKE!*5 Displayed Input CAN PCS warning message signal Driving support ECU assembly B
      Dynamic radar cruise control reminder indicator (image display)*15 Displayed Input CAN ACC ASL display ID2 signal ECM B
      Lane departure alert reminder indicator (image display)*16 Displayed Input CAN White line symbol left side signal Forward recognition camera B
      White line symbol right side signal
      Steering wheel symbol signal
      Each door open (vehicle being driven) (image display) Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) B
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Luggage door courtesy switch signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Each door open (vehicle stopped) (image display) Displayed Input CAN Driver door open display signal*3 Certification ECU (Smart key ECU assembly) B
      Front passenger door open display signal*3
      Rear right open display signal*3
      Rear left open display signal*3
      Driver door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Luggage door courtesy switch signal
      AUTO POWER OFF TO CONSERVE BATTERY*3 Displayed Input CAN Message request for push start signal Certification ECU (Smart key ECU assembly) B
      SHIFT TO P POSITION*3 Displayed Input CAN Message request for push start signal Certification ECU (Smart key ECU assembly) B
      Smart system warning 2 signal
      RELEASE PARKING BRAKE Displayed Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU) B
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      KEY NOT DETECTED*3 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      LDA HOLD STEERING WHEEL*16 Displayed Input CAN Hands free caution text display signal Forward recognition camera B
      LDA STEERING ASSIST UNAVAILABLE HOLD STEERING WHEEL*16 Displayed Input CAN Hands free caution text display signal Forward recognition camera B
      Charge warning (Battery symbol) Displayed Input CAN Charge light indicator signal*13 ECM B
      Starter signal*13
      Direct line Charge L terminal signal*14 Generator assembly
      RADAR CRUISE CONTROL UNAVAILABLE CLEAN SENSOR*15 Displayed Input CAN ACC ASL display ID2 signal ECM B
      RADAR CRUISE CONTROL UNAVAILABLE*15 Displayed Input CAN ACC ASL display ID2 signal ECM B
      CHECK SMART KEY SYSTEM*3 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      CHECK CRUISE CONTROL SYSTEM Displayed Input CAN Cruise control warning signal*2 ECM B
      ACC ASL display ID2 signal*15
      LANE DEPARTURE ALERT MALFUNCTION VISIT YOUR DEALER*16 Displayed Input CAN Fault condition text display signal Forward recognition camera B
      FRONT CAMERA UNAVAILABLE*5 Displayed Input CAN Temporary unusable condition text display signal Forward recognition camera B
      PCS temperature message (Camera) signal Driving support ECU assembly
      LANE DEPARTURE ALERT UNAVAILABLE*16 Displayed Input CAN Steering assist unusable text display signal Forward recognition camera B
      LANE DEPARTURE ALERT TURNED ON STEERING ASSIST ACTIVE*16 Displayed Input CAN LKA mode text display signal Forward recognition camera B
      LANE DEPARTURE ALERT TURNED ON STEERING ASSIST INACTIVE*16 Displayed Input CAN LKA mode text display signal Forward recognition camera B
      FRONT CAMERA UNAVAILABLE REMOVE DEBRIS ON WINDSHIELD*5 Displayed Input CAN Front camera vision blocked signal Forward recognition camera B
      PCS dust message (Camera) signal Driving support ECU assembly
      PRE-COLLISION SYSTEM MALFUNCTION VISIT YOUR DEALER*5 Displayed Input CAN PCS fault condition text display signal Driving support ECU assembly B
      ENGINE OIL PRESSURE LOW Displayed Input CAN Engine RPM data signal ECM B
      Direct line Engine oil pressure signal Engine oil pressure switch assembly
      LANE DEPARTURE ALERT UNAVAILABLE BELOW APPROX 50KM/H*16 Displayed Input CAN Speed condition failure text display signal Forward recognition camera B
      LANE DEPARTURE ALERT UNAVAILABLE BELOW APPROX 32MPH*16 Displayed Input CAN Speed condition failure text display signal Forward recognition camera B
      LANE DEPARTURE ALERT UNAVAILABLE AT CURRENT SPEED*16 Displayed Input CAN Speed condition failure text display signal Forward recognition camera B
      TURN POWER OFF*3 Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) B
      Message request for push start signal
      WOULD YOU LIKE TO TAKE A BREAK?*16 Displayed Input CAN SWS rest advisory display signal Forward recognition camera B
      PLEASE TAKE A BREAK*16 Displayed Input CAN SWS rest advisory display signal Forward recognition camera B
      KEY DETECTED IN VEHICLE*3 Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly) B
      TURN LIGHTS OFF Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) B
      Lighting system state signal
      MOON ROOF OPEN*9 Displayed Input CAN Sliding roof open warning request signal Main body ECU (Multiplex network body ECU) B
      DEPRESS BRAKE PEDAL, TOUCH ENGINE SWITCH WITH KEY*1, *3 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      DEPRESS CLUTCH PEDAL, TOUCH ENGINE SWITCH WITH KEY*3, *4 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      DEPRESS BRAKE PEDAL AND PUSH ENGINE SWITCH TO START*1, *3 Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly) B
      Message request for push start signal
      DEPRESS CLUTCH PEDAL AND PUSH ENGINE SWITCH TO START*3, *4 Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly) B
      Message request for push start signal
      SHIFT TO P POSITION TO START*1, *3 Displayed Input CAN Message request for push start signal Certification ECU (Smart key ECU assembly) B
      STEERING LOCK ACTIVE*3 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      KEY BATTERY LOW*3 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      HEADLIGHT SYSTEM MALFUNCTION VISIT YOUR DEALER*17 Displayed Input CAN Smart beam indicator signal Main body ECU (Multiplex network body ECU) B
      LOW WASHER FLUID*11 Displayed Input Direct line Washer fluid level signal Level warning switch assembly B
      MAINTENANCE REQUIRED SOON*12 Displayed Input CAN Starter signal ECM B
      MAINTENANCE REQUIRED*12 Displayed Input CAN Starter signal ECM B
      RESETTING MAINTENANCE DATA*12 Displayed - - - - B
      RESETTING OF MAINTENANCE DATA INCOMPLETE*12 Displayed - - - - B
      POWER ON*3 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      Smart key symbol (image display)*3 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      VSC TURNED OFF PRE-COLLISION BRAKE SYSTEM UNAVAILABLE*5 Displayed Input CAN PB temporary unusable condition text display signal Driving support ECU assembly B
      VSC OFF light signal Brake actuator assembly (Skid control ECU)
      PRE-COLLISION SYSTEM UNAVAILABLE*5 Displayed Input CAN PCS temporary unusable condition text display signal Driving support ECU assembly B
      PCS temperature message (Radar) signal
      PRE-COLLISION SYSTEM UNAVAILABLE CLEAN SENSOR*5 Displayed Input CAN PCS dust message (Radar) signal Driving support ECU assembly B
      PRE-COLLISION SYSTEM OFF*5 Displayed Input CAN PCS warning message signal Driving support ECU assembly B
      PCS warning distance unusable condition text display signal
      PCS distance warning signal
      PCS ped warning signal
      PCS preceding vehicle start notification signal
      • *1: for CVT
      • *2: w/ Cruise Control System
      • *3: w/ Smart Key System
      • *4: for Manual Transaxle
      • *5: w/ Pre-collision System
      • *6: for CVT without Sport Switch
      • *7: for CVT with Sport Switch
      • *8: for Radio and Display Type
      • *9: w/ Sliding Roof System
      • *10: for Navigation Receiver Type
      • *11: w/ Washer Fluid Level Warning
      • *12: for Speedometer with Imperial Units for Main Scale
      • *13: w/ Battery Current Sensor
      • *14: w/o Battery Current Sensor
      • *15: w/ Dynamic Radar Cruise Control System
      • *16: w/ Lane Departure Alert System (w/ Steering Control)
      • *17: w/ Automatic High Beam System
    5. Multi-information Display (Color Type)
      Item Condition Input/Output CAN/Direct line Signal Component Display Area
      Opening Displayed - - - - All
      Odometer Displayed Input CAN Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU) A
      Vehicle speed (SP1) signal
      - ODO/TRIP change switch signal Steering pad switch assembly
      - Output CAN Odometer signal Related ECU
      Odometer unit signal
      TRIP A / TRIP B Displayed Input CAN Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU) A
      Vehicle speed (SP1) signal
      - ODO/TRIP change switch signal Steering pad switch assembly
      Shift position*1 Displayed Input CAN Shift position P signal ECM D
      Shift position R signal
      Shift position N signal
      Shift position D signal
      SD switch signal*2
      Shift gear signal*2
      Shift gear signal*3
      Mode indicator signal*3
      Sports mode enable signal
      Transmission oil temperature range signal
      Outside temperature Displayed Input CAN Vehicle speed pulse signal calculated value Brake actuator assembly (Skid control ECU) D
      Vehicle speed (SP1) signal
      Direct line Outside temperature signal Thermistor assembly
      - Output CAN Outside temperature display data signal Air conditioning amplifier assembly
      Outside temperature sensor data signal
      Ice warning light Displayed Input Direct line Outside temperature signal Thermistor assembly D
      Lane departure alert indicator light Displayed Input CAN Indicator display signal Forward recognition camera D
      Fault condition text display signal
      Temporary unusable condition text display signal
      Front camera vision blocked signal
      Steering assist unusable text display signal
      Cruise control indicator light (Constant speed control mode) Displayed Input CAN ACC ASL display ID2 signal ECM D
      Cruise SET indicator light Displayed Input CAN ACC ASL display ID2 signal ECM D
      Cruise control indicator light (Vehicle-to-vehicle distance control mode) Displayed Input CAN ACC ASL display ID2 signal ECM D
      Sport indicator light*3 Displayed Input CAN Power mode signal ECM D
      ECO MODE indicator light*4 Displayed Input CAN Eco mode indicator signal ECM D
      Current fuel consumption Displayed Input CAN Engine RPM data signal ECM B
      Fuel consumption signal
      Vehicle speed pulse signal calculated value signal Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      - Output CAN Drive monitor unit signal 0
      • Navigation receiver assembly*5
      • Radio and display receiver assembly*6
      Drive monitor display signal (Current fuel consumption)
      Average fuel consumption (After reset) Displayed Input CAN Engine RPM data signal ECM B
      Fuel consumption signal
      Vehicle speed pulse signal calculated value signal Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      Direct line Reset switch signal Steering pad switch assembly
      - Output CAN Drive monitor unit signal 6
      • Navigation receiver assembly*5
      • Radio and display receiver assembly*6
      Drive monitor display signal (Total average fuel consumption)
      Average fuel consumption (After start) Displayed Input CAN Engine RPM data signal ECM B
      Fuel consumption signal
      Vehicle speed pulse signal calculated value signal Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      Average fuel consumption (After refuel) Displayed Input CAN Engine RPM data signal ECM B
      Fuel consumption signal
      Vehicle speed pulse signal calculated value signal Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      - Output CAN Drive monitor unit signal 3
      • Navigation receiver assembly*5
      • Radio and display receiver assembly*6
      Drive monitor display signal (Average fuel consumption after refuel)
      Average speed (After reset) Displayed Input CAN Engine RPM data signal ECM B
      Vehicle speed pulse signal calculated value signal Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      Average speed (After start) Displayed Input CAN Engine RPM data signal ECM B
      Vehicle speed pulse signal calculated value signal Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      - Output CAN Drive monitor unit signal 1
      • Navigation receiver assembly*5
      • Radio and display receiver assembly*6
      Drive monitor display signal (After starting average speed)
      Elapsed time (After reset) Displayed Input CAN Engine RPM data signal ECM B
      Direct line Reset switch signal Steering pad switch assembly
      Elapsed time (After start) Displayed Input CAN Engine RPM data signal ECM B
      - Output CAN Drive monitor display signal (After starting driving time)
      • Navigation receiver assembly*5
      • Radio and display receiver assembly*6
      Distance (Range) Displayed Input CAN Engine RPM data signal ECM B
      Fuel consumption signal
      Engine type information 1, 2, 3, 4 signal
      Vehicle speed pulse signal calculated value signal Brake actuator assembly (Skid control ECU)
      Direct line Fuel level signal Fuel sender gauge assembly
      - Output CAN Drive monitor unit signal 4
      • Navigation receiver assembly*5
      • Radio and display receiver assembly*6
      Drive monitor display signal (Drivable distance)
      Distance (After start) Displayed Input CAN Engine RPM data signal ECM B
      Vehicle speed pulse signal calculated value signal Brake actuator assembly (Skid control ECU)
      Vehicle speed (SP1) signal
      Eco driving indicator zone*1 Displayed Input CAN Eco-zone indicator level signal ECM B
      Drive information tab Displayed - - - - C
      Navigation tab*5 Displayed Input Local bus Navigation signal Navigation receiver assembly C
      Audio tab*5, *8 Displayed Input Local bus Audio signal
      • Navigation receiver assembly*5
      • Radio and display receiver assembly*8
      		 C
      Driving support tab Displayed Input CAN LDW existence flag signal Forward recognition camera C
      Message tab Displayed - - - - C
      Setting tab Displayed - - - - C
      Phone (Received call)*5, *8 Displayed Input Local bus Phone (Received call) signal
      • Navigation receiver assembly*5
      • Radio and display receiver assembly*8
      		 B
      Turn-by-turn Navigation*5 Displayed Input Local bus Turn-by-turn signal Navigation receiver assembly B
      Sway warning Displayed Input CAN SWS fatigue level display signal Forward recognition camera B
      ADJUSTING FORWARD CAMERA Displayed Input CAN Camera adjustment mode text display signal Forward recognition camera B
      ADJUSTING FRONT RADAR BEAM ERROR Displayed Input CAN FRD adjustment signal Driving support ECU assembly B
      ADJUSTING FRONT RADAR BEAM ALONG VERTICAL AXIS Displayed Input CAN FRD adjustment signal Driving support ECU assembly B
      ADJUSTING FRONT RADAR BEAM ALONG HORIZONTAL AXIS Displayed Input CAN FRD adjustment signal Driving support ECU assembly B
      ADJUSTING FRONT RADAR BEAM Displayed Input CAN FRD adjustment signal Driving support ECU assembly B
      CHECKING PCS BRAKE Displayed Input CAN Inspection mode signal Driving support ECU assembly B
      CHECKING CRUISE CONTROL BRAKE Displayed Input CAN Inspection mode for ACC signal Driving support ECU assembly B
      BRAKE! Displayed Input CAN PCS warning message signal Driving support ECU assembly B
      Dynamic radar cruise control reminder indicator (image display) Displayed Input CAN ACC ASL display ID2 signal ECM B
      Lane departure alert reminder indicator (image display) Displayed Input CAN White line symbol left side signal Forward recognition camera B
      White line symbol right side signal
      Steering wheel symbol signal
      Each door open (vehicle being driven) (image display) Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) B
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Luggage compartment door courtesy switch signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Each door open (vehicle stopped, ignition switch to ON) (image display) Displayed Input CAN Driver door open display signal*9 Certification ECU (Smart key ECU assembly) B
      Front passenger door open display signal*9
      Rear right open display signal*9
      Rear left open display signal*9
      Driver door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Luggage compartment door courtesy switch signal
      Power Turned OFF to Save Battery*9 Displayed Input CAN Message request for push start signal Certification ECU (Smart key ECU assembly) B
      Shift to P Before Exiting Vehicle*9 Displayed Input CAN Message request for push start signal Certification ECU (Smart key ECU assembly) B
      Smart system warning 2 signal
      Release Parking Brake Displayed Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU) B
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Key not detected Check Key Location*9 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      LDA Hold Steering Wheel Displayed Input CAN Hands free caution text display signal Forward recognition camera B
      LDA Steering Assist Unavailable Hold Steering Wheel Displayed Input CAN Hands free caution text display signal Forward recognition camera B
      Charging System Malfunction Displayed Input CAN Charge light indicator signal*13 ECM B
      Starter B signal*13
      Direct line Charge L terminal signal*7 Generator assembly
      Radar Cruise Control Unavailable Clean Sensor Displayed Input CAN ACC ASL display ID2 signal ECM B
      Radar Cruise Control Unavailable Displayed Input CAN ACC ASL display ID2 signal ECM B
      Smart Key System Malfunction *9 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      Cruise Control Malfunction Visit Your Dealer Displayed Input CAN ACC ASL display ID2 signal ECM B
      Lane Departure Alert Malfunction Visit Your Dealer Displayed Input CAN Fault condition text display signal Forward recognition camera B
      Front Camera Unavailable Displayed Input CAN Temporary unusable condition text display signal Forward recognition camera B
      PCS temperature message (Camera) signal Driving support ECU assembly
      Lane Departure Alert Unavailable Displayed Input CAN Steering assist unusable text display signal Forward recognition camera B
      Lane Departure Alert Turned On Steering Assist active Displayed Input CAN LKA mode text display signal Forward recognition camera B
      Lane Departure Alert Turned On Steering Assist Inactive Displayed Input CAN LKA mode text display signal Forward recognition camera B
      Front Camera Unavailable Remove Debris On Windshield Displayed Input CAN Front camera vision blocked signal Forward recognition camera B
      PCS dust message (Camera) signal Driving support ECU assembly
      Pre-Collision System Malfunction Visit Your Dealer Displayed Input CAN PCS fault condition text display signal Driving support ECU assembly B
      Oil Pressure Low Stop in a Safe Place Displayed Input CAN Engine RPM data signal ECM B
      Direct line Engine oil pressure signal Engine oil pressure switch assembly
      Lane Departure Alert Unavailable Below Approx 50km/h Displayed Input CAN Speed condition failure text display signal Forward recognition camera B
      Lane Departure Alert Unavailable Below Approx 32MPH Displayed Input CAN Speed condition failure text display signal Forward recognition camera B
      Lane Departure Alert Unavailable at Current Speed Displayed Input CAN Speed condition failure text display signal Forward recognition camera B
      Turn Off Vehicle*9 Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) B
      Message request for push start signal
      Would You Like To Take a Break? Displayed Input CAN SWS rest advisory display signal Forward recognition camera B
      Please Take a Break Displayed Input CAN SWS rest advisory display signal Forward recognition camera B
      Key Left inside Vehicle*9 Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly) B
      Turn Lights Off Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) B
      Taillight request signal
      Moon Roof Open Displayed Input CAN Slide roof open warning request signal Main body ECU (Multiplex network body ECU) B
      Depress Brake and Then Touch Key to Engine Switch*1, *9 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      Depress Clutch and Then Touch Key to Engine Switch*9, *10 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      Depress Brake and Then Start Engine*1, *9 Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly) B
      Message request for push start signal
      Depress Clutch and Then Start Engine*9 *10 Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly) B
      Message request for push start signal
      Shift to P position to Start*9 Displayed Input CAN Message request for push start signal Certification ECU (Smart key ECU assembly) B
      Steering Lock Active*9 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      Key Battery Low*9 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      Headlight System Malfunction Visit Your Dealer Displayed Input CAN Smart beam indicator signal Main body ECU (Multiplex network body ECU) B
      Windshield Washer Fluid Low*11 Displayed Input Direct line Washer fluid level signal Level warning switch assembly B
      Fuel Low Displayed Input Direct line Fuel level signal Fuel sender gauge assembly B
      Traction Control Turned Off Displayed Input CAN TRC OFF light signal Brake actuator assembly (Skid control ECU) B
      Maintenance Required Soon*12 Displayed Input CAN Starter signal ECM B
      Maintenance Required Visit Your Dealer*12 Displayed Input CAN Starter signal ECM B
      Resetting Maintenance Data*12 Displayed - - - - B
      Resetting of Maintenance Data Incomplete*12 Displayed - - - - B
      Power On*9 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      Smart key symbol (image display)*9 Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) B
      VSC Turned Off Pre-Collision Brake System Unavailable Displayed Input CAN PB temporary unusable condition text display signal Driving support ECU assembly B
      VSC OFF light signal Brake actuator assembly (Skid control ECU)
      Pre-Collision System Unavailable Displayed Input CAN PCS temporary unusable condition text display signal Driving support ECU assembly B
      PCS temperature message (Radar) signal
      Pre-Collision System Unavailable Clean Radar Sensor Displayed Input CAN PCS dust message (Radar) signal Driving support ECU assembly B
      Pre-Collision System Off Displayed Input CAN PCS warning message signal Driving support ECU assembly B
      PCS warning distance unusable condition text display signal
      PCS distance warning signal
      PCS ped warning signal
      PCS preceding vehicle start notification signal
      Each door open (vehicle stopped, ignition switch off) (image display)
      ignition switch off) (image display)      		 Displayed Input CAN Driver door open display signal*9 Certification ECU (Smart key ECU assembly) B
      Front passenger door open display signal*9
      Rear right open display signal*9
      Rear left open display signal*9
      Driver door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Luggage compartment door courtesy switch signal
      • *1: for CVT
      • *2: for CVT without Sport Switch
      • *3: for CVT with Sport Switch
      • *4: w/ ECO MODE switch
      • *5: for Navigation Receiver Type
      • *6: for Radio and Display Type
      • *7: w/o Battery Current Sensor
      • *8: for Radio and Display Type with "APPS" Switch
      • *9: w/ Smart Key System
      • *10: for Manual Transaxle
      • *11: w/ Washer Fluid Level Warning
      • *12: for Speedometer with Imperial Units for Main Scale
      • *13: w/ Battery Current Sensor
    6. Buzzer
      Item Condition Input/Output CAN/Direct line Signal Component
      Seat belt warning buzzer (for Driver side) Sounds once / Sounds intermittently / Sounds intermittently (Maximum 5 times) Input CAN Driver seat belt buckle switch signal Main body ECU (Multiplex network body ECU)
      Parking brake switch signal
      Shift position R signal ECM
      Shift position P signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Seat belt warning buzzer (for Front passenger side) Sounds once / Sounds intermittently Input CAN Front passenger seat belt buckle switch signal Airbag sensor assembly
      Front passenger seat occupant status signal
      Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Shift position R signal ECM
      Shift position P signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Seat belt warning buzzer (for Rear seat)*8 Sounds intermittently Input CAN Shift position P signal ECM
      Shift position R signal
      Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Direct line Rear right seat belt buckle switch signal Rear seat inner with center belt assembly RH
      Rear left seat belt buckle switch signal Rear seat inner with center belt assembly LH
      Rear center seat belt buckle switch signal
      Low speed range of the vehicle in front buzzer*6 Sounds four times Input CAN Low speed zone leading vehicle lost buzzer signal ECM
      Radar cruise control low speed cancel buzzer*6 Sounds twice Input CAN Low speed cancel buzzer request signal ECM
      Lane departure alert cancel buzzer*7 Sounds twice Input CAN Lane departure alert cancel buzzer signal Forward recognition camera
      EPS warning buzzer Sounds once Input CAN Demand signal to meter Power steering ECU assembly
      Lane departure alert warning buzzer*7 Sounds intermittently Input CAN LDW buzzer signal Forward recognition camera
      Lane departure alert hands-free caution buzzer*7 Sounds intermittently Input CAN Hands-free caution text display signal Forward recognition camera
      Smart key warning buzzer*1 Sounds continuously Input CAN Meter buzzer continuation request signal Certification ECU (Smart key ECU assembly)
      Sounds intermittently Input CAN Meter buzzer intermittence request signal
      Sounds intermittently (Maximum 9 times) Input CAN Meter buzzer intermittence request (0.7 sec. cycle) signal
      Sounds once Input CAN Meter buzzer single-shot request signal
      Key reminder buzzer*5 Sounds intermittently Input CAN Key switch signal Main body ECU (Multiplex network body ECU)
      Driver door courtesy switch signal
      Multi-information display warning buzzer*2 Sounds once Input CAN/Direct line Multi-information display warning signal Related ECUs
      Sway warning buzzer*7 Sounds twice Input CAN SWS buzzer request signal Forward recognition camera
      Immobiliser key identification completion buzzer Sounds once Input CAN Immobiliser key identification completion signal Certification ECU (Smart key ECU assembly)
      Driving with parking brake unreleased warning buzzer Sounds intermittently Input CAN Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Driving with door open warning buzzer Sounds intermittently Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Front passenger door courtesy switch signal
      Rear right courtesy switch signal
      Rear left courtesy switch signal
      Luggage door courtesy switch signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Sports shift reject buzzer*3 Sounds twice Input CAN Reject buzzer signal ECM
      Light reminder buzzer Sounds continuously Input CAN Lighting system state signal Main body ECU (Multiplex network body ECU)
      Driver door courtesy switch signal
      Sliding roof open warning buzzer*4 Sounds once Input CAN Sliding roof open warning request signal Main body ECU (Multiplex network body ECU)
      Turn signal flasher buzzer Sounds intermittently Input CAN Flasher request signal Main body ECU (Multiplex network body ECU)
      Direct line LH turn signal switch signal Headlight dimmer switch assembly
      RH turn signal switch signal
      Hazard warning signal switch signal Hazard warning signal switch assembly
      • *1: w/ Smart Key System
      • *2: for Multi-information Display (Dot LCD Type and Color Type)
      • *3: for CVT with Sport Switch
      • *4: w/ Sliding Roof System
      • *5: w/o Smart Key System
      • *6: w/ Dynamic Radar Cruise Control System
      • *7: w/ Lane Departure Alert System (w/ Steering Control)
      • *8: w/ Rear Seat Belt Warning
    7. Others
      Item Condition Input/Output CAN/Direct line Signal Component
      Meter illumination Illumination level Input CAN Taillight request signal*1 Main body ECU (Multiplex network body ECU)
      Direct line Illumination level signal
      • Light control rheostat*2
      • ODO/TRIP switch (Combination meter assembly)*3
      • Steering pad switch assembly*4
      Tail cancel signal*2 Light control rheostat
      - Output CAN Rheostat duty signal*5 Certification ECU (Smart key ECU assembly)
      Tail cancel signal Main body ECU (Multiplex network body ECU)
      Direct line Illumination level signal Related ECUs
      Rear seat belt warning light*6 - Input CAN Rear right door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Rear left door courtesy switch signal
      Door lock output factor signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Direct line Rear right seat belt buckle switch signal Rear seat inner with center belt assembly RH
      Rear left seat belt buckle switch signal Rear seat inner with center belt assembly LH
      Rear center seat belt buckle switch signal
      Comes on Output Direct line Rear right seat belt buckle switch signal Telltale light assembly
      Rear left seat belt buckle switch signal
      Rear center seat belt buckle switch signal
      • *1: w/ Automatic Light Control
      • *2: w/ Light Control Rheostat
      • *3: w/o Light Control Rheostat
      • *4: for Multi-information Display (Color Type)
      • *5: w/ Smart Key System
      • *6: w/ Rear Seat Belt Warning

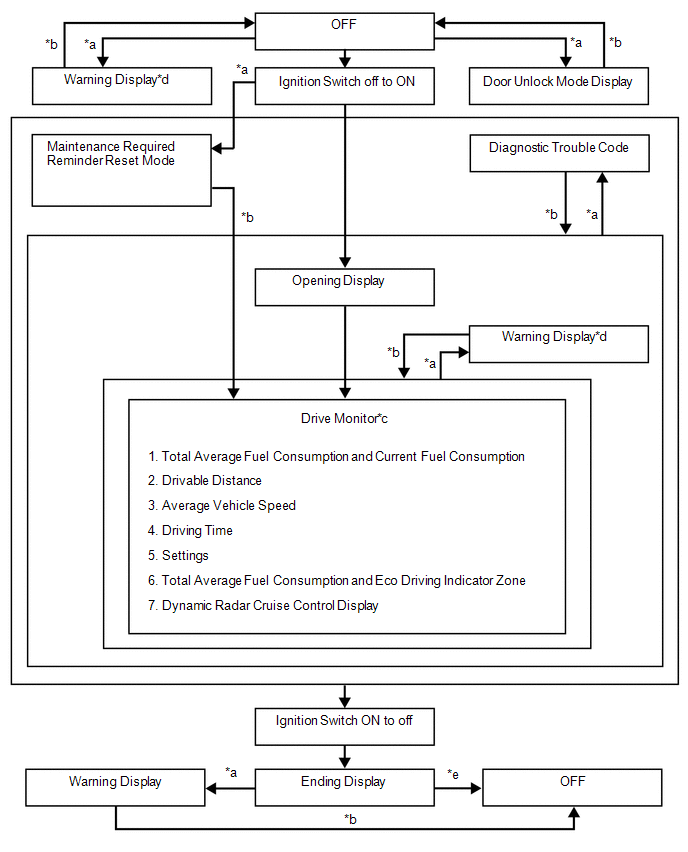

  3. MULTI-INFORMATION DISPLAY (DOT LCD TYPE) FLOW CHART
    1. Multi-information display (Dot LCD type) flow chart
      GTY690421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      DISPLAY CHANGE CONDITION

      Item Display Change Condition
      *a Conditions are met
      *b Conditions are not met
      *c Item or display is selected by operating the steering pad switch
      *d If there are multiple display requests, items will be displayed in sequence
      *e ODO display is displayed for a certain period of time after the ignition switch is turned off

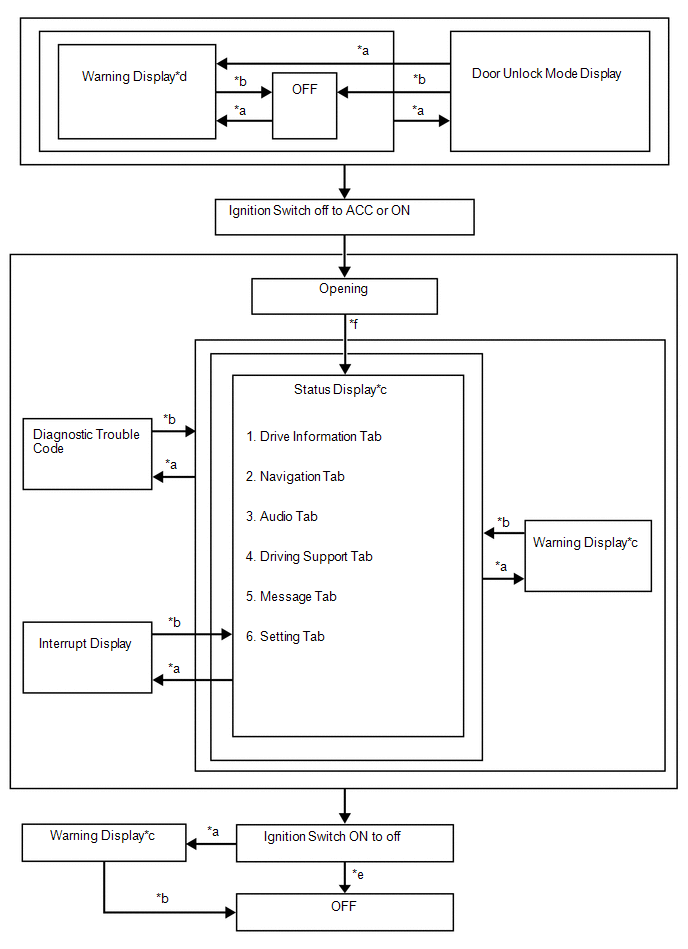

    2. Multi-information display (Color type) flow chart
      GTY693275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      DISPLAY CHANGE CONDITION

      Item Display Change Condition
      *a Conditions are met.
      *b Conditions are not met.
      *c Item or display is selected by operating the steering pad switch.
      *d If there are multiple display requests, items will be displayed in sequence.
      *e Odometer display is displayed for a certain period of time after the ignition switch is turned off.
      *f After ignition switch is turned to ON.
  4. DESCRIPTION OF WARNING DISPLAYS
    1. for Multi-information display (Dot LCD type)
      Priority System name/(Vehicle Function) Master Warning Light
      •: Comes on
      ◦: Blinks      		 Buzzer (*1) Display Level
      1 Lane departure alert system (w/ Steering Control) - - ADJUSTING FORWARD CAMERA Caution
      Pre-collision system - - ADJUSTING FRONT RADAR BEAM ERROR Caution
      - - ADJUSTING FRONT RADAR BEAM ALONG VERTICAL AXIS Caution
      - - ADJUSTING FRONT RADAR BEAM ALONG HORIZONTAL AXIS Caution
      - - ADJUSTING FRONT RADAR BEAM Caution
      - - CHECKING PCS BRAKE Caution
      Dynamic radar cruise control system - - CHECKING CRUISE CONTROL BRAKE Caution
      Pre-collision system - - BRAKE! Warning
      2 Dynamic radar cruise control system - - Dynamic radar cruise control reminder indicator (image display) Warning
      Lane departure alert system (w/ Steering Control) - - Lane departure alert reminder indicator (image display) Warning
      3 (Each door warning (vehicle being driven)) - * Each door open (image display) Caution
      (Each door warning (vehicle stopped)) - - Each door open (image display) Caution
      4 Smart key system - - AUTO POWER OFF TO CONSERVE BATTERY Caution
      5 Smart key system ◦ */◦ SHIFT TO P POSITION Caution
      6 (Parking brake) ◦ * RELEASE PARKING BRAKE Caution
      Smart key system ◦ * KEY NOT DETECTED Caution
      7 Lane departure alert system (w/ Steering Control) • ◦ LDA HOLD STEERING WHEEL Caution
      • - LDA STEERING ASSIST UNAVAILABLE HOLD STEERING WHEEL Caution
      8 Charging system - - Charge warning (Battery symbol) Caution
      Dynamic radar cruise control system • ◦ RADAR CRUISE CONTROL UNAVAILABLE CLEAN SENSOR Caution
      • ◦ RADAR CRUISE CONTROL UNAVAILABLE Caution
      Smart key system ◦ * CHECK SMART KEY SYSTEM Caution
      Cruise control system/Dynamic radar cruise control system • ◦ CHECK CRUISE CONTROL SYSTEM Caution
      Lane departure alert system (w/ Steering Control) • ◦ LANE DEPARTURE ALERT MALFUNCTION VISIT YOUR DEALER Caution
      Pre-collision system - - FRONT CAMERA UNAVAILABLE Caution
      Lane departure alert system (w/ Steering Control) • ◦ LANE DEPARTURE ALERT UNAVAILABLE Caution
      - - LANE DEPARTURE ALERT TURNED ON STEERING ASSIST ACTIVE Advisory
      - - LANE DEPARTURE ALERT TURNED ON STEERING ASSIST INACTIVE Advisory
      Pre-collision system - - FRONT CAMERA UNAVAILABLE REMOVE DEBRIS ON WINDSHIELD Caution
      • ◦ PRE-COLLISION SYSTEM MALFUNCTION VISIT YOUR DEALER Caution
      (Engine oil pressure switch) - ◦ ENGINE OIL PRESSURE LOW Caution
      Lane departure alert system (w/ Steering Control) - - LANE DEPARTURE ALERT UNAVAILABLE BELOW APPROX 50KM/H Advisory
      - - LANE DEPARTURE ALERT UNAVAILABLE BELOW APPROX 32MPH Advisory
      - - LANE DEPARTURE ALERT UNAVAILABLE AT CURRENT SPEED Advisory
      9 Smart key system ◦ */◦ TURN POWER OFF Caution
      Lane departure alert system (w/ Steering Control) - * WOULD YOU LIKE TO TAKE A BREAK? Advisory
      - * PLEASE TAKE A BREAK Advisory
      Smart key system - * KEY DETECTED IN VEHICLE Caution
      Lighting system ◦ * TURN LIGHTS OFF Caution
      Sliding roof system ◦ ◦ MOON ROOF OPEN Caution
      Smart key system ◦ * DEPRESS BRAKE PEDAL, TOUCH ENGINE SWITCH WITH KEY Caution
      ◦ * DEPRESS CLUTCH PEDAL, TOUCH ENGINE SWITCH WITH KEY Caution
      ◦ */◦ DEPRESS BRAKE PEDAL AND PUSH ENGINE SWITCH TO START Caution
      ◦ */◦ DEPRESS CLUTCH PEDAL AND PUSH ENGINE SWITCH TO START Caution
      ◦ ◦ SHIFT TO P POSITION TO START Caution
      10 Steering lock system ◦ * STEERING LOCK ACTIVE Caution
      11 Smart key system • * KEY BATTERY LOW Caution
      Automatic high beam system • ◦ HEADLIGHT SYSTEM MALFUNCTION VISIT YOUR DEALER Caution
      12 (Washer level warning switch) - - LOW WASHER FLUID Advisory
      Meter / gauge system - - MAINTENANCE REQUIRED SOON Advisory
      - - MAINTENANCE REQUIRED Advisory
      - - RESETTING MAINTENANCE DATA Advisory
      - - RESETTING OF MAINTENANCE DATA INCOMPLETE Advisory
      Smart key system - - POWER ON Caution
      - - Smart key symbol (image display) Caution
      Pre-collision system - - VSC TURNED OFF PRE-COLLISION BRAKE SYSTEM UNAVAILABLE Advisory
      - - PRE-COLLISION SYSTEM UNAVAILABLE Advisory
      - - PRE-COLLISION SYSTEM UNAVAILABLE CLEAN SENSOR Advisory
      - - PRE-COLLISION SYSTEM OFF Advisory
      • *: An exclusive buzzer sounds depending on condition
      • *1: Buzzers that are linked with the master warning light
    2. for Multi-information display (Color type)
      Priority System name/(Vehicle Function) Master Warning Light
      •: Comes on
      ◦: Blinks      		 Buzzer (*1) Display Level
      1 Lane departure alert system (w/ Steering Control) - - ADJUSTING FORWARD CAMERA Caution
      Pre-collision system - - ADJUSTING FRONT RADAR BEAM ERROR Caution
      - - ADJUSTING FRONT RADAR BEAM ALONG VERTICAL AXIS Caution
      - - ADJUSTING FRONT RADAR BEAM ALONG HORIZONTAL AXIS Caution
      - - ADJUSTING FRONT RADAR BEAM Caution
      - - CHECKING PCS BRAKE Caution
      Dynamic radar cruise control system - - CHECKING CRUISE CONTROL BRAKE Caution
      Pre-collision system - - BRAKE! Warning
      2 Dynamic radar cruise control system - - Dynamic radar cruise control reminder indicator (image display) Warning
      Lane departure alert system (w/ Steering Control) -   Lane departure alert reminder indicator (image display) Warning
      3 (Each door warning (vehicle being driven)) ◦ * Each door open (vehicle being driven) (image display) Caution
      (Each door warning (vehicle stopped, ignition switch ON)) - - Each door open (vehicle stopped, ignition switch ON) (image display) Caution
      4 Smart key system - - Power Turned Off to Save Battery Caution
      5 Smart key system ◦ */◦ Shift to P Before Exiting Vehicle Caution
      6 (Parking brake) ◦ * Release Parking Brake Caution
      Smart key system ◦ * Key Not Detected Check Key Location Caution
      7 Lane departure alert system (w/ Steering Control) • ◦ LDA Hold Steering Wheel Caution
      • * LDA Steering Assist Unavailable Hold Steering Wheel Caution
      8 Charging system - - Charging System Malfunction Caution
      Dynamic radar cruise control system • ◦ Radar Cruise Control Unavailable Clean Sensor Caution
      • ◦ Radar Cruise Control Unavailable Caution
      Smart key system ◦ * Smart Key System Malfunction Caution
      Dynamic radar cruise control system • ◦ Cruise Control Malfunction Visit Your Dealer Caution
      Lane departure alert system (w/ Steering Control) • ◦ Lane Departure Alert Malfunction Visit Your Dealer Caution
      Pre-collision system - - Front Camera Unavailable Caution
      Lane departure alert system (w/ Steering Control) • ◦ Lane Departure Alert Unavailable Caution
      - - Lane Departure Alert Turned On Steering Assist active Advisory
      - - Lane Departure Alert Turned On Steering Assist Inactive Advisory
      Pre-collision system - - Front Camera Unavailable Remove Debris On Windshield Caution
      • ◦ Pre-Collision System Malfunction Visit Your Dealer Caution
      (Engine oil pressure switch) • ◦ Oil Pressure Low Stop in a Safe Place Caution
      Lane departure alert system (w/ Steering Control) - - Lane Departure Alert Unavailable Below Approx 50km/h Advisory
      - - Lane Departure Alert Unavailable Below Approx 32MPH Advisory
      - - Lane Departure Alert Unavailable at Current Speed Advisory
      9 Smart key system ◦ */◦ Turn Off Vehicle Caution
      Lane departure alert system (w/ Steering Control) - * Would You Like To Take a Break? Advisory
      - * Please Take a Break Advisory
      Smart key system ◦ ◦ Key Left inside Vehicle Caution
      (Light reminder) ◦ * Turn Lights Off Caution
      Sliding roof system ◦ ◦ Moon Roof Open Caution
      Smart Key system ◦ * Depress Brake and Then Touch Key to Engine Switch Caution
      ◦ * Depress Clutch and Then Touch Key to Engine Switch Caution
      ◦ */◦ Depress Brake and Then Start Engine Caution
      ◦ */◦ Depress Clutch and Then Start Engine Caution
      ◦ ◦ Shift to P position to Start Caution
      10 Steering lock system ◦ * Steering Lock Active Caution
      11 Smart key system • * Key Battery Low Caution
      Automatic high beam system • ◦ Headlight System Malfunction Visit Your Dealer Caution
      12 (Washer level warning switch) - - Windshield Washer Fluid Low Advisory
      (Fuel level warning) - - Fuel Low Advisory
      Vehicle stability control system - - Traction Control Turned Off Caution
      Meter / gauge system - - Maintenance Required Soon Advisory
      - - Maintenance Required Visit Your Dealer Advisory
      - - Resetting Maintenance Data Advisory
      - - Resetting of Maintenance Data Incomplete Advisory
      Smart key system - - Power On Caution
      - - Smart key Symbol (image display) Caution
      Pre-collision system - - VSC Turned Off Pre-Collision Brake System Unavailable Advisory
      - - Pre-Collision System Unavailable Advisory
      - - Pre-Collision System Unavailable Clean Radar Sensor Advisory
      - - Pre-Collision System Off Advisory
      (Each door open (vehicle stopped, ignition switch off)) - - Each door open (vehicle stopped, ignition switch off) (image display) Caution
      • *: An exclusive buzzer sounds depending on condition
      • *1: Buzzers that are linked with the master warning light
scientia non olet · About LEMON Manuals
