DTC C1A4B: Stop Light Relay Circuit [08/2015 - ]: Wiring Diagram

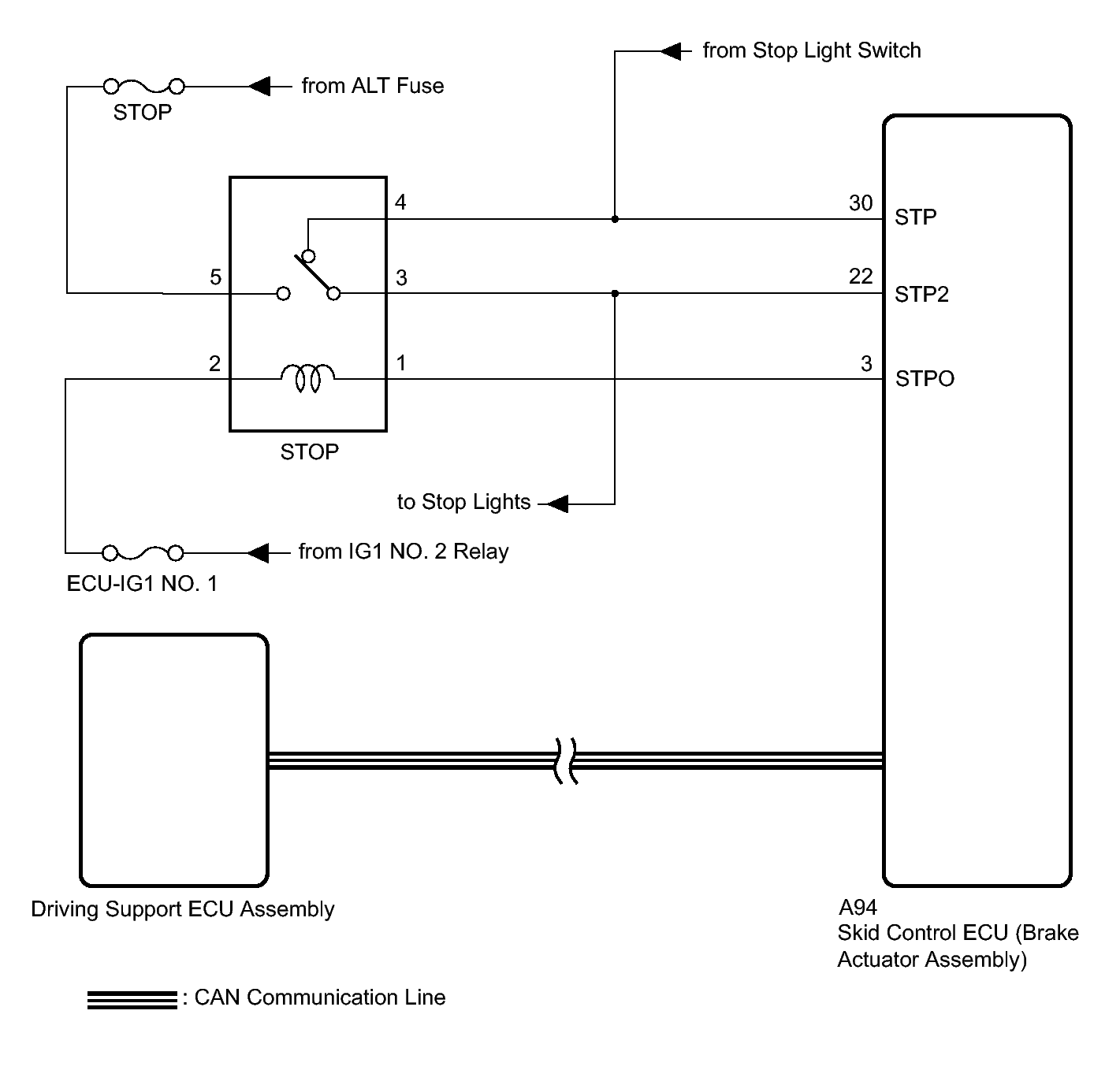

Fig 1: Stop Light Relay Wiring Diagram

GTY474662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
