Transmission Control Switch Circuit [08/2015 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

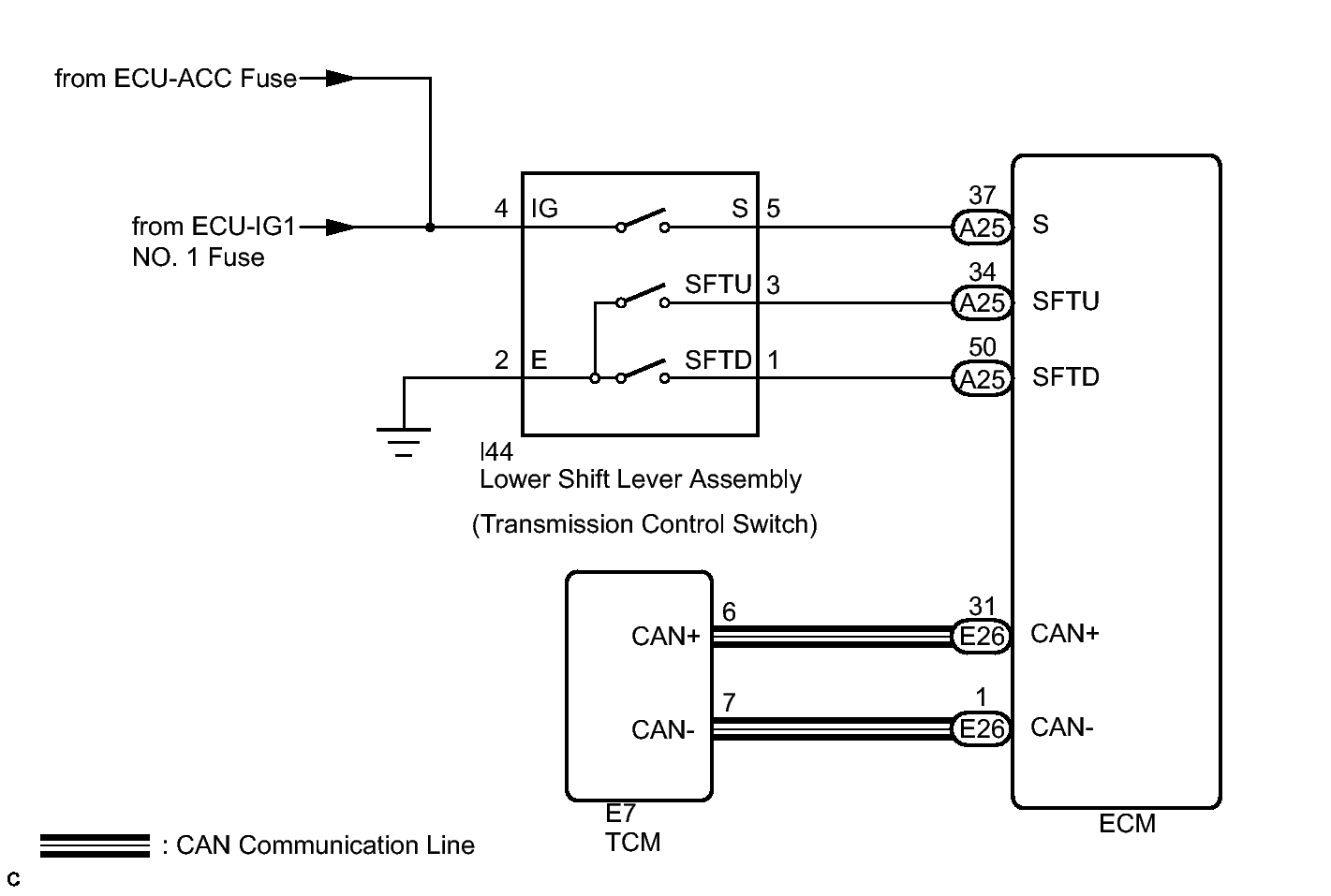

Fig 1: ECM, TCM And Transmission Control Switch Wiring Diagram
GTY481897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
