Position Of Parts In Engine Compartment (2GR-FE)
>>
Notes
Position Of Parts In Engine Compartment (2GR-FE): Notes

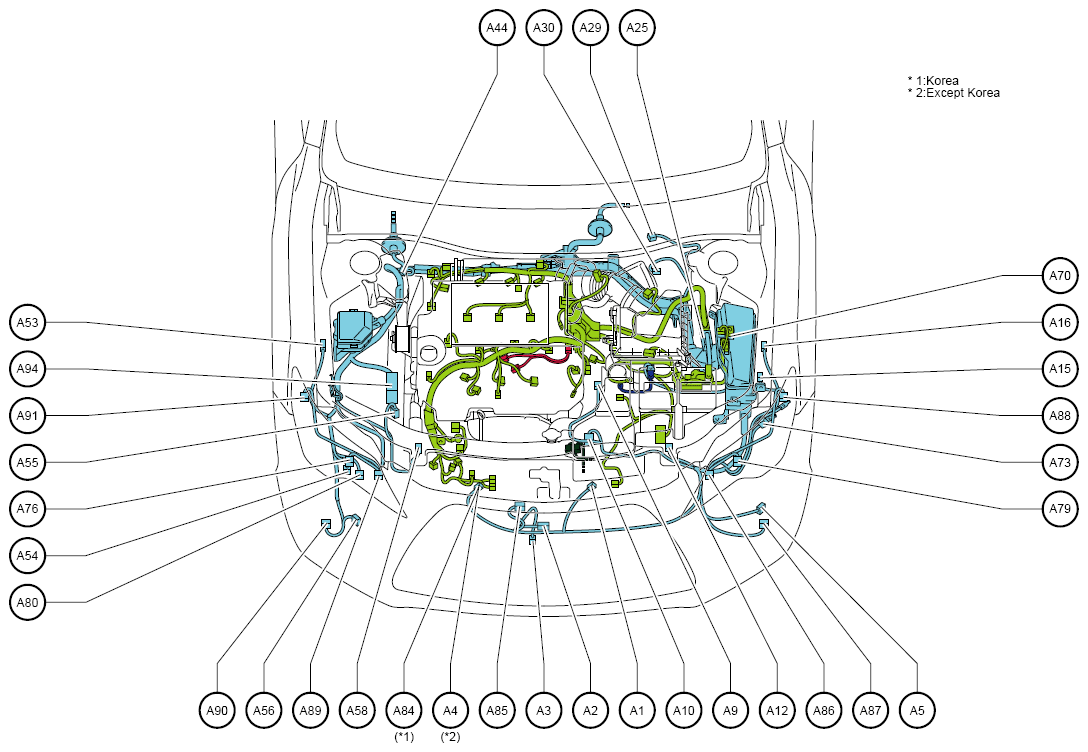

Fig 1: Position Of Parts In Engine Compartment (2GR-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
