Home >> Toyota >> 2017 >> Camry LE >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Electrical Harness/Wiring Routing (Except Hybrid) >> Position Of Parts In Body >> Notes

Position Of Parts In Body: Notes

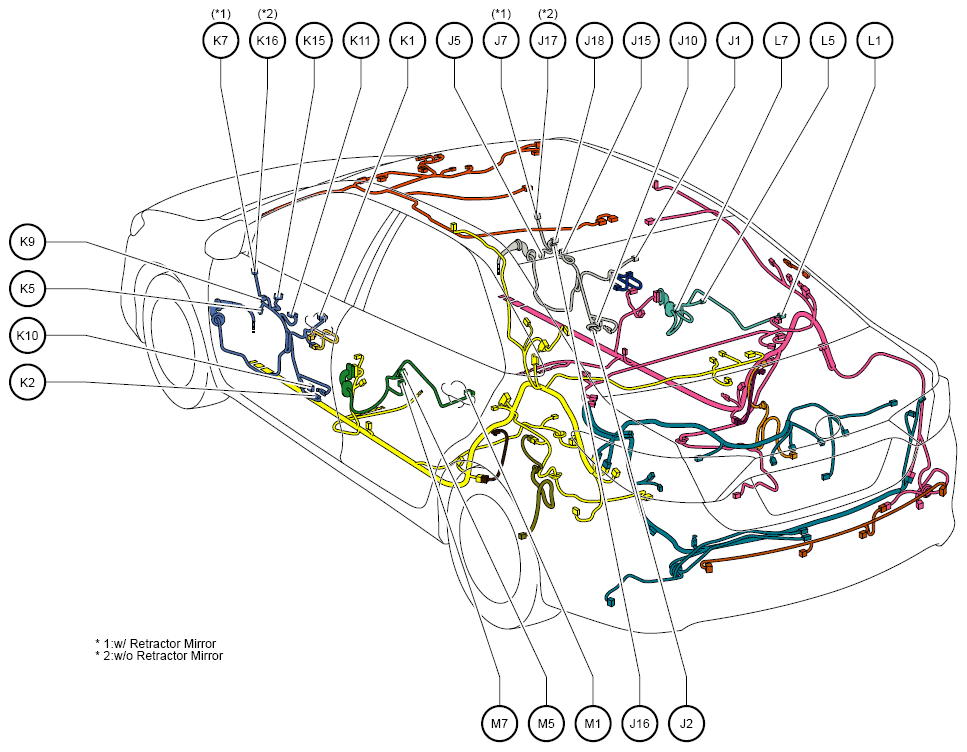

Fig 1: Position Of Parts In Body

G12194612

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
