OEM Overall Electrical Wiring Diagram (Except Hybrid)
>>
Overall Electrical Wiring Diagram
>>
Power Source

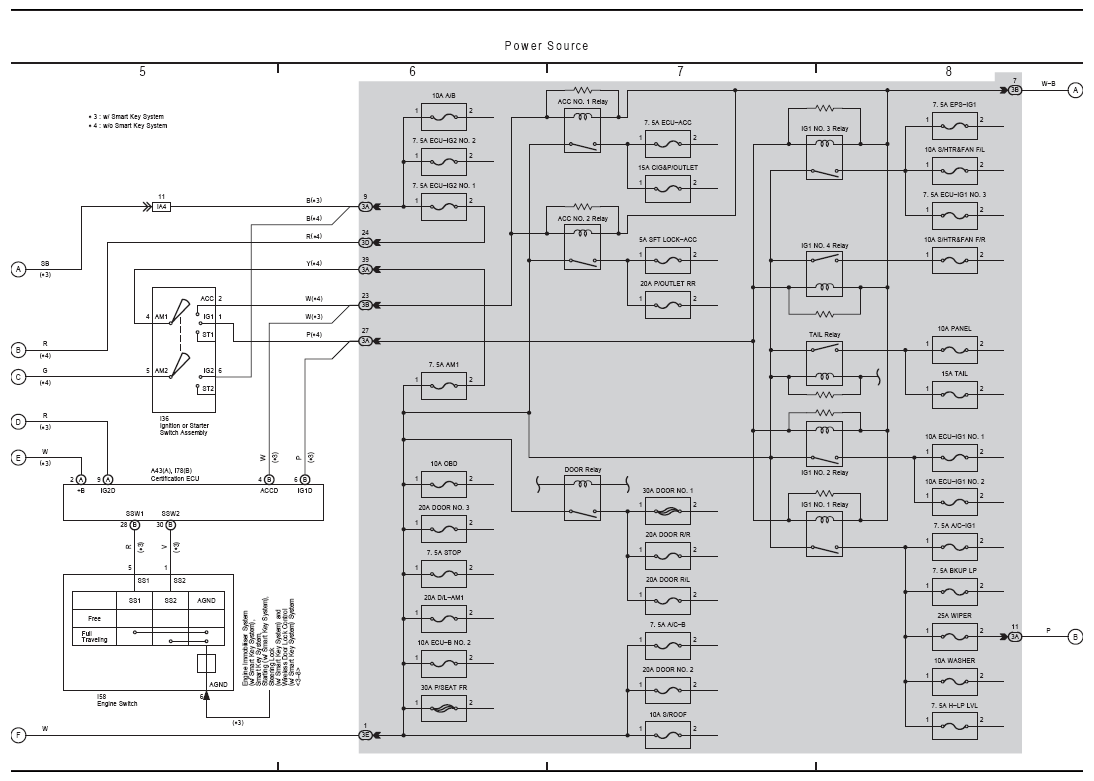

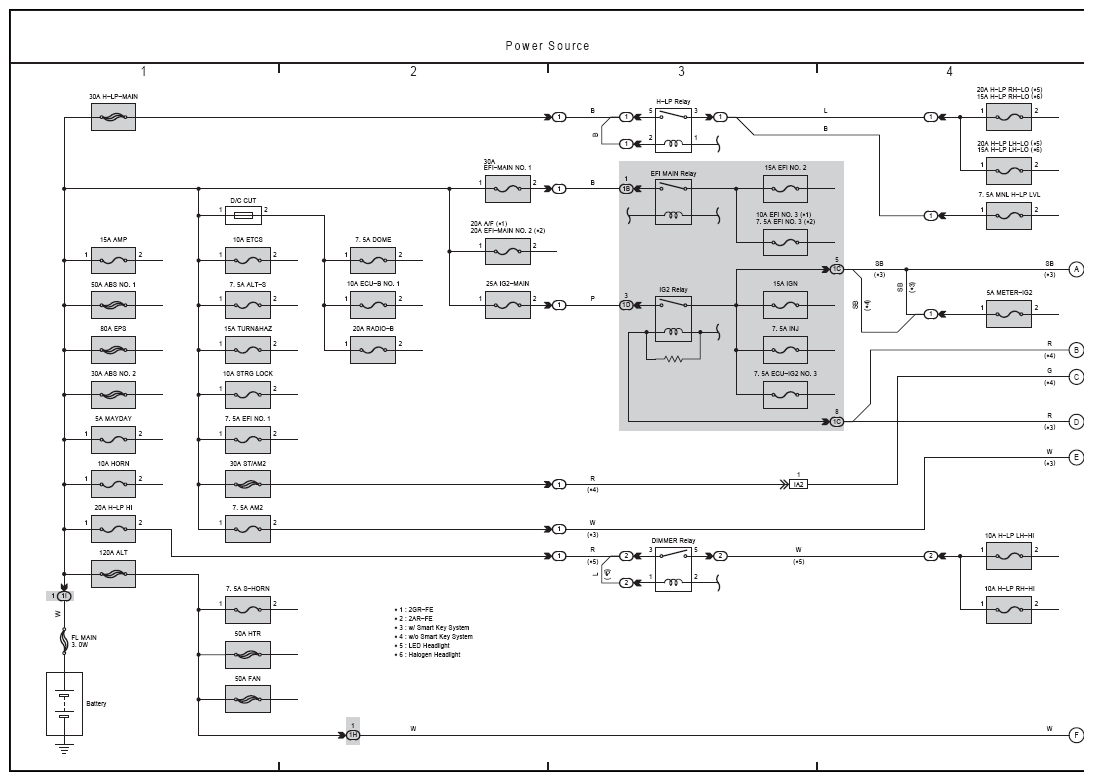

Power Source
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
