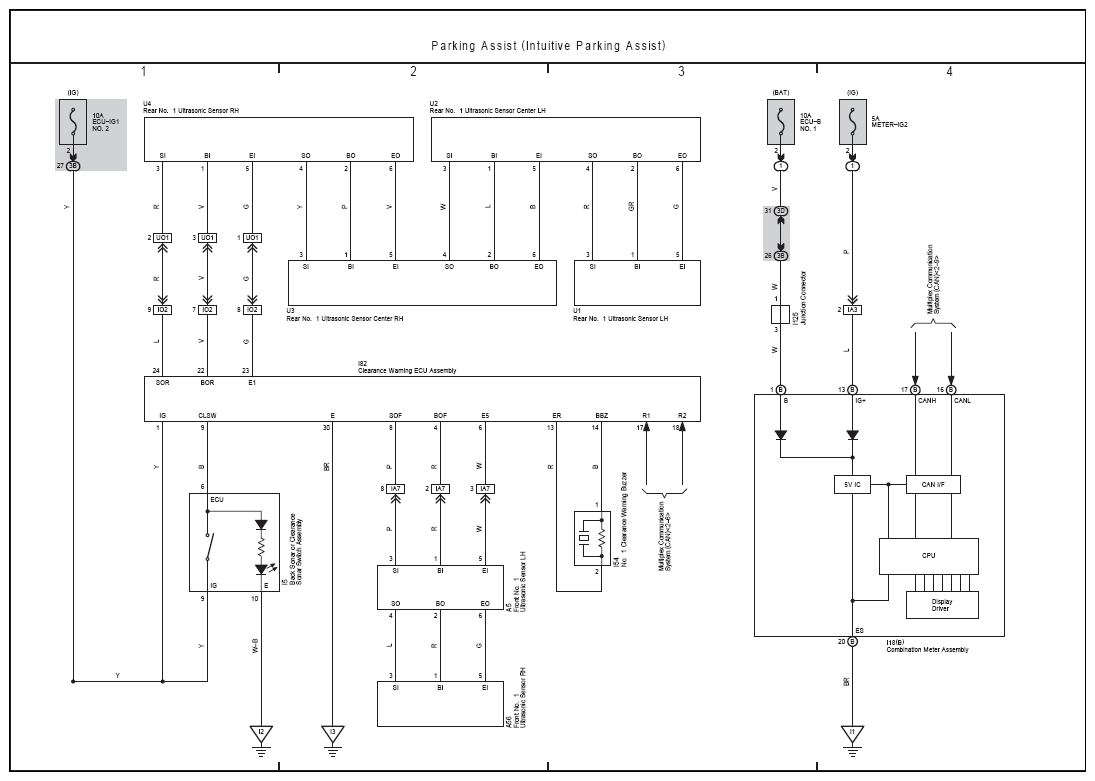

Parking Assist (Intuitive Parking Assist)

G12194393

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
