Multiplex Communication System (CAN)

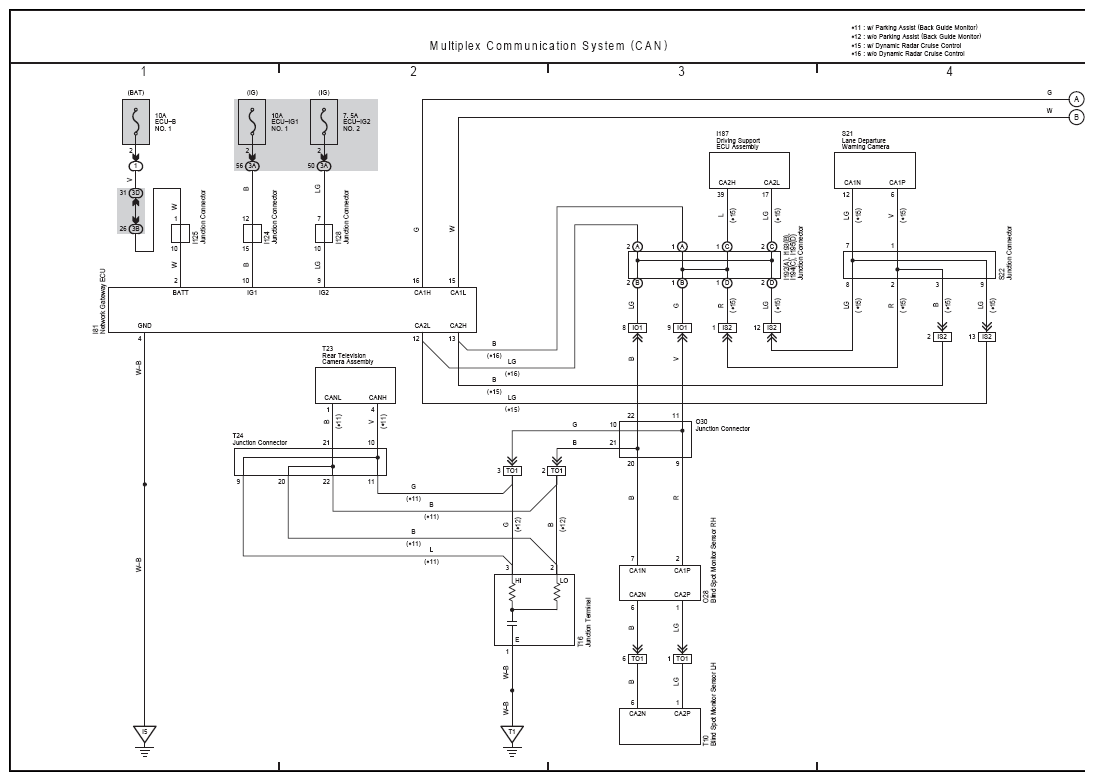

G12194371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

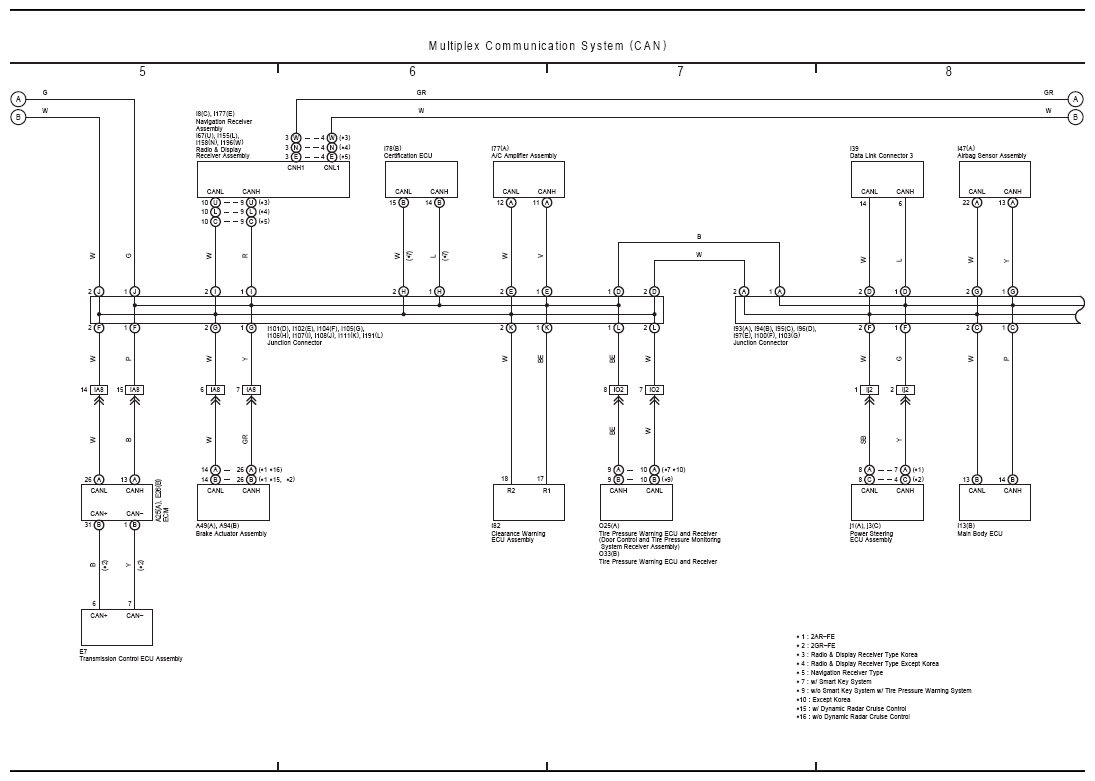

G12194372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
G12194373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
