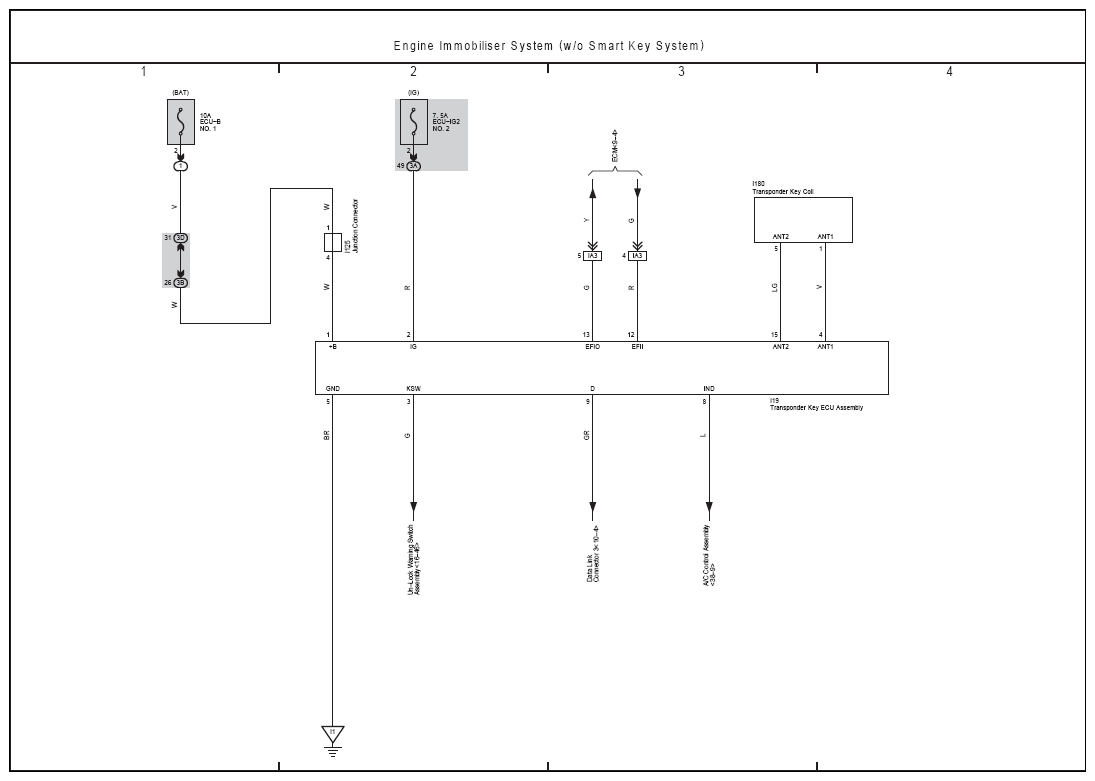

Engine Immobiliser System (W/O Smart Key System)

G12194346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
