Engine Control (2GR-FE), Cruise Control Or Dynamic Radar Cruise Control (2GR-FE), Electronically Controlled Transmission And A/T Indicator (2GR-FE)

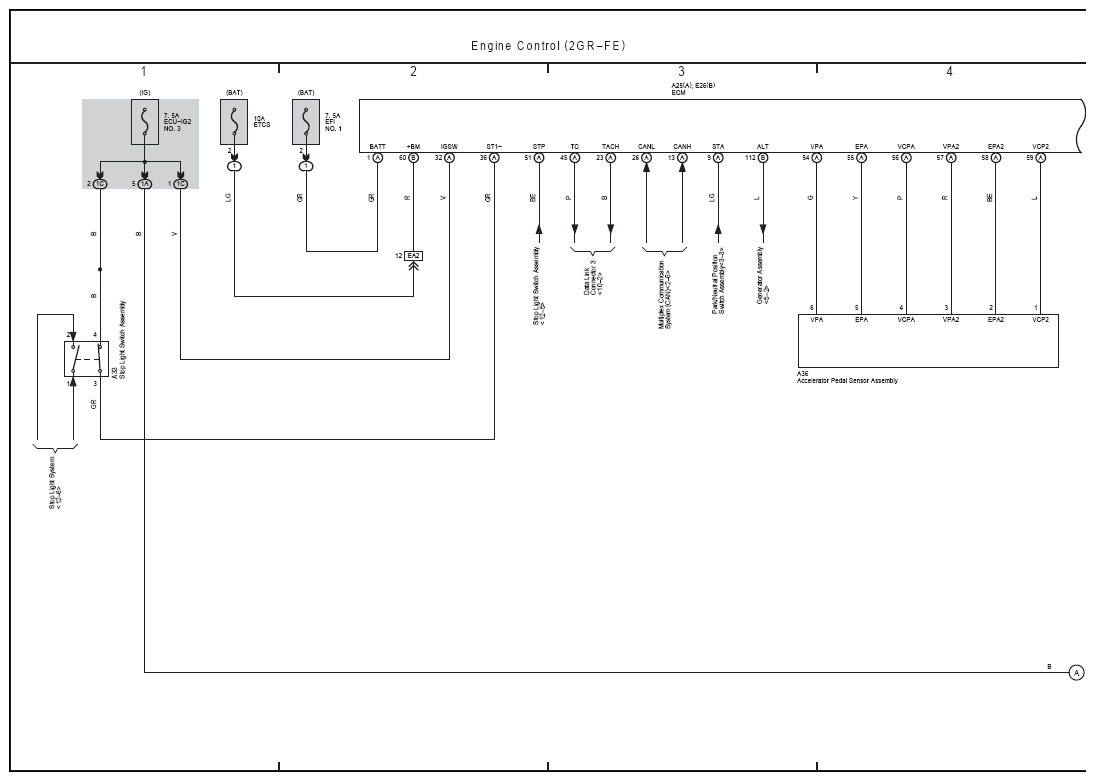

G12194416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

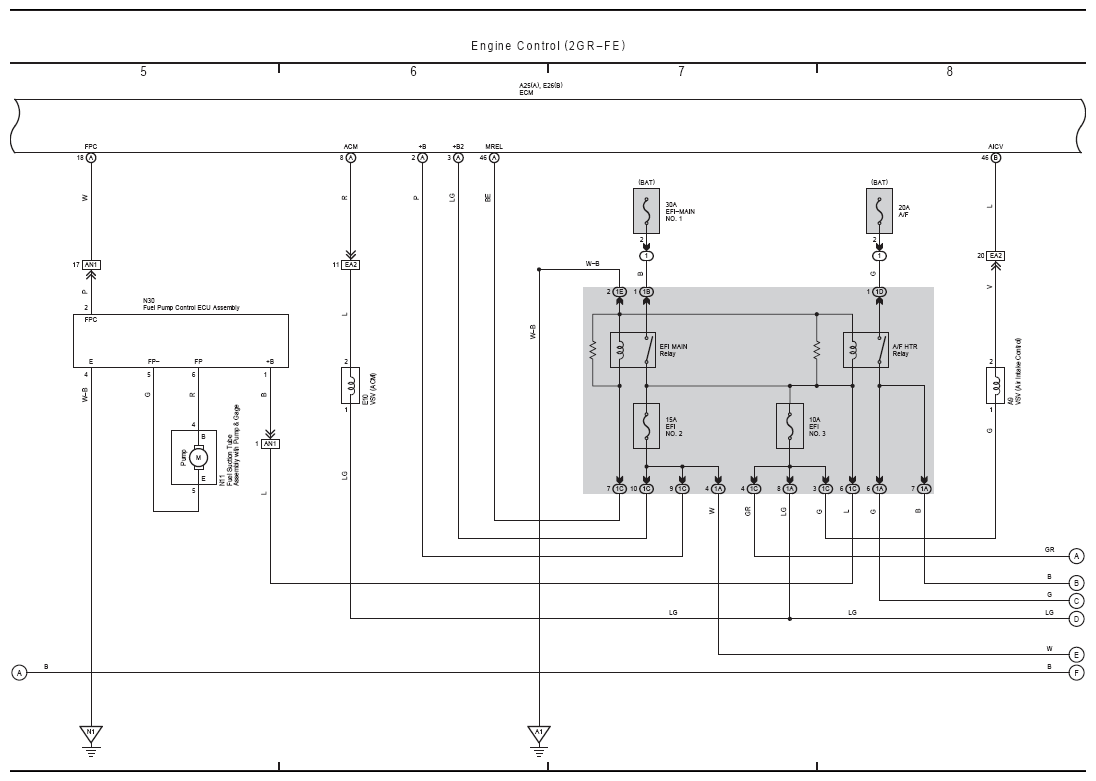

G12194417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

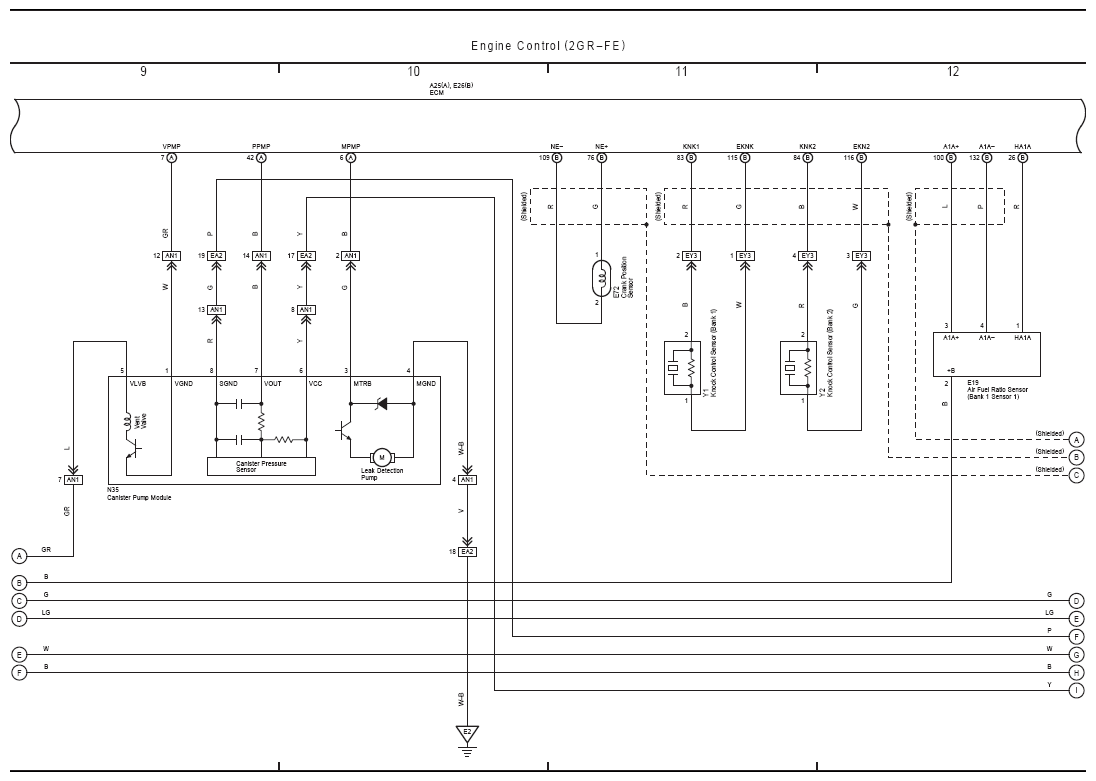

G12194418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

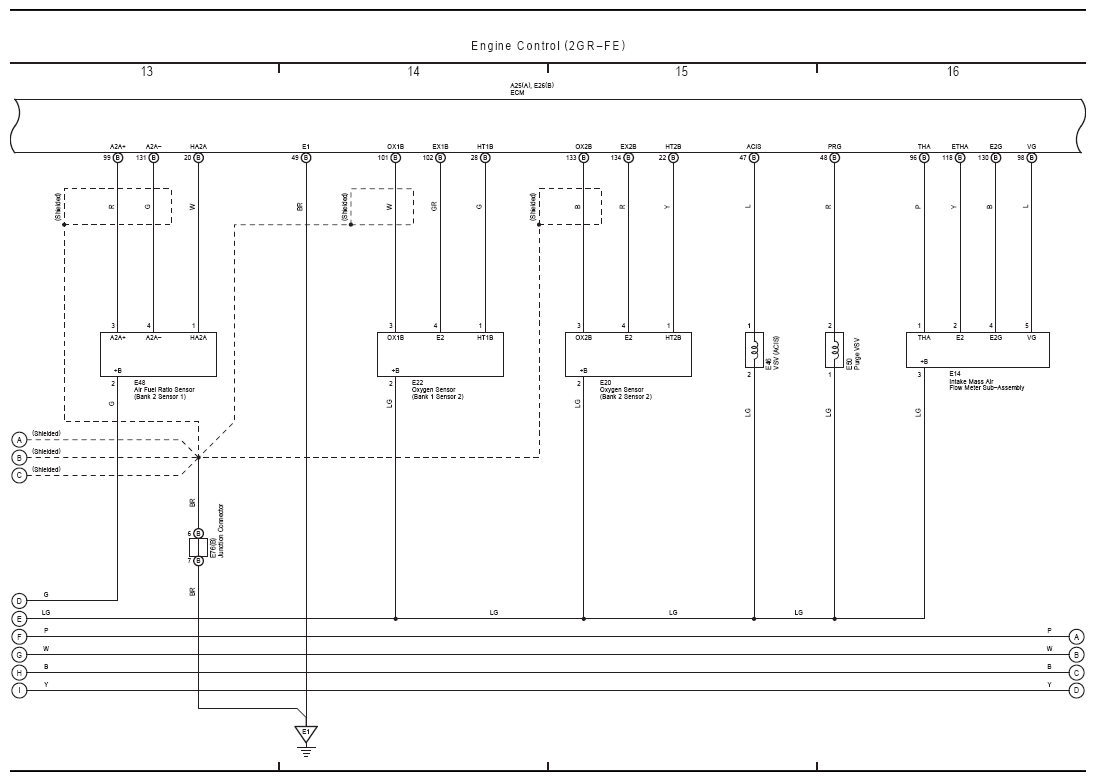

G12194419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

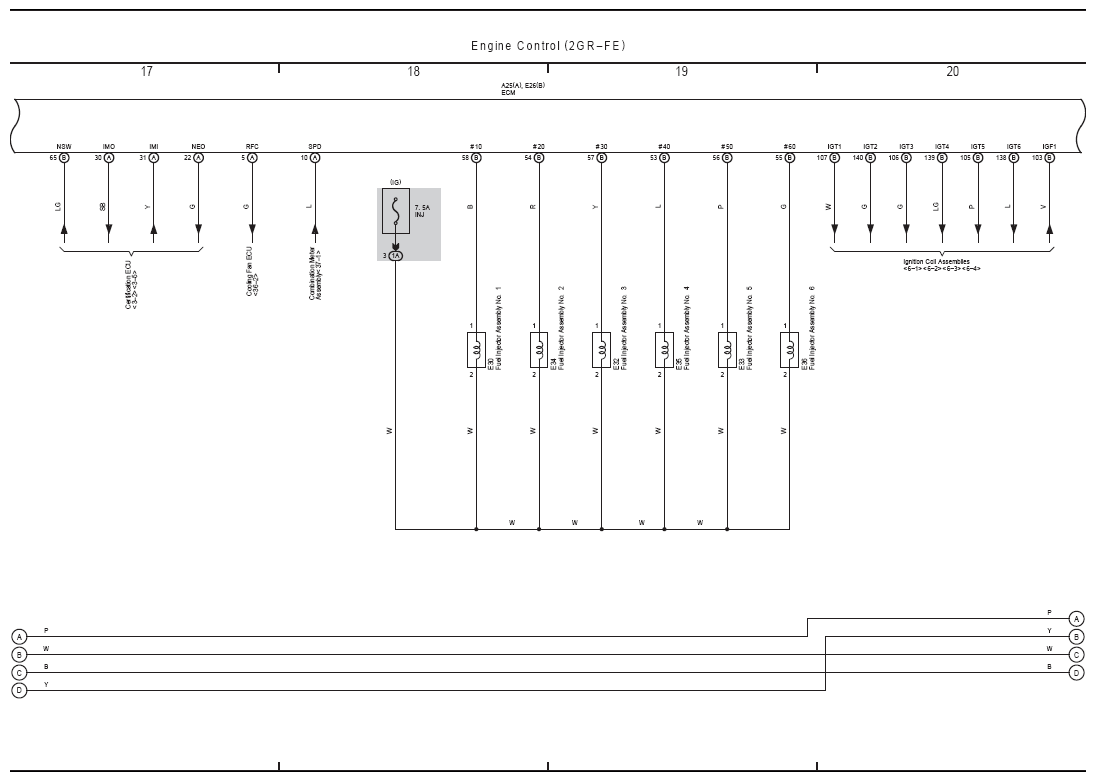

G12194420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

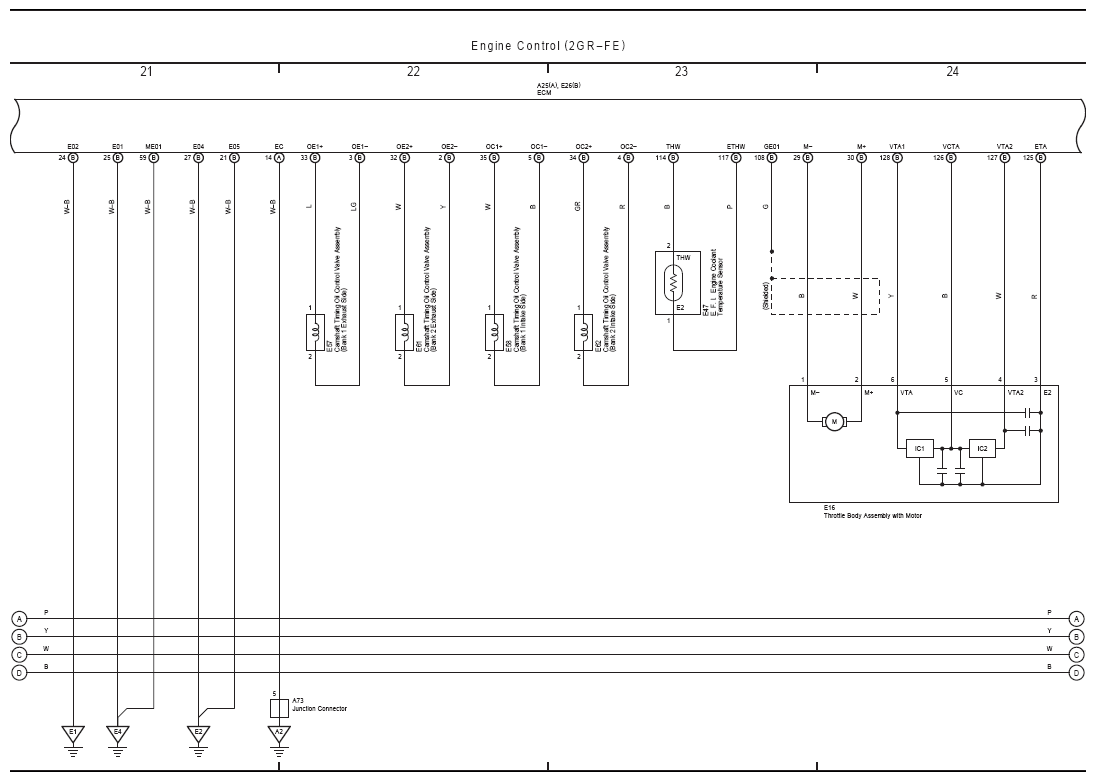

G12194421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

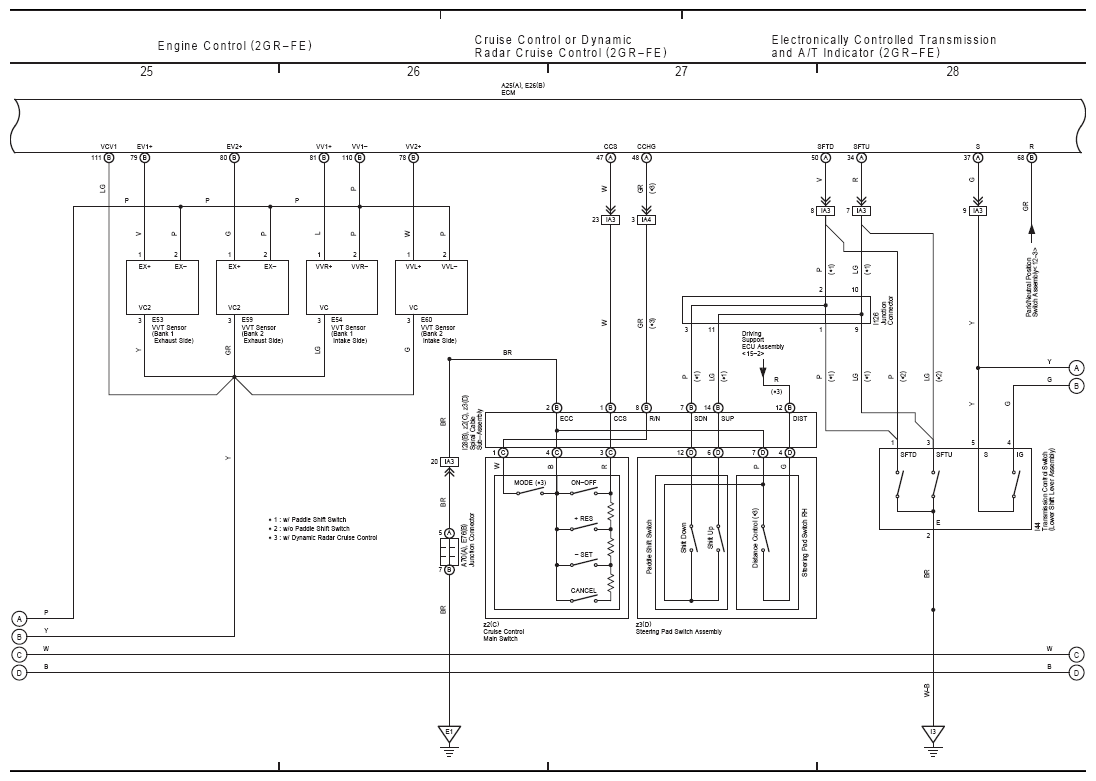

G12194422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

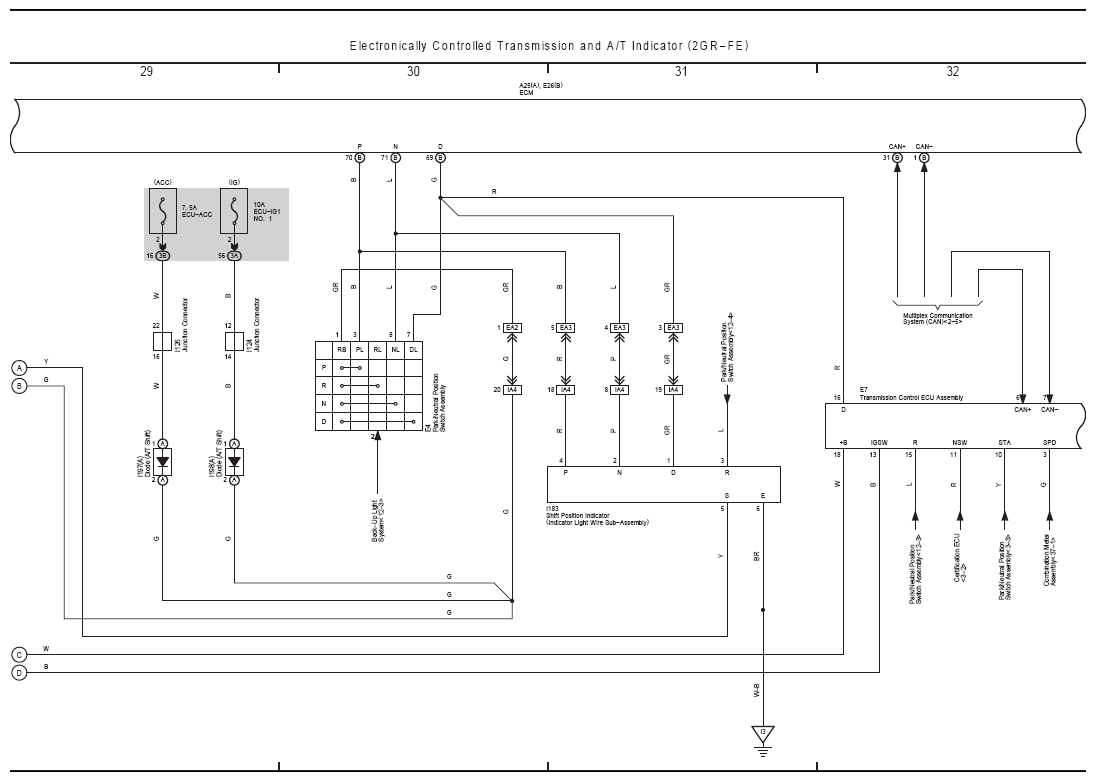

G12194423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

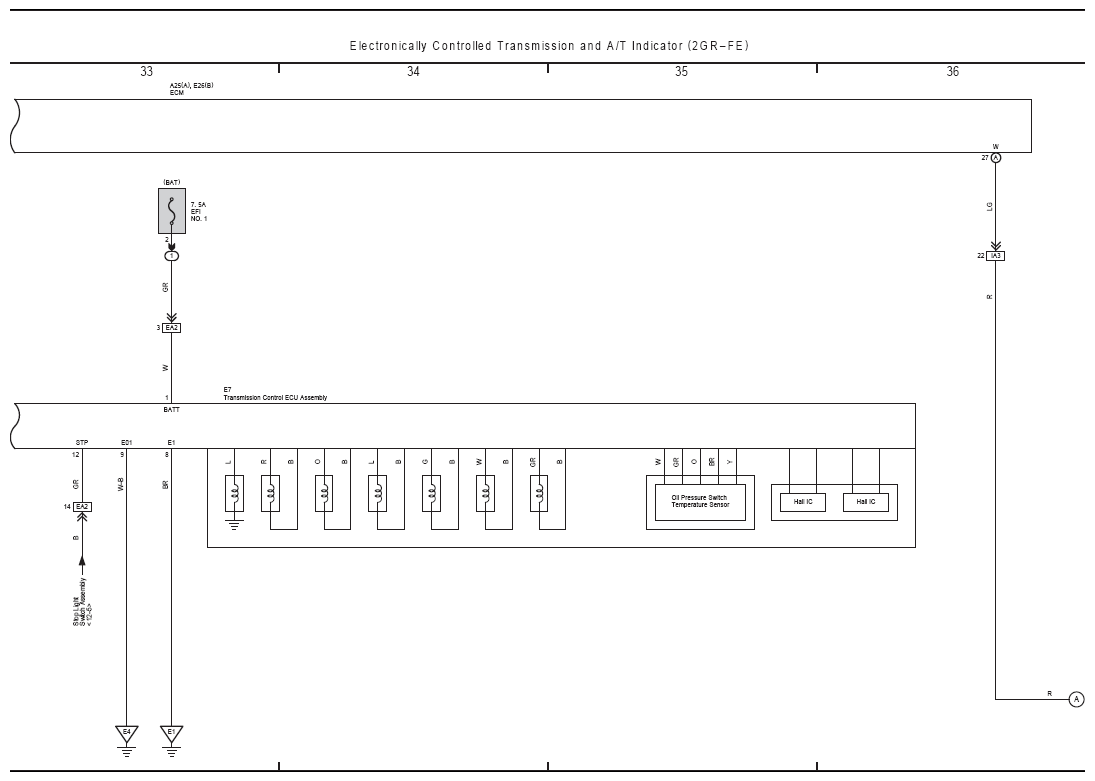

G12194424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

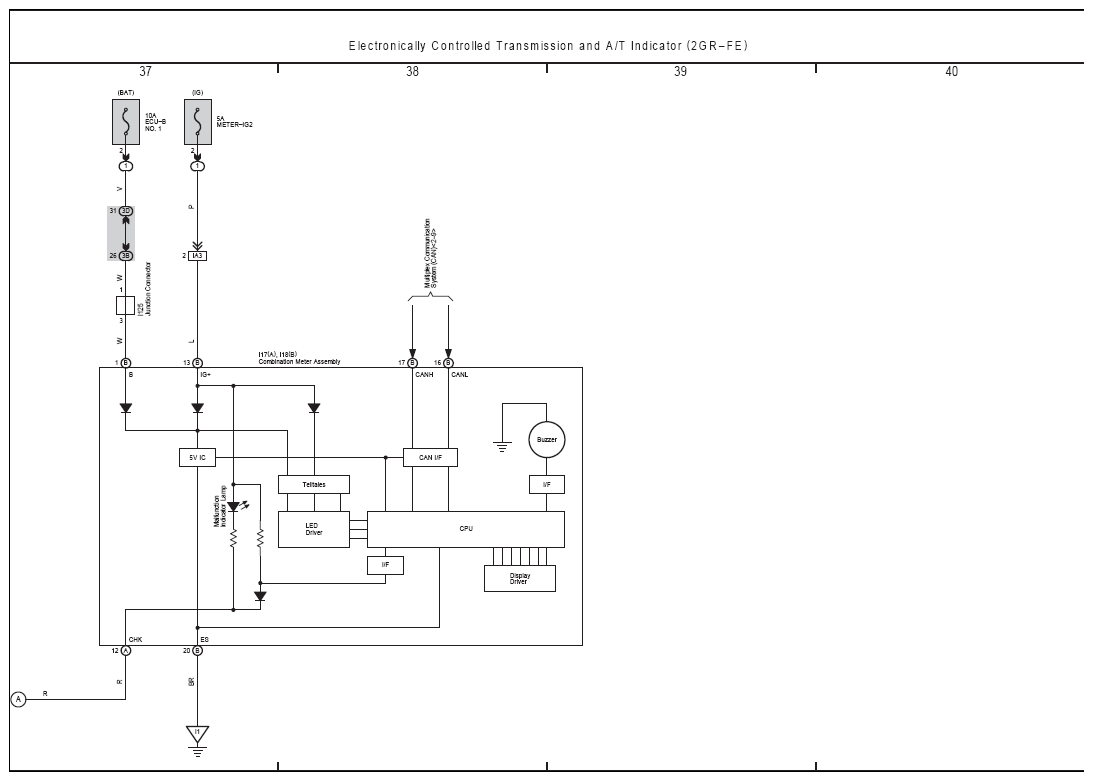

G12194425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
