Engine Control (2AR-FE), Cruise Control Or Dynamic Radar Cruise Control (2AR-FE), Electronically Controlled Transmission And A/T Indicator (2AR-FE)

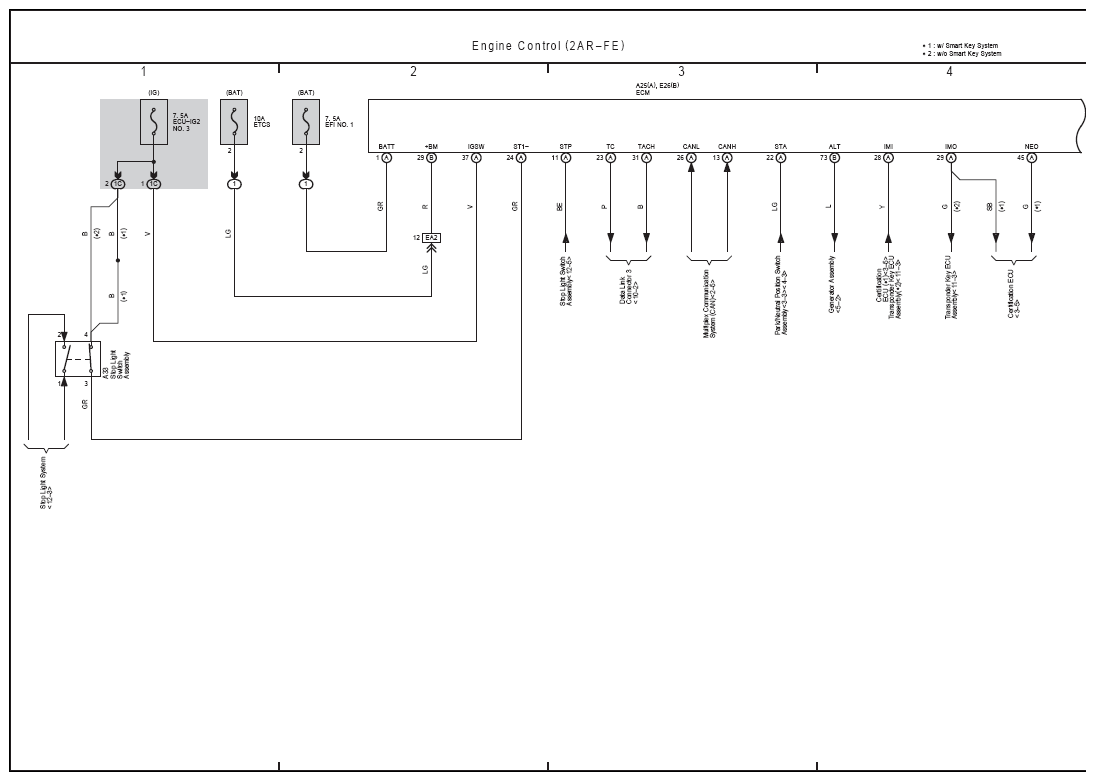

G12194426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

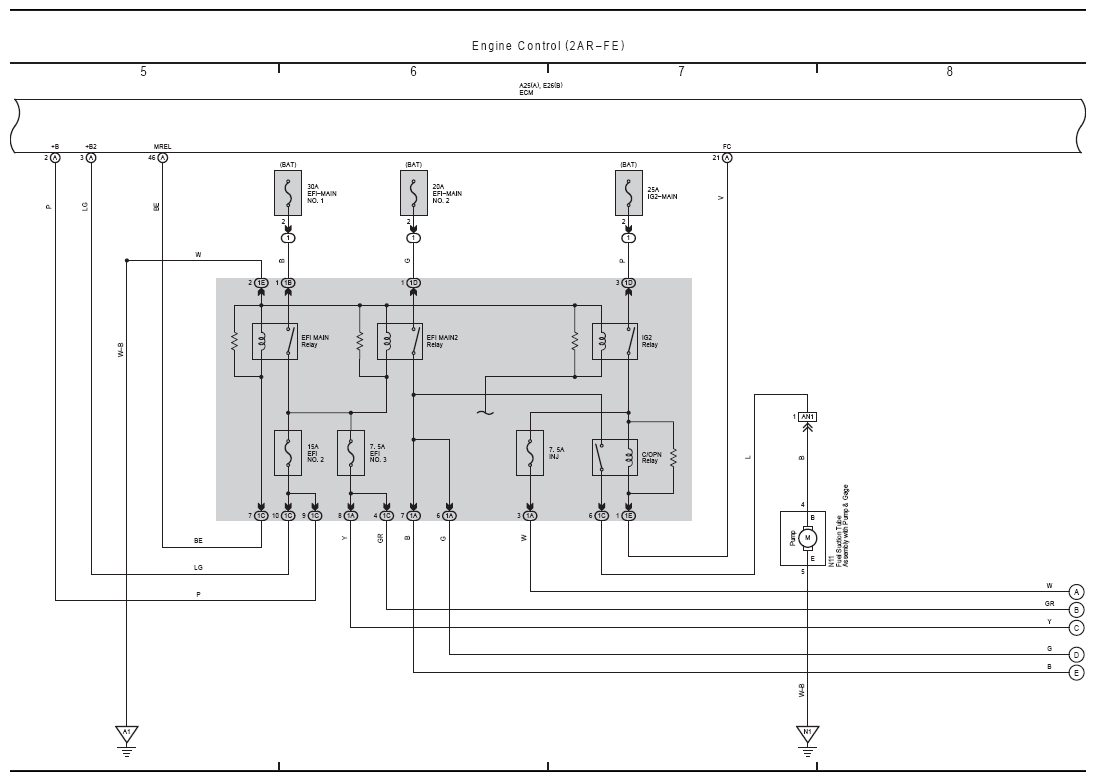

G12194427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

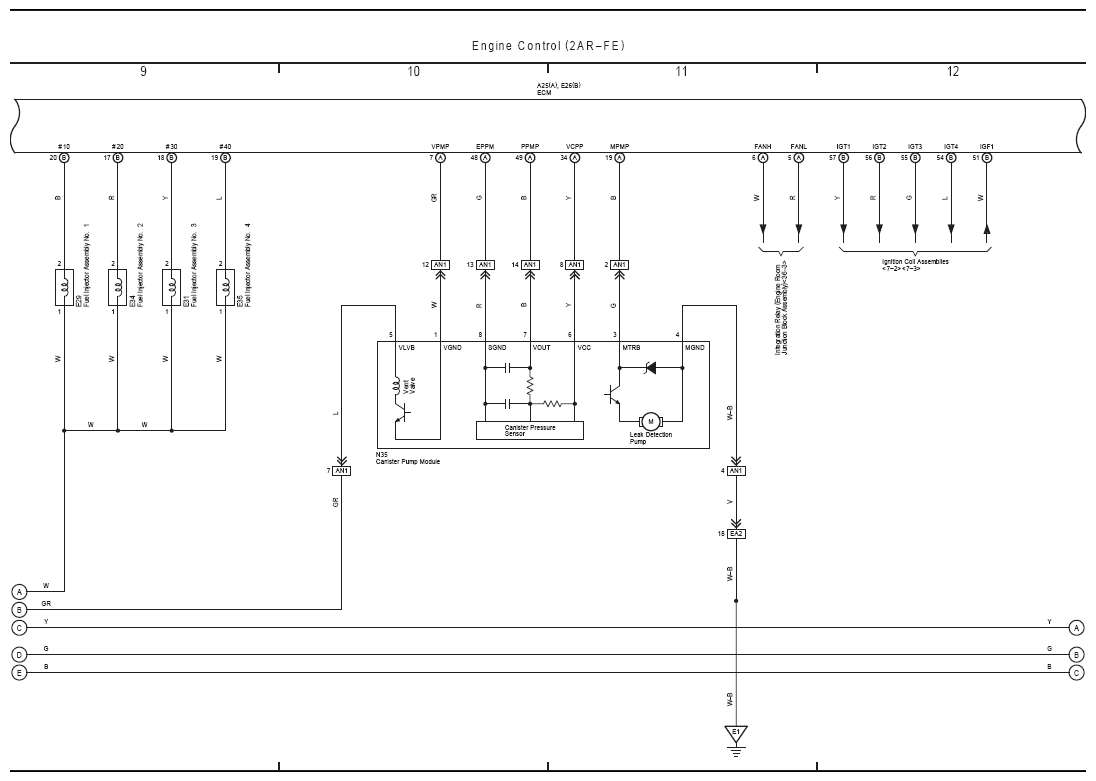

G12194428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

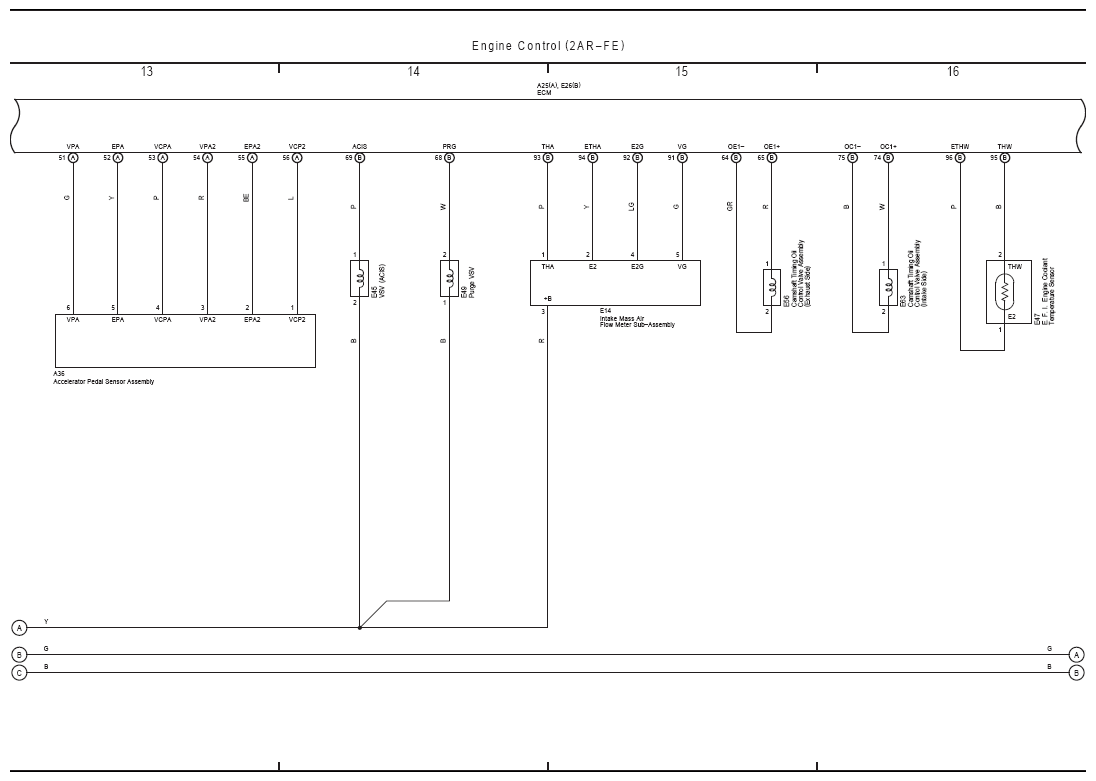

G12194429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

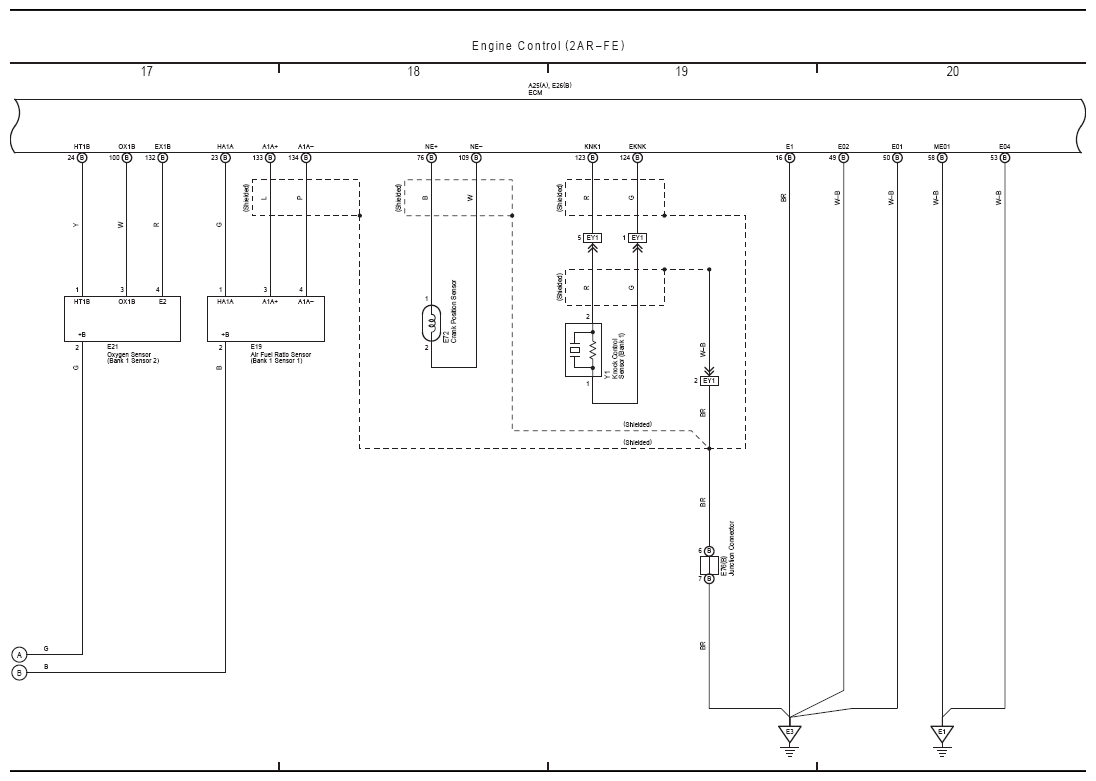

G12194430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

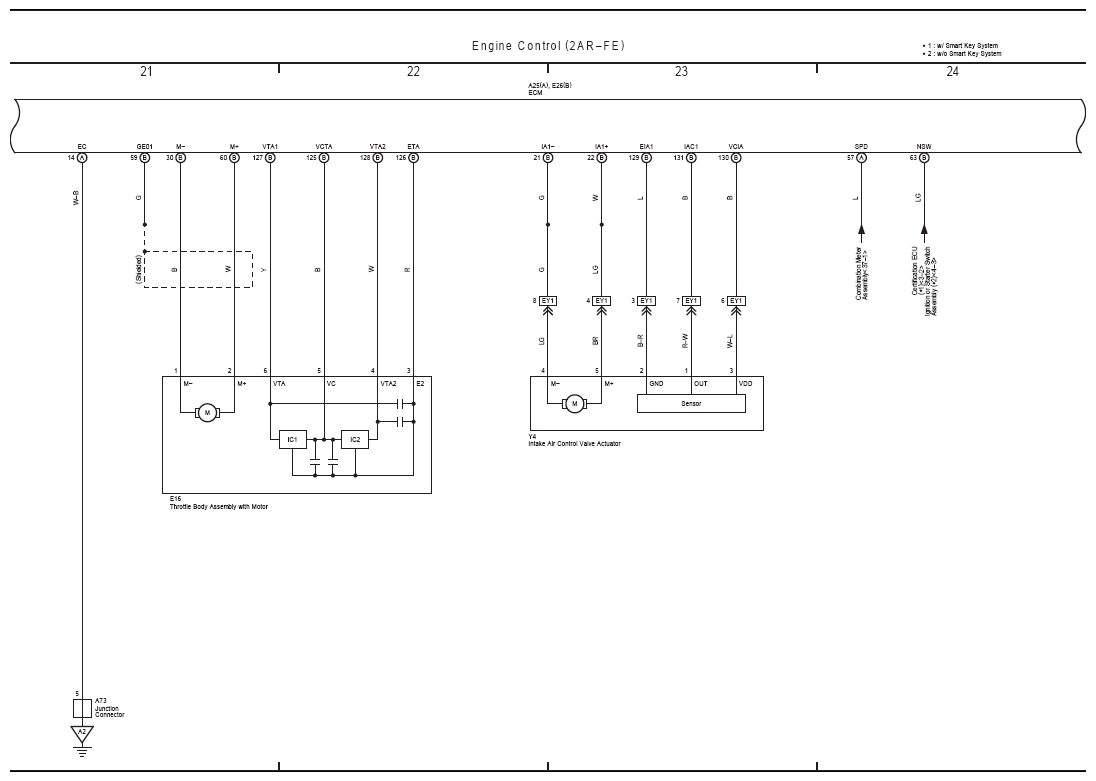

G12194431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

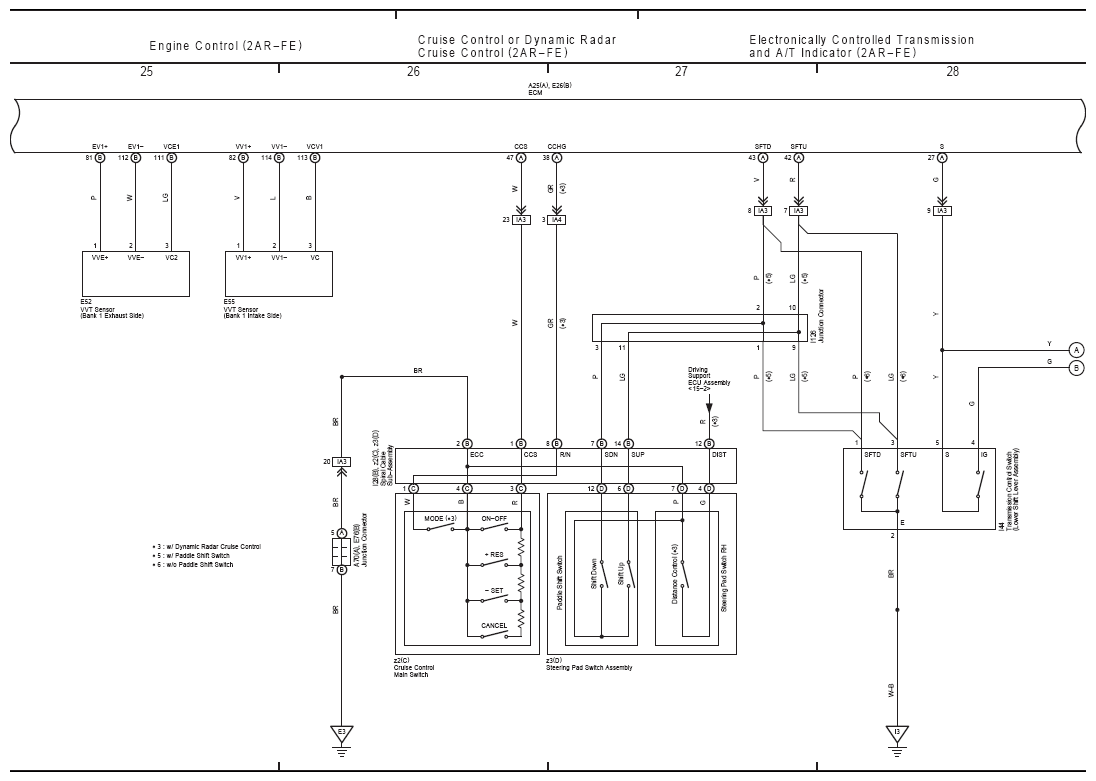

G12194432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

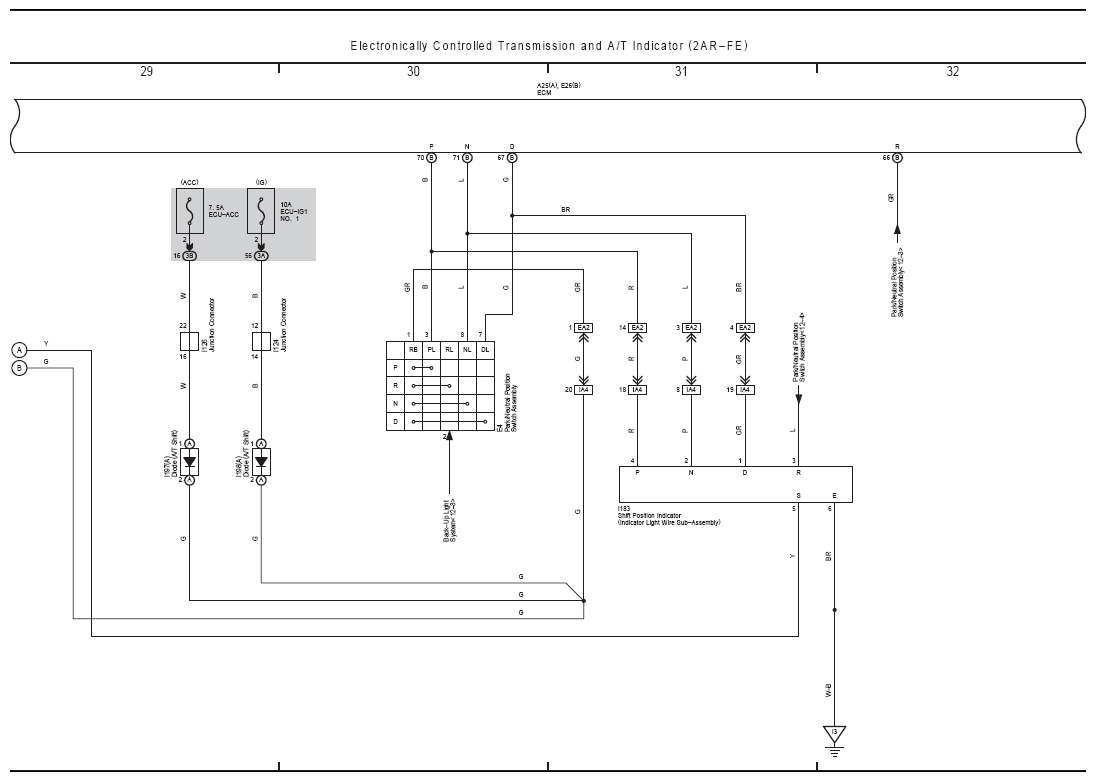

G12194433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

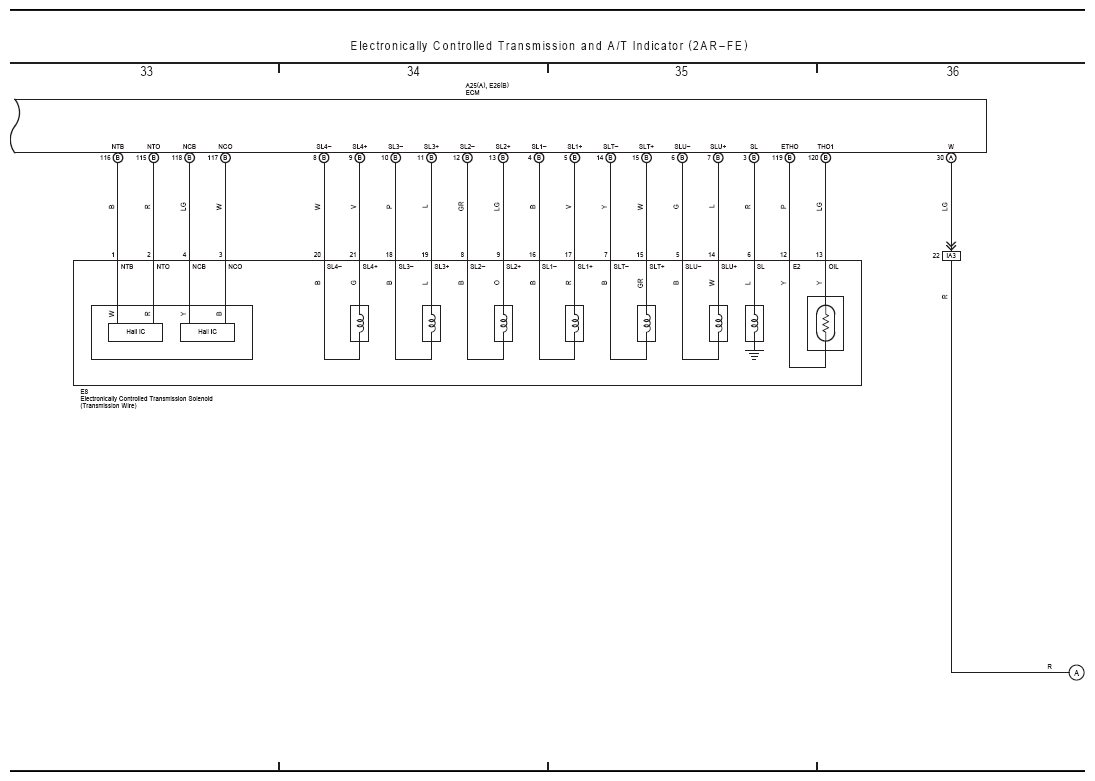

G12194434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

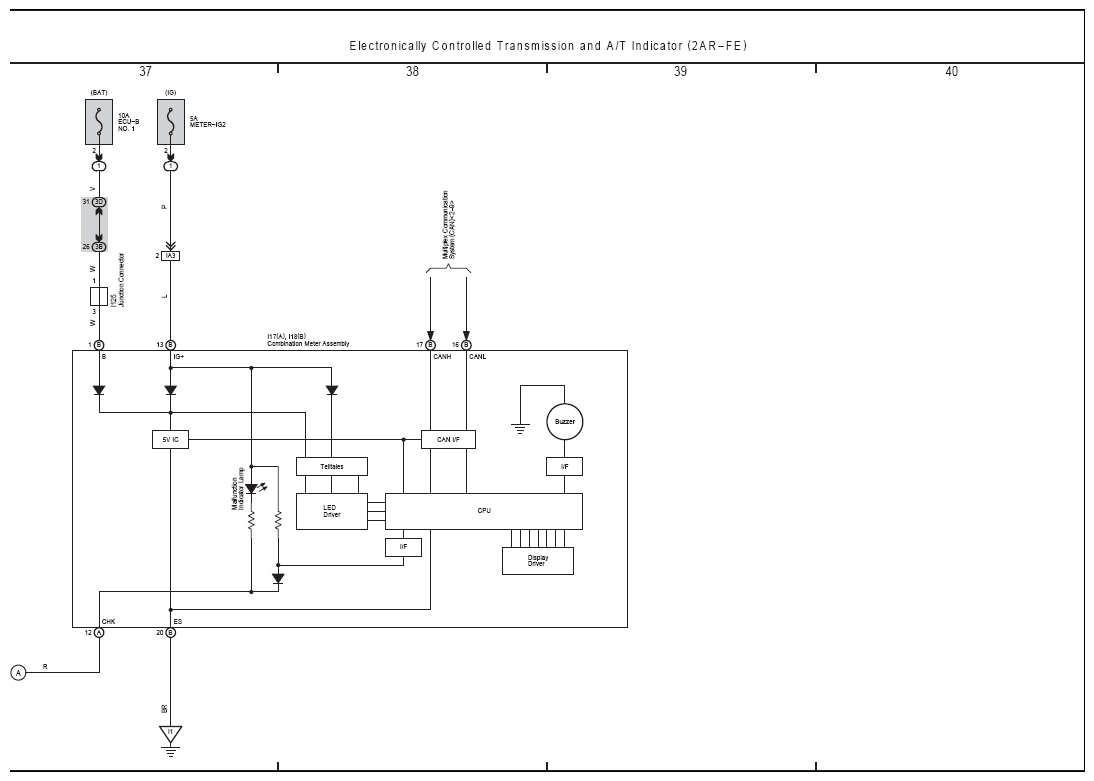

G12194435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
