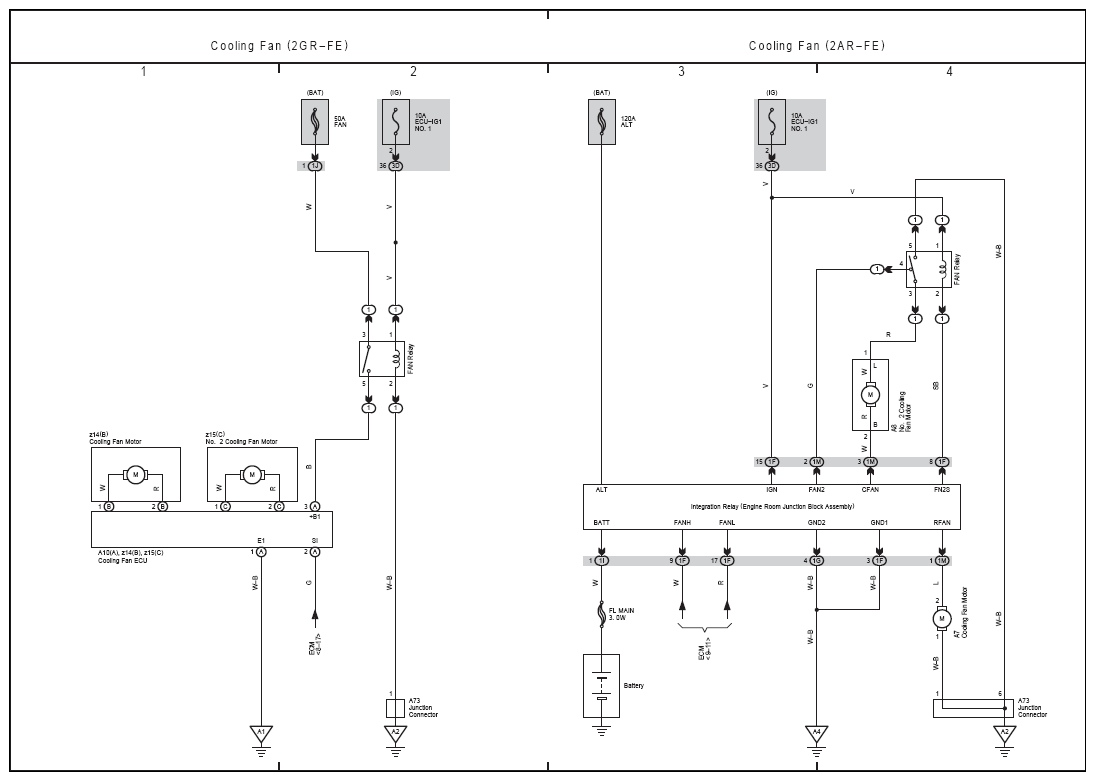

Cooling Fan (2GR-FE), Cooling Fan (2AR-FE)

G12194400

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
