Audio System (6 Speaker), Navigation System (6 Speaker) And Parking Assist (Rear View Monitor 6 Speaker)

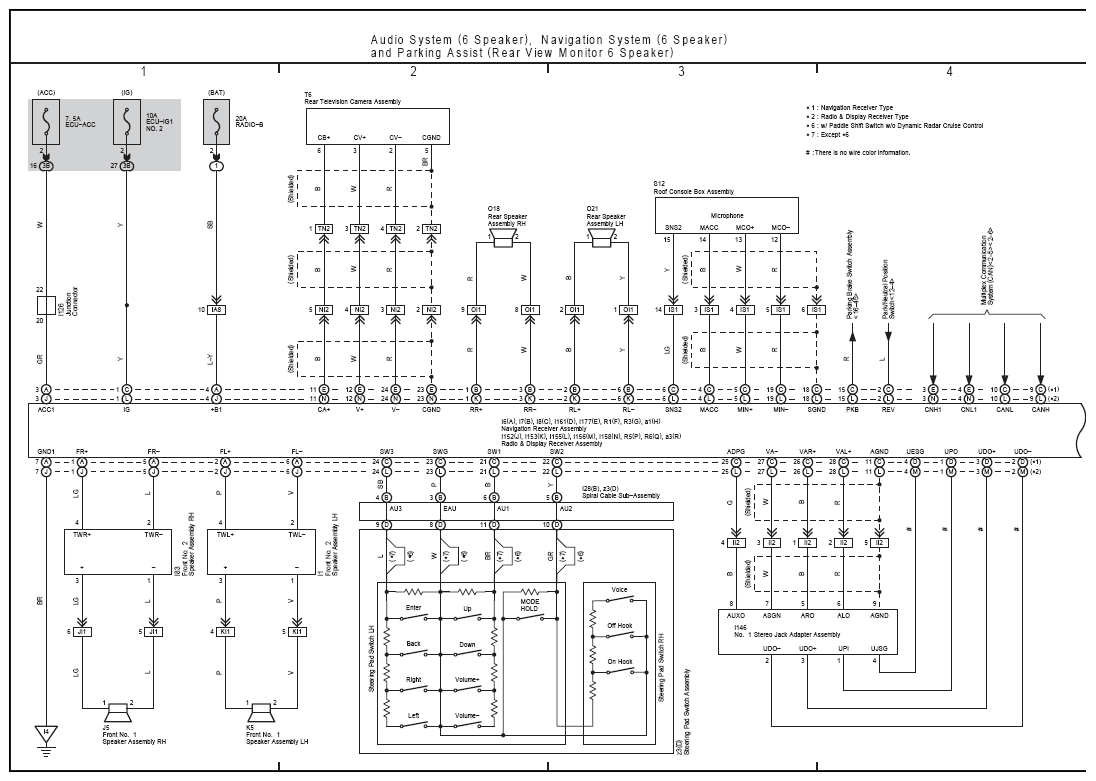

G12194398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

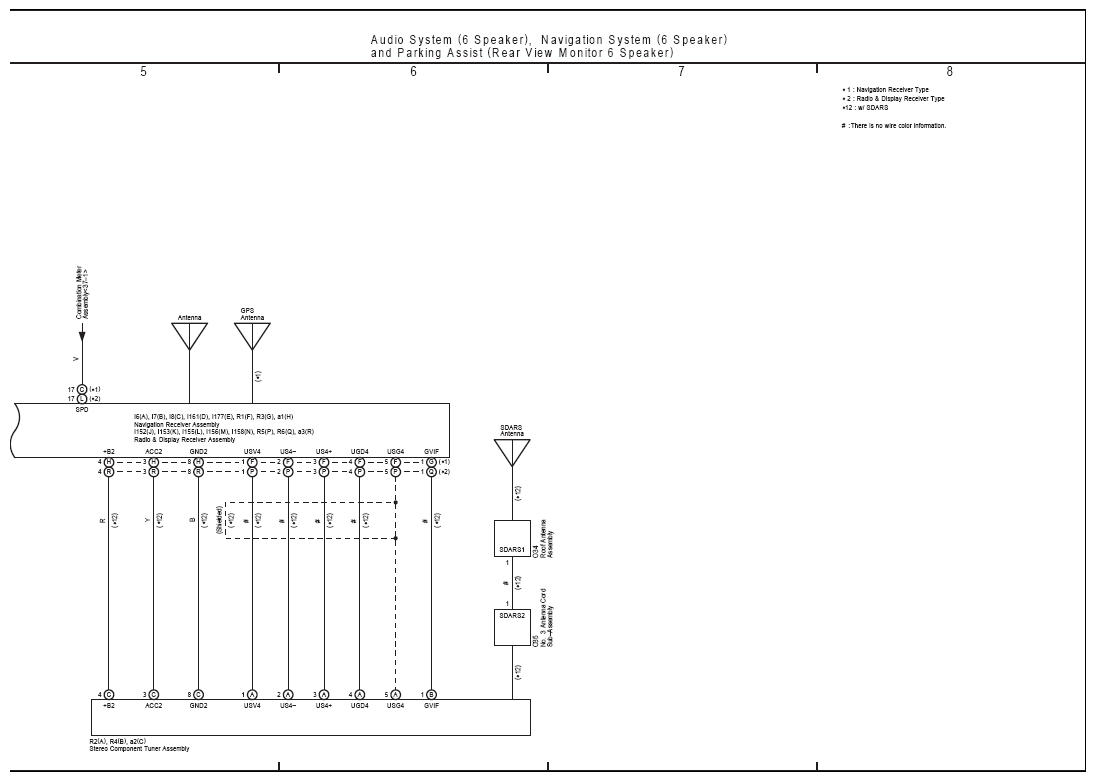

G12194399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
