Audio System (10 Speaker), Navigation System (10 Speaker) And Parking Assist (Rear View Monitor 10 Speaker) (Except Korea)

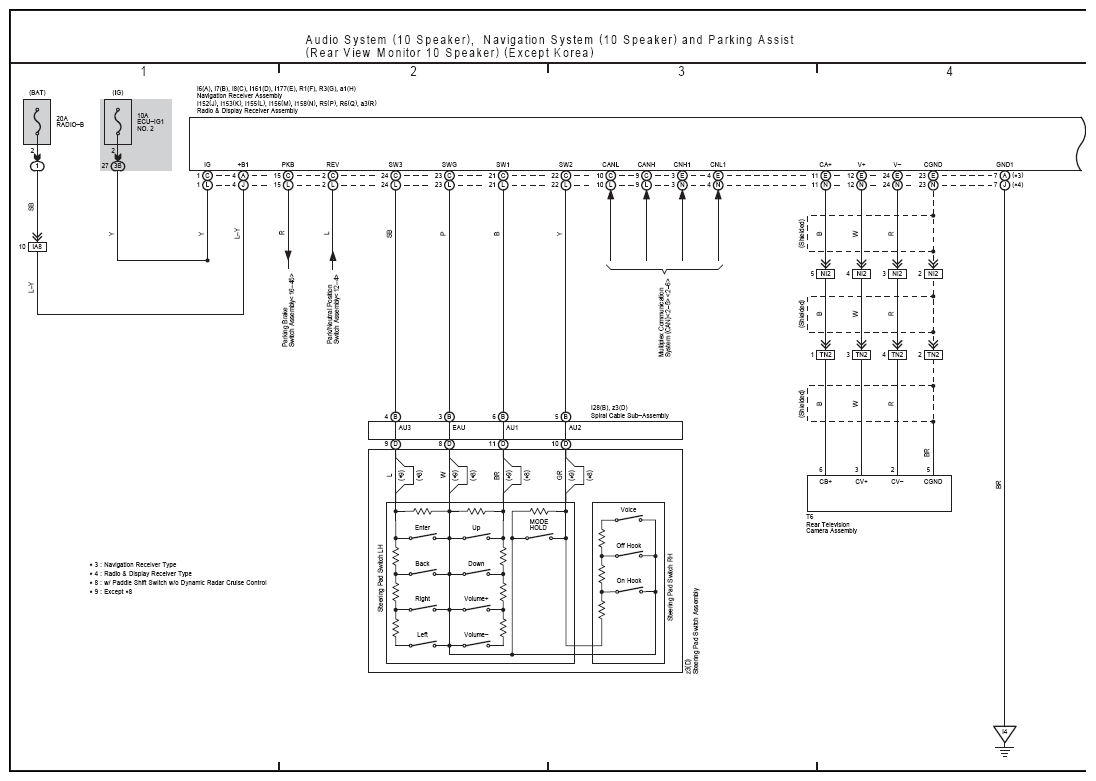

G12194394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

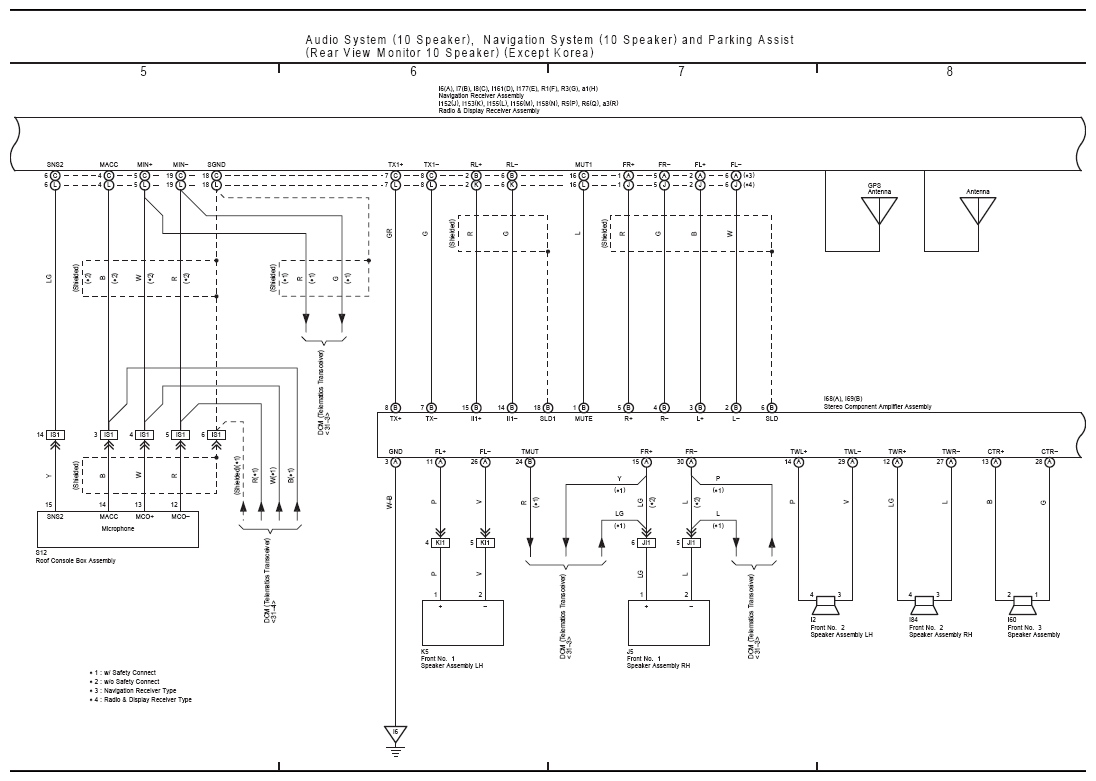

G12194395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

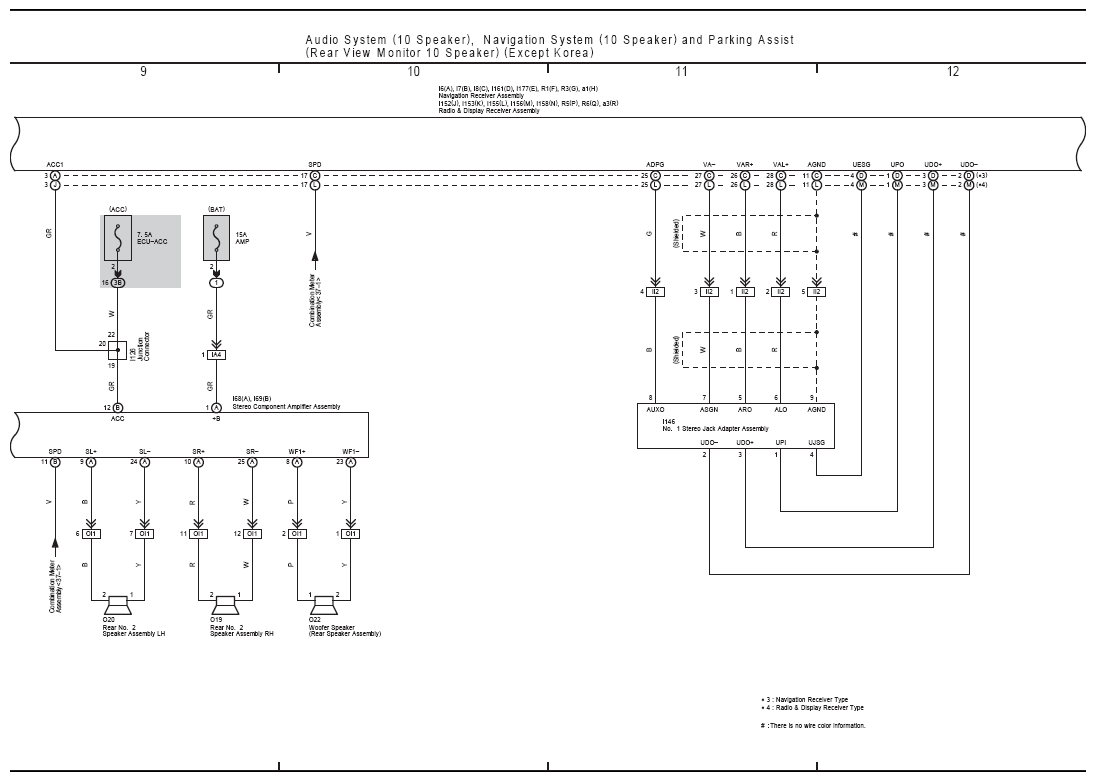

G12194396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

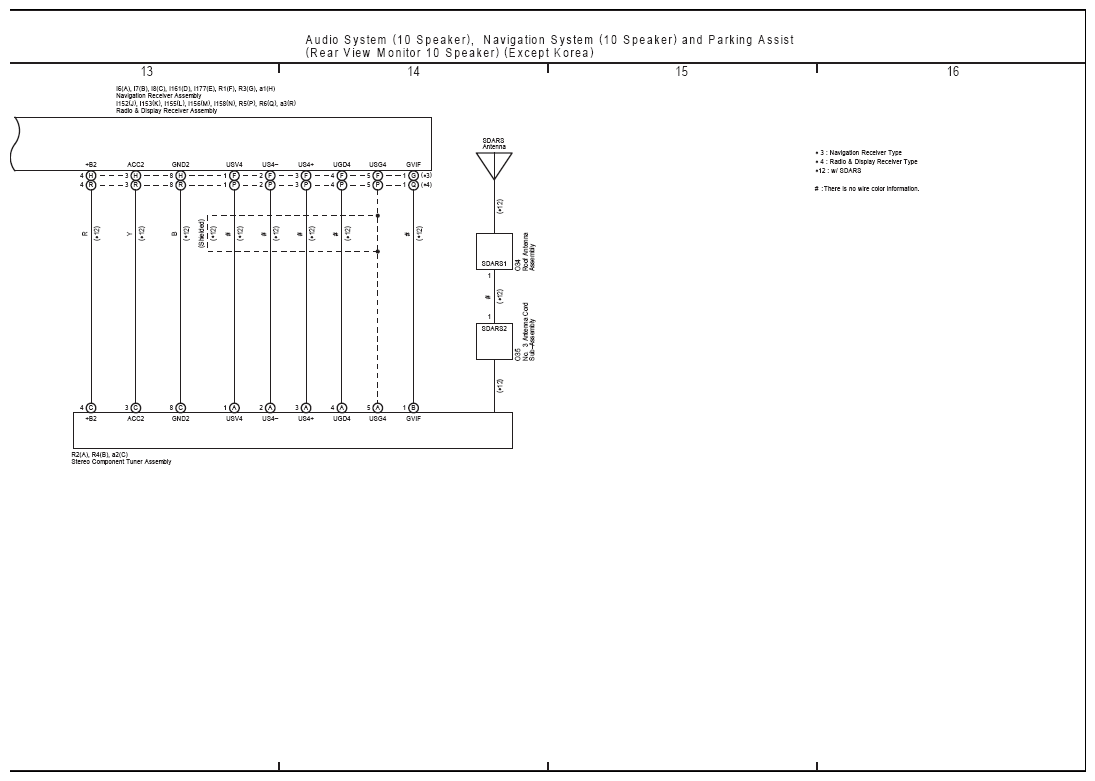

G12194397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
