Audio System (10 Speaker), Navigation System (10 Speaker) And Parking Assist (Back Guide Monitor) (Korea), Option Connector (Extension Box)

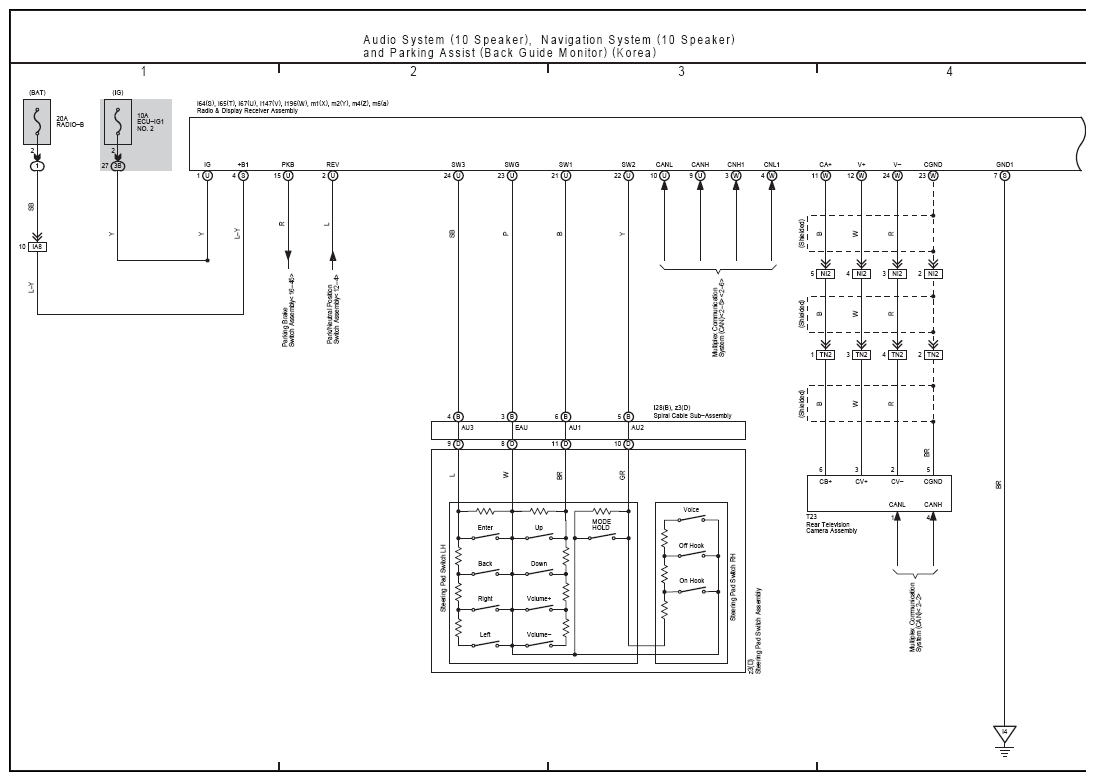

G12194406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

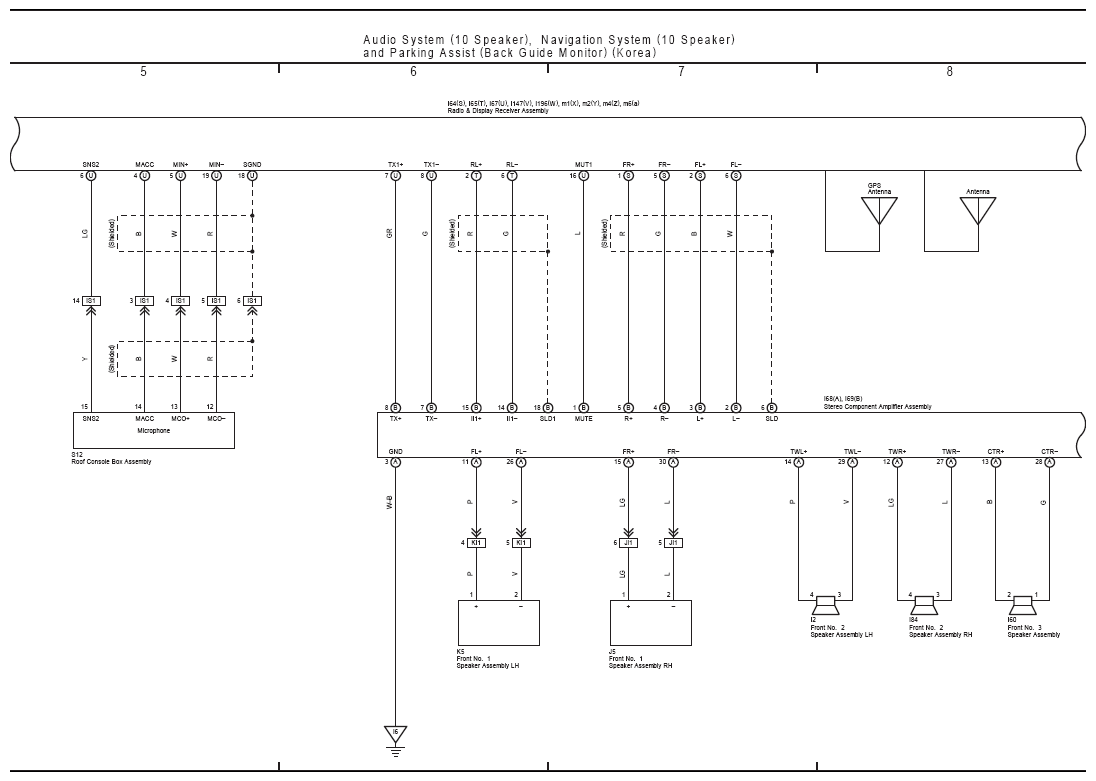

G12194407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

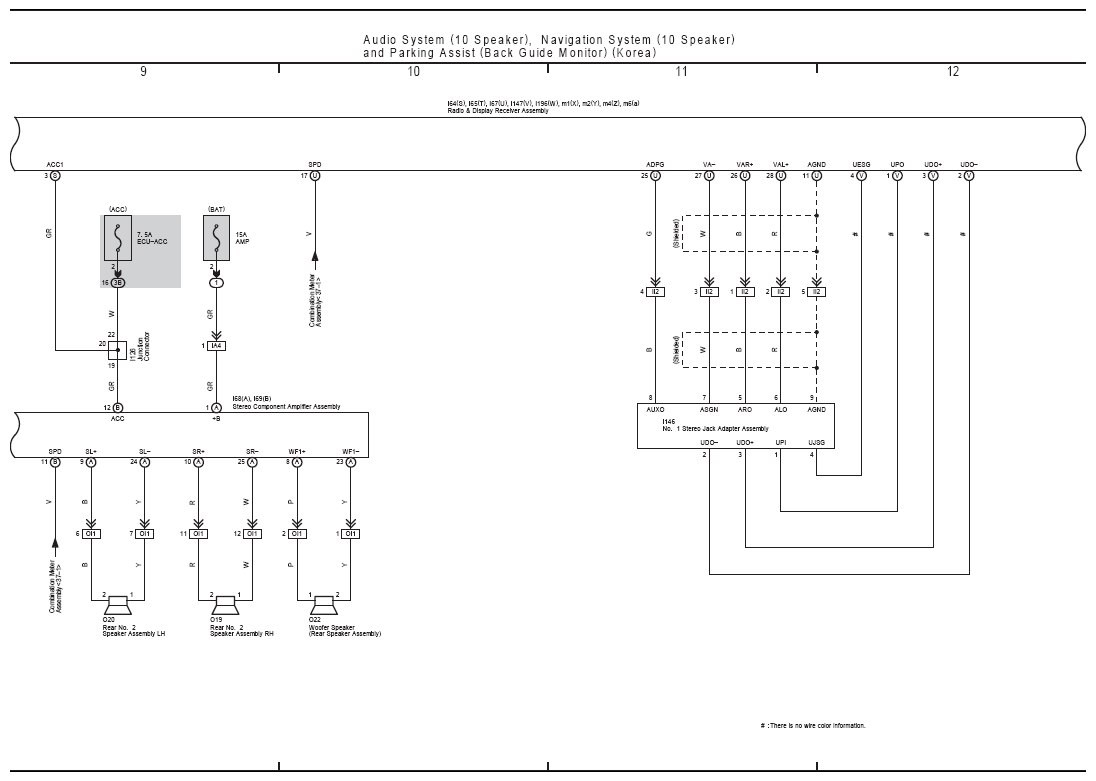

G12194408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

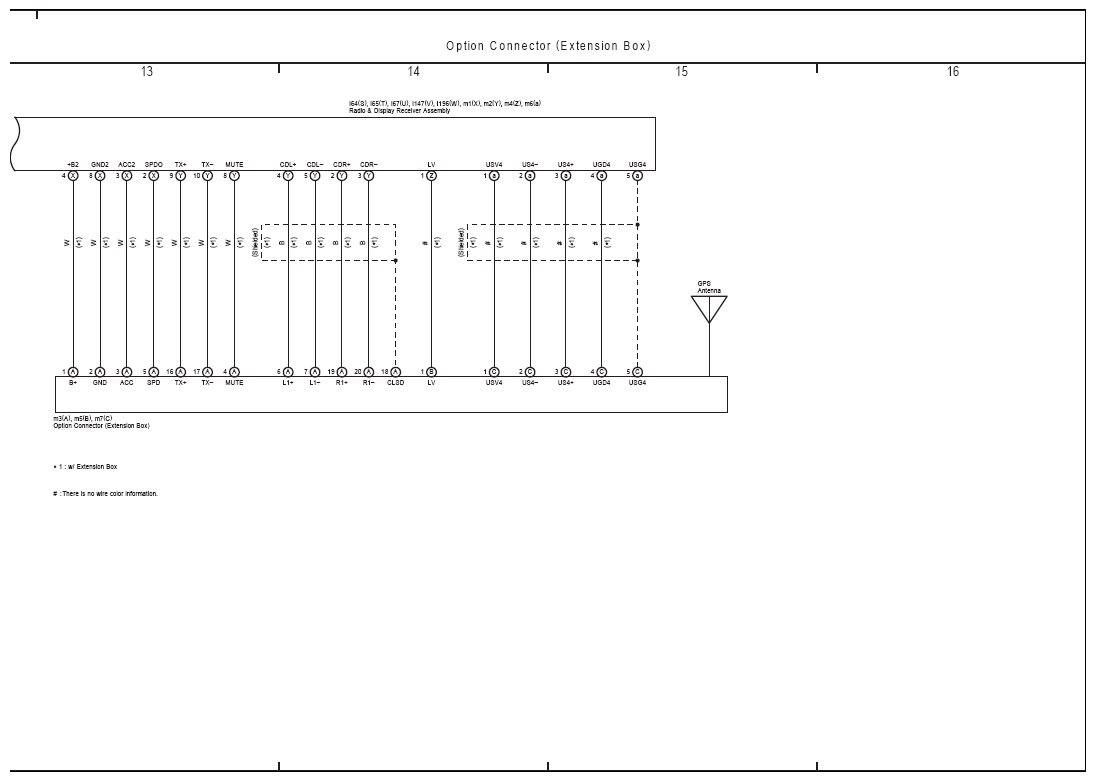

G12194409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
