OEM Overall Electrical Wiring Diagram (Except Hybrid)
>>
Overall Electrical Wiring Diagram
>>

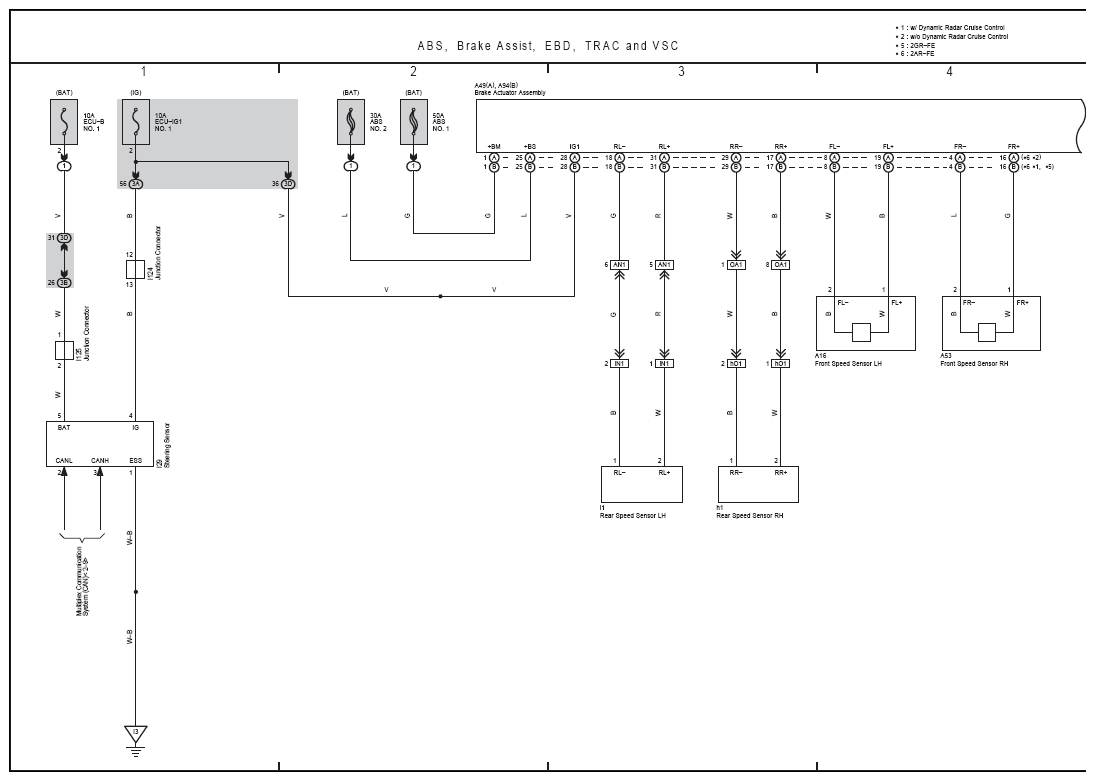

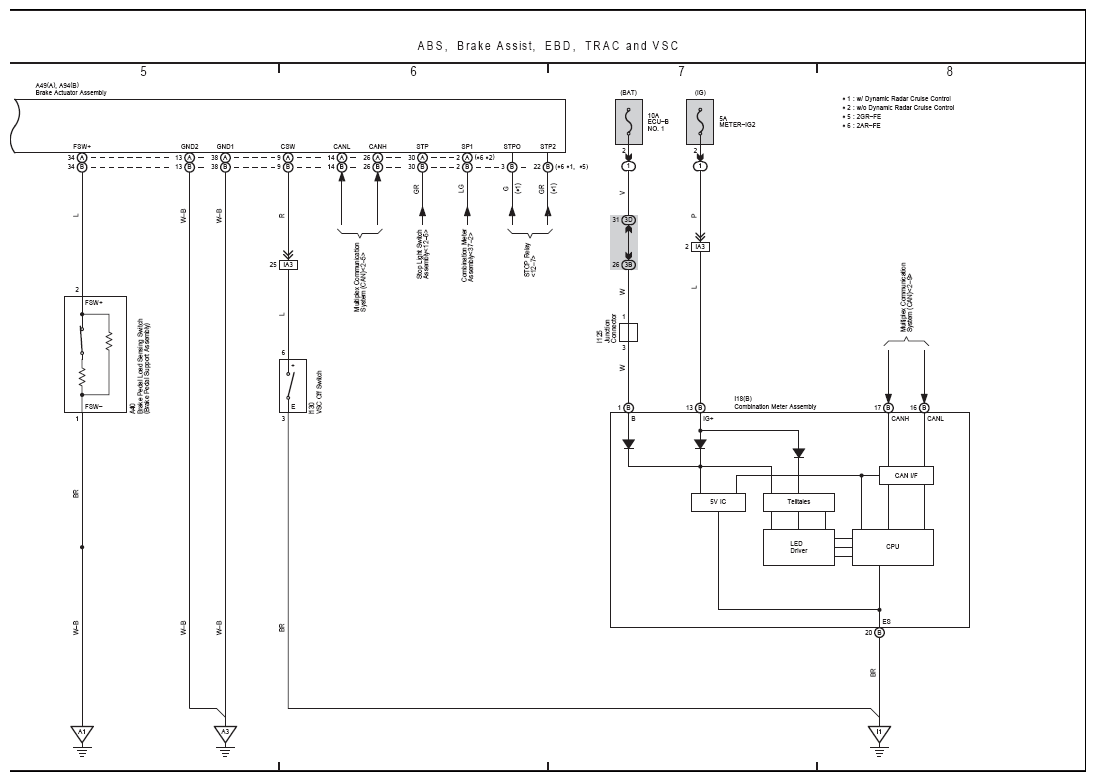

ABS, Brake Assist, EBD, TRAC And VSC
ABS, Brake Assist, EBD, TRAC And VSC
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
