System Diagram [08/2015 - ]

HINT:

See the layout drawing to confirm the locations and tightening torque of flexible hoses and brake lines.

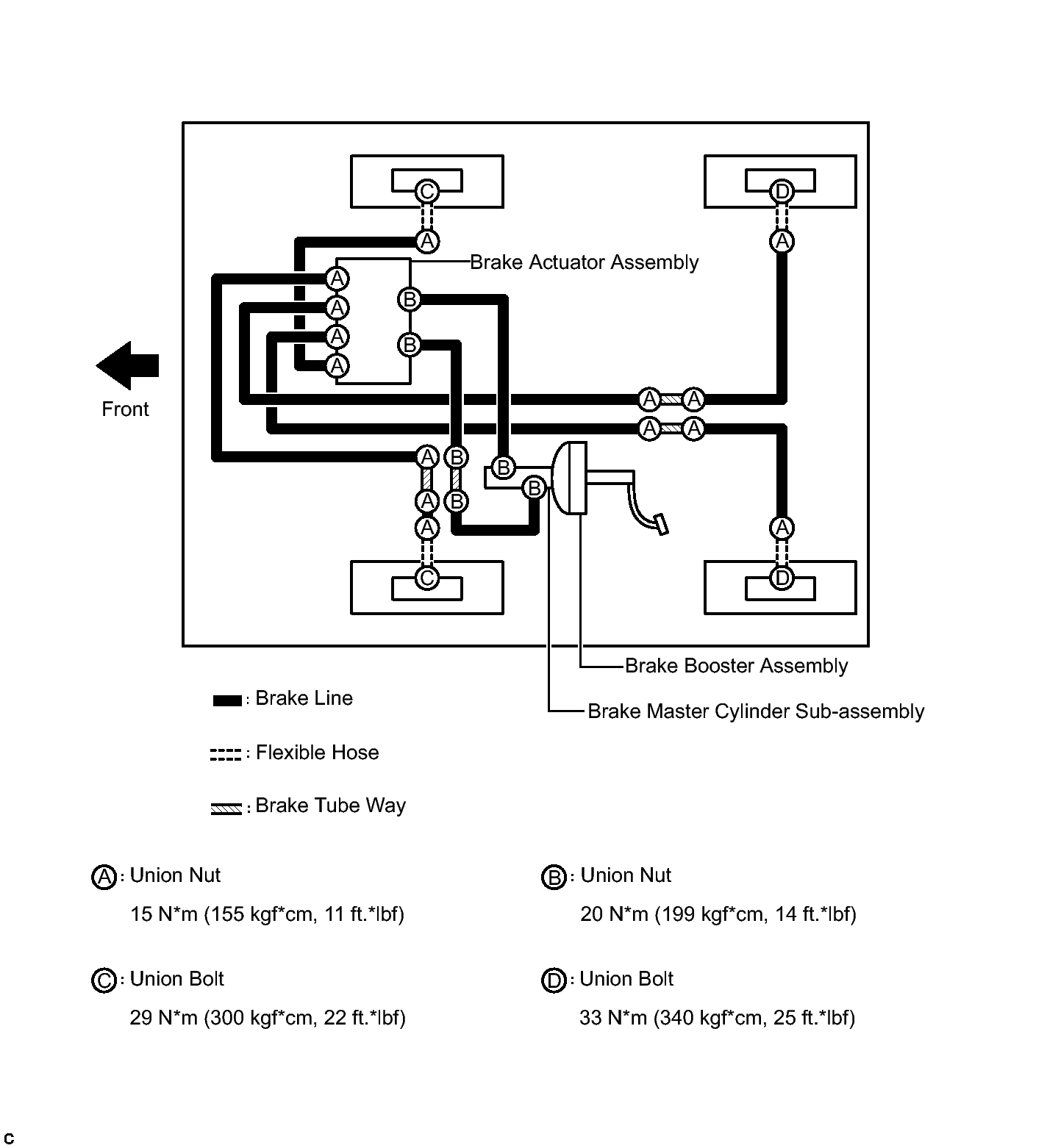

Fig 1: Identifying Brake Line System Diagram
GTY322766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
