VSC OFF Indicator Light Remains ON [08/2015 - ]: Wiring Diagram

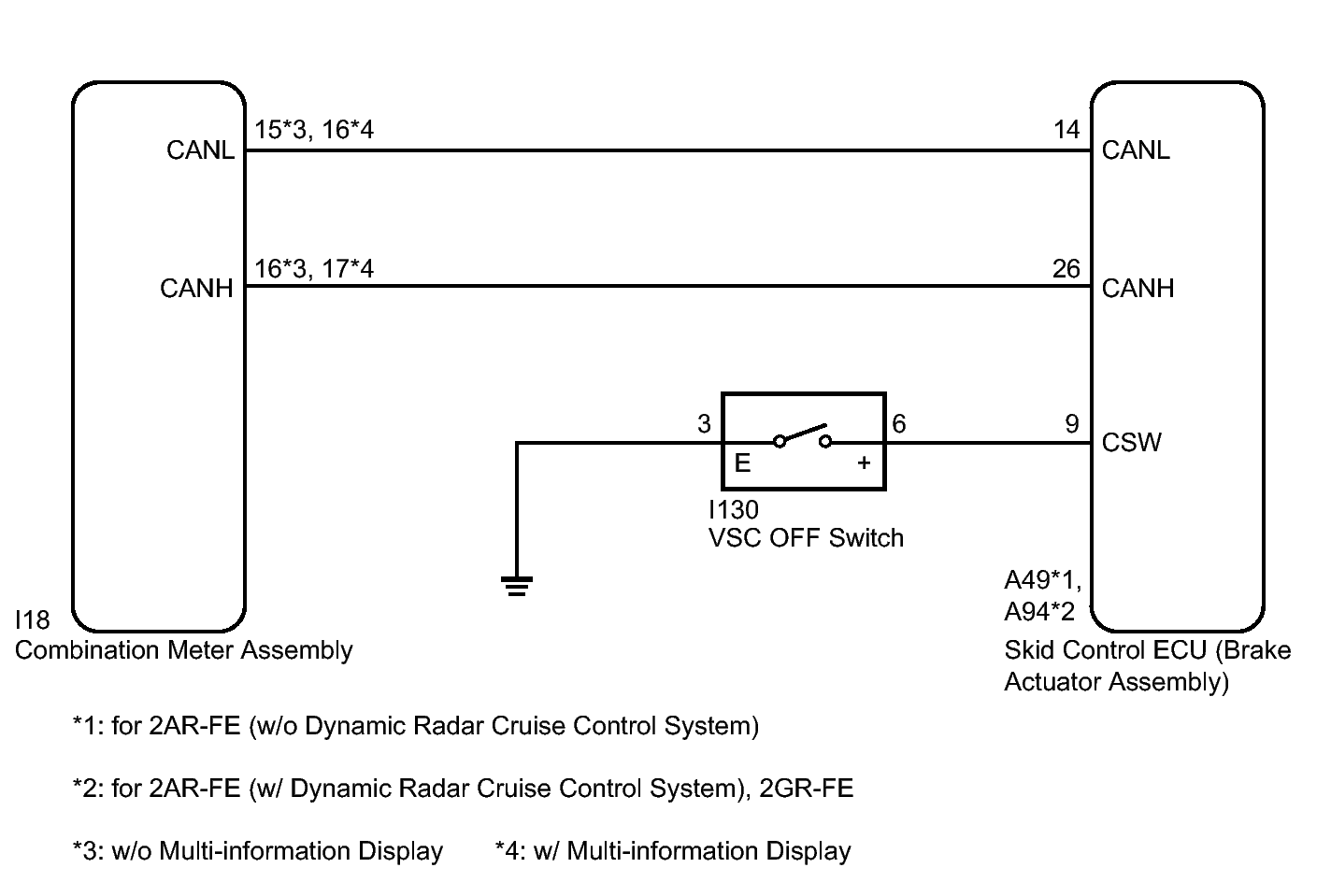

Fig 1: Identifying VSC OFF Indicator Light Wiring Diagram

GTY477967

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
