Slip Indicator Light Remains ON [08/2015 - ]: Wiring Diagram

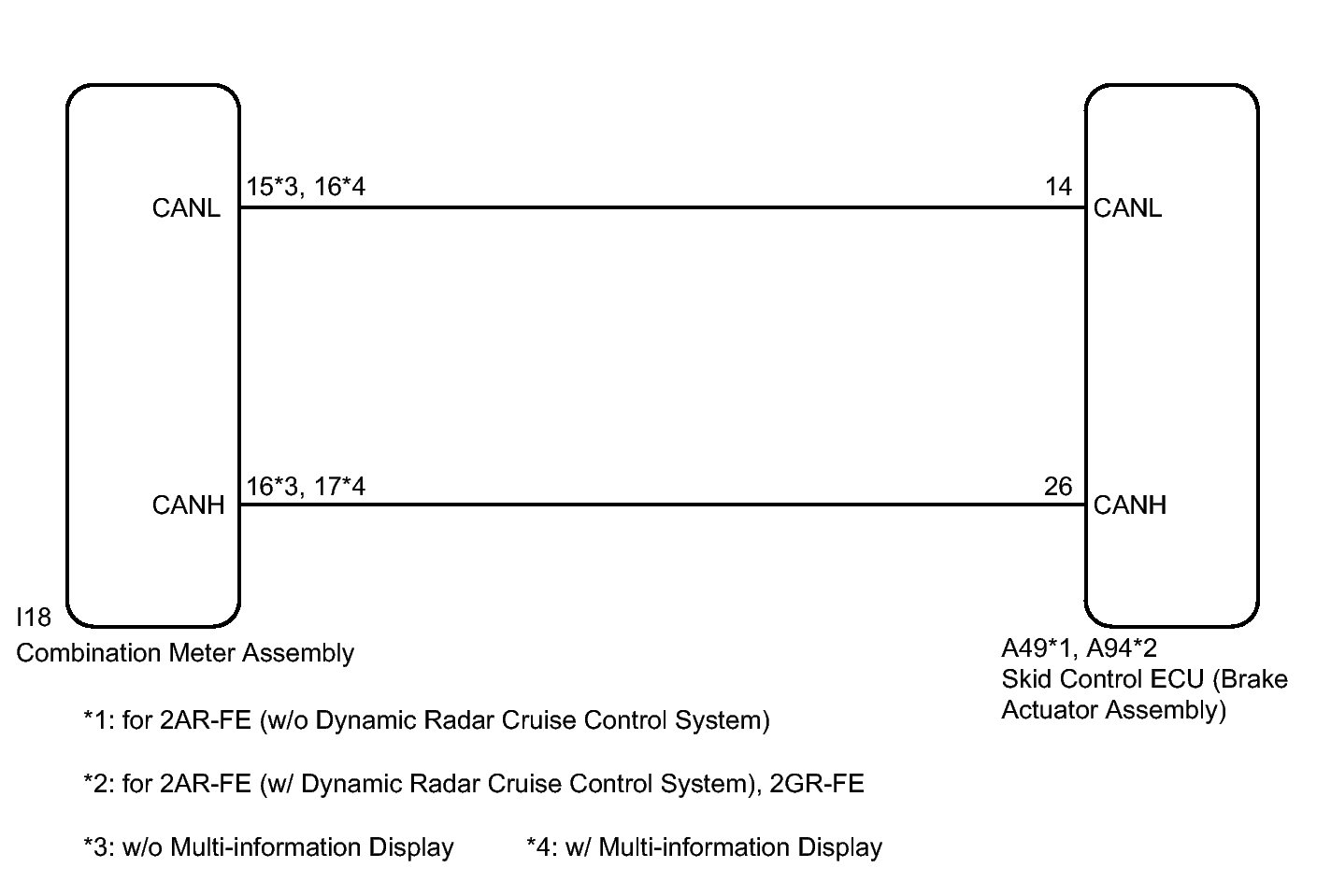

Fig 1: Identifying Slip Indicator Light Wiring Diagram

GTY479311

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
