Brake Warning Light Remains ON [08/2015 - ]: Wiring Diagram

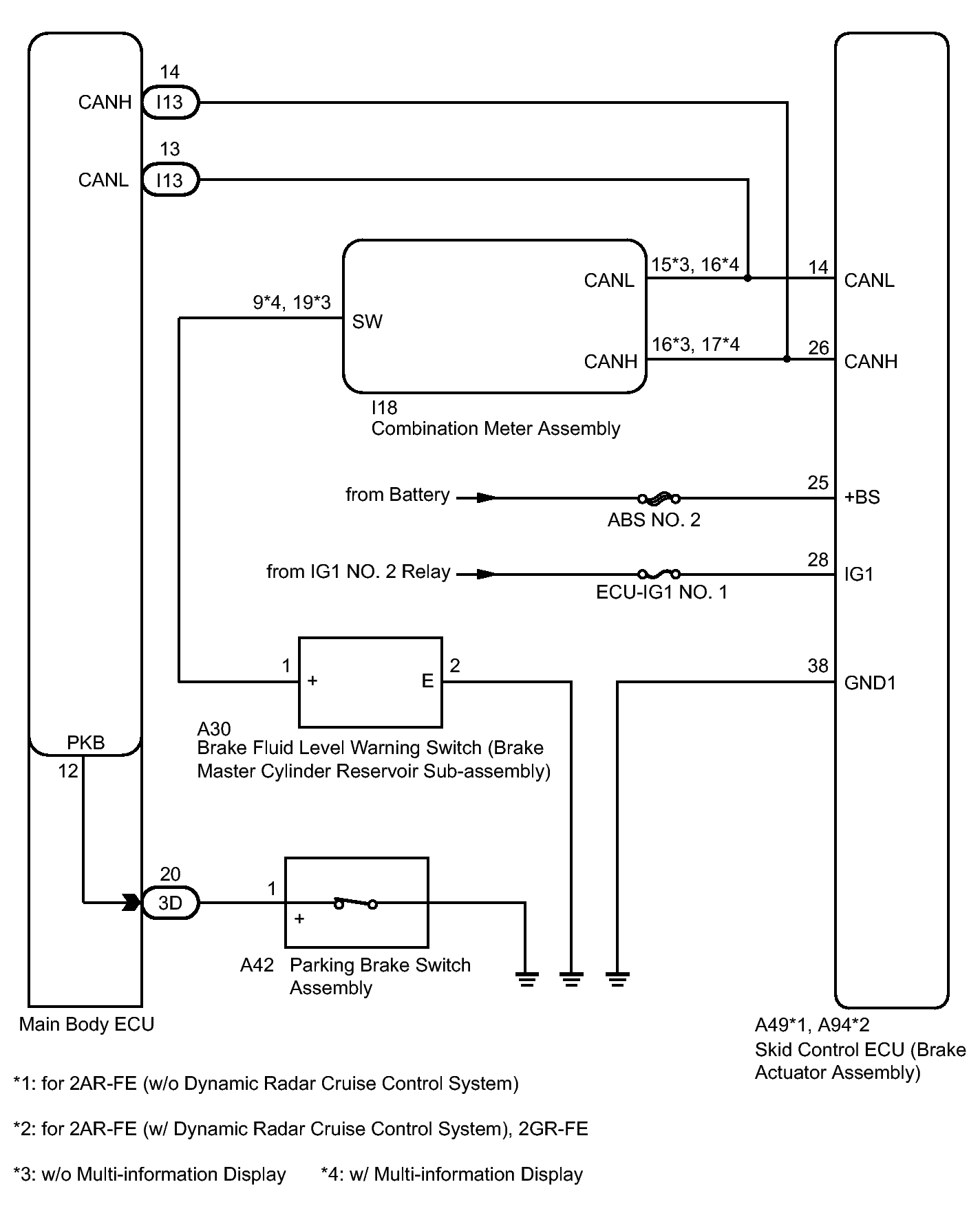

Fig 1: Identifying Main Body ECU Wiring Diagram

GTY481010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
