DTC C146C: Open in ABS Motor Relay Circuit [08/2015 - ]: Wiring Diagram

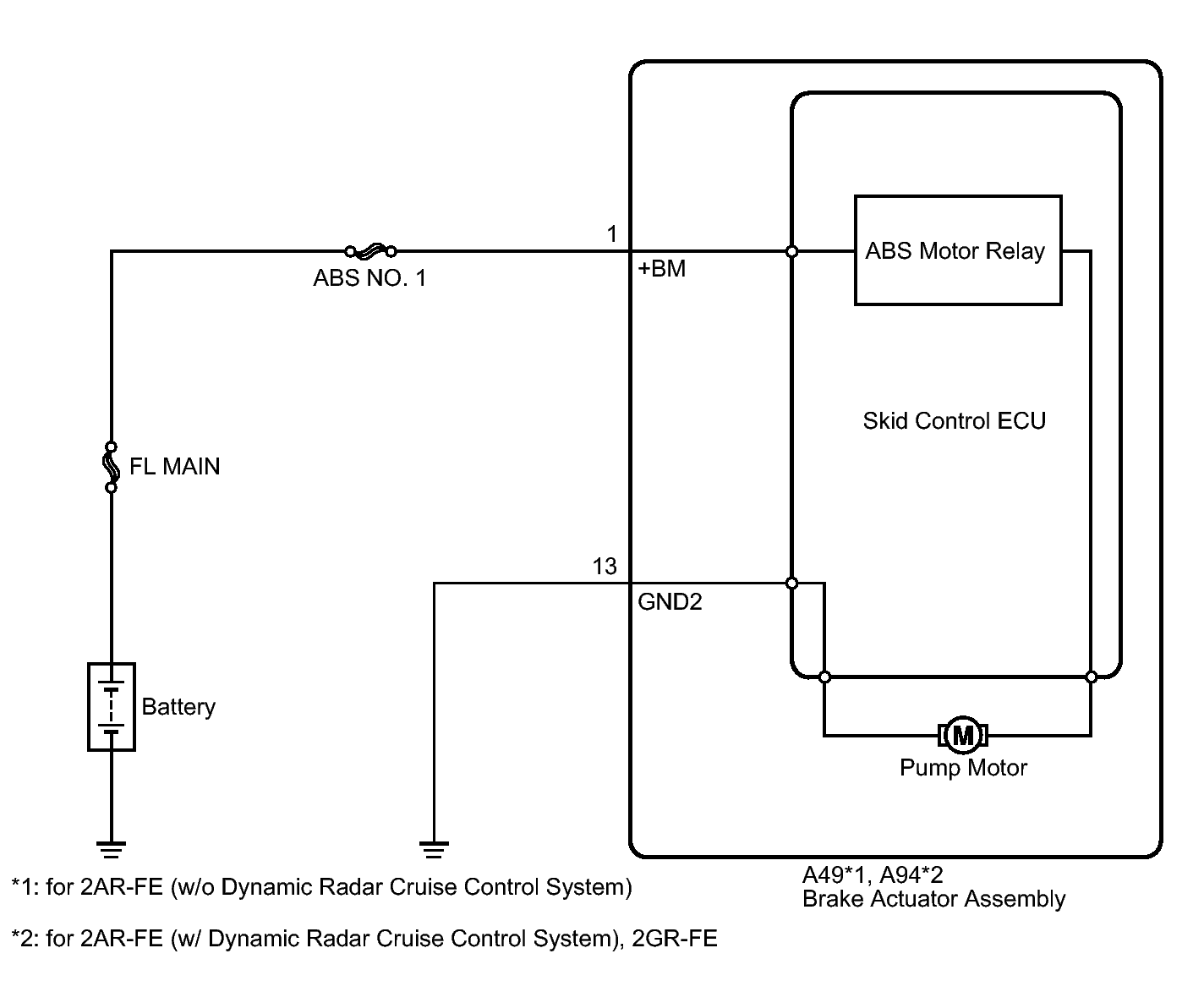

Fig 1: Identifying ABS Motor Relay Wiring Diagram

GTY472450

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
