DTC C1249: Open in Stop Light Switch Circuit [08/2015 - ]: Wiring Diagram

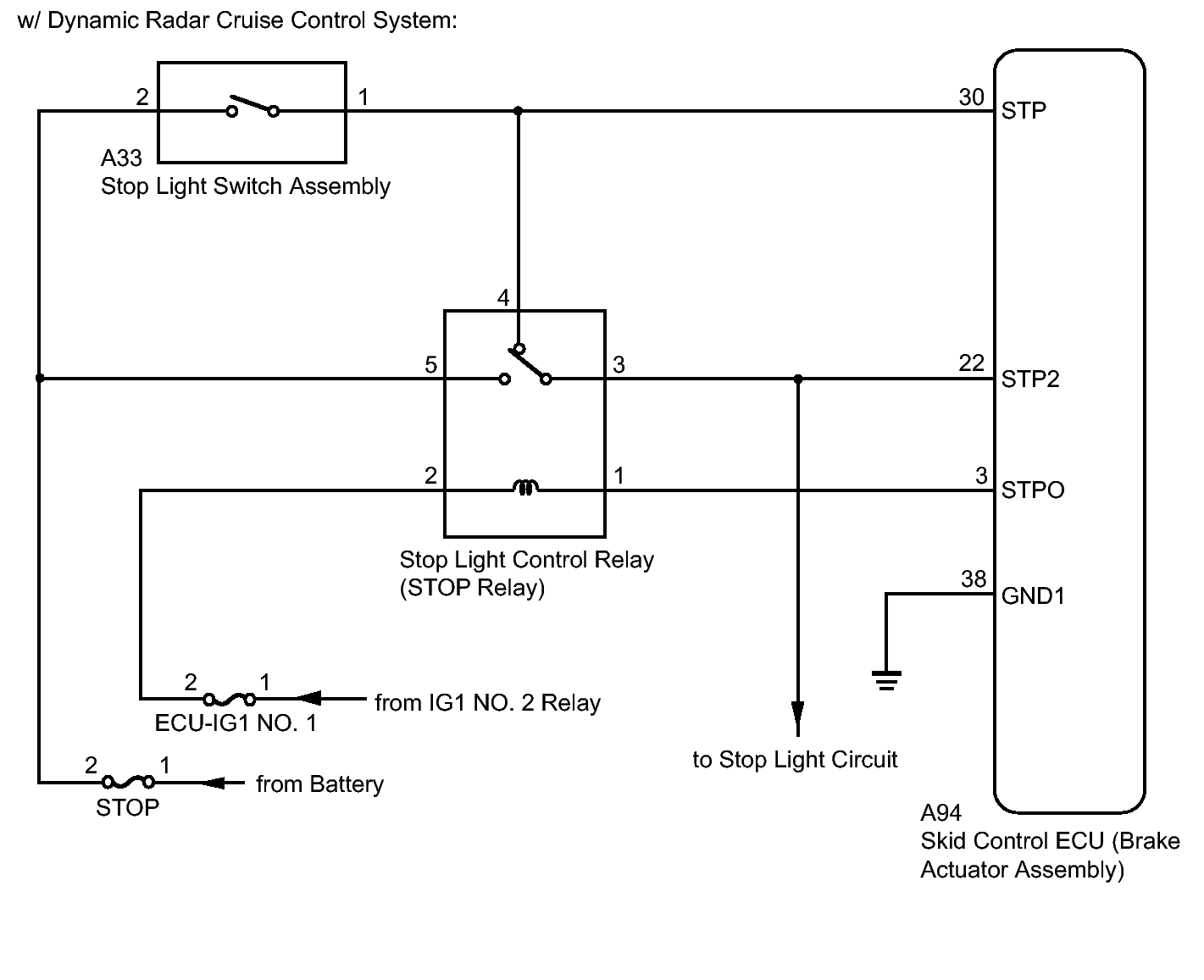

Fig 1: Identifying Stop Light Switch Wiring Diagram (w/ Dynamic Radar Cruise Control System)
GTY474883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Stop Light Switch Wiring Diagram (w/o Dynamic Radar Cruise Control System)
GTY478802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
