DTC C1234: Yaw Rate Sensor; DTC C1472: Acceleration Sensor [08/2015 - ]: Wiring Diagram

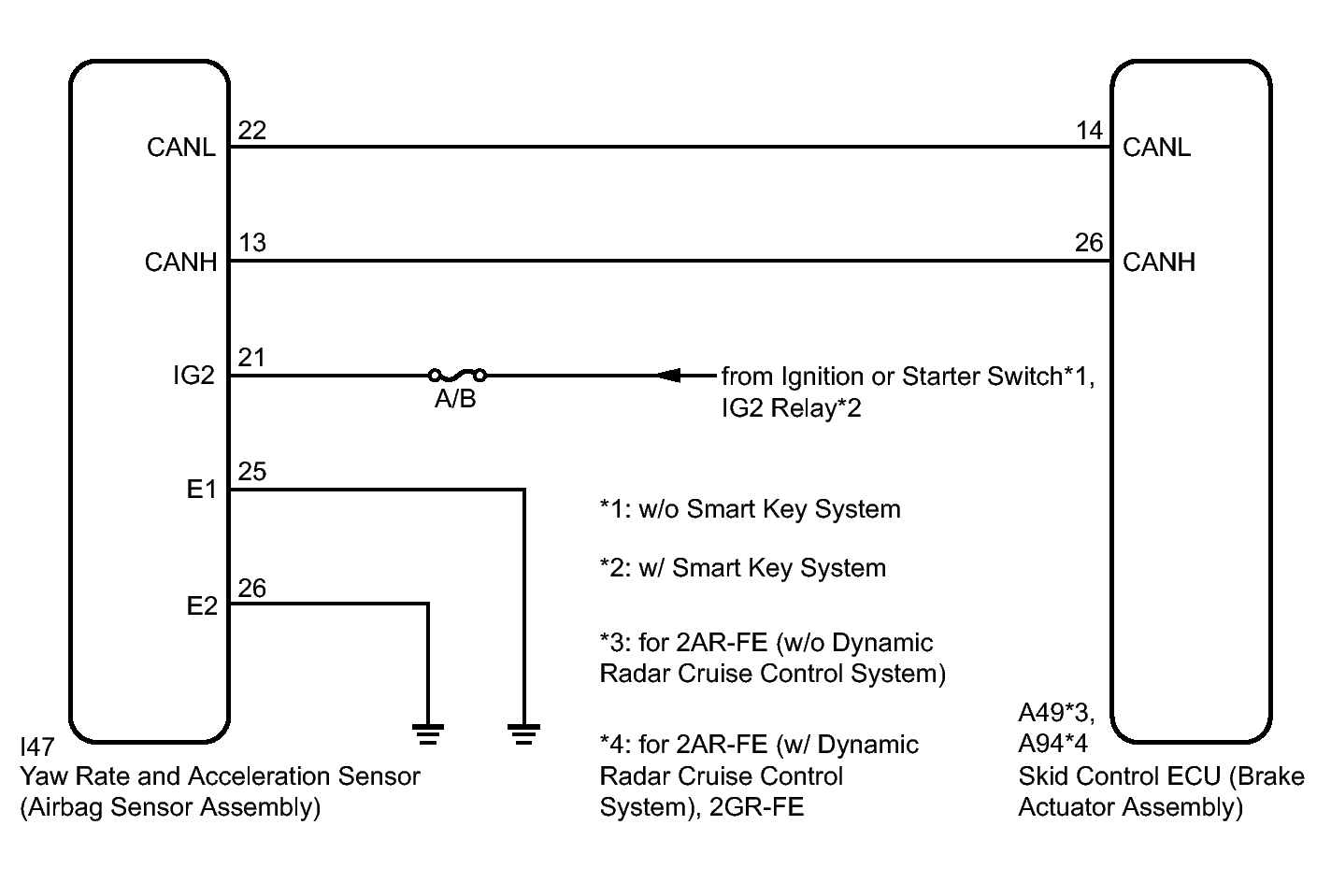

Fig 1: Identifying Yaw Rate Sensor Wiring Diagram

GTY481161

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
