TC and CG Terminal Circuit [08/2015 - ]: Wiring Diagram

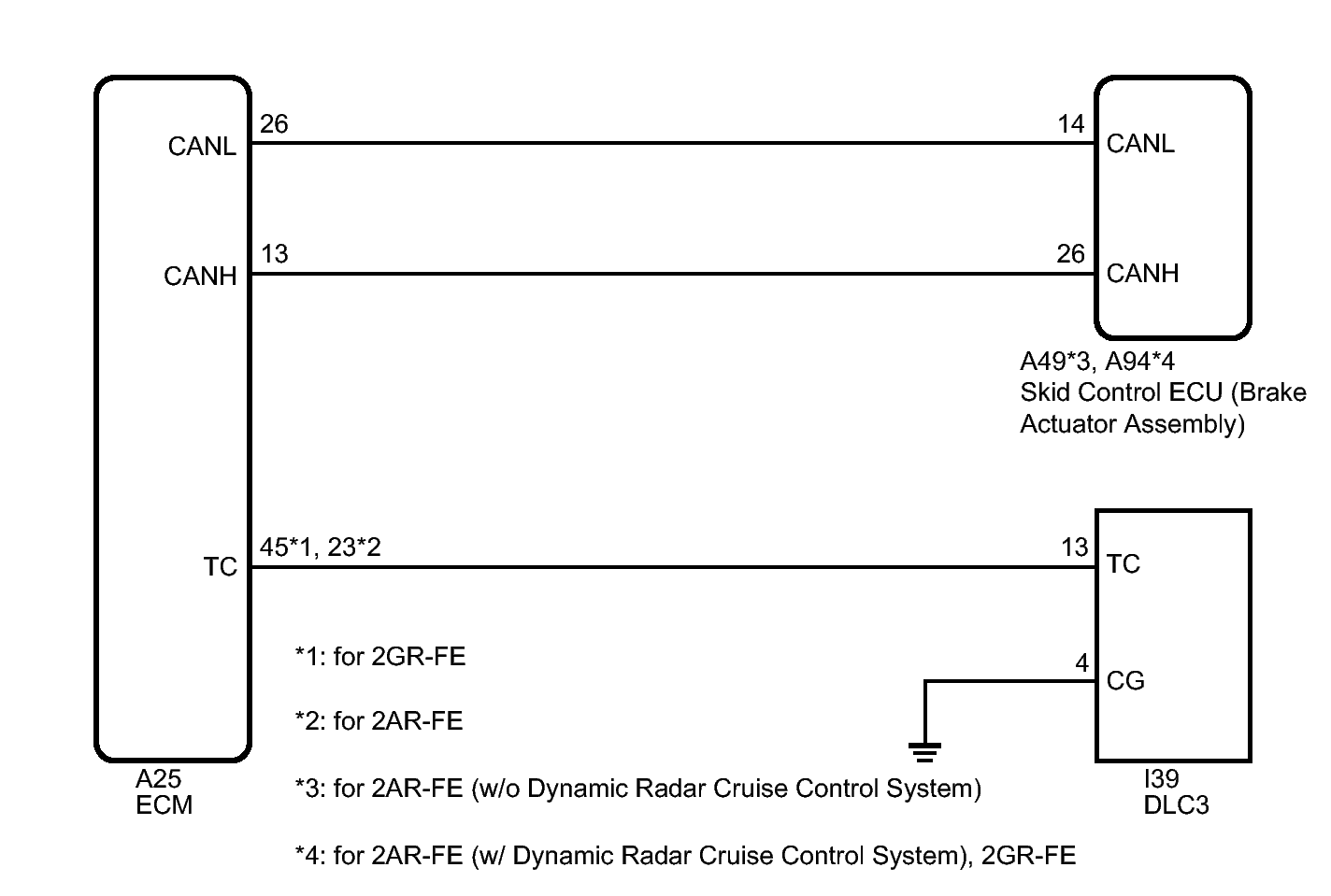

Fig 1: Identifying TC And CG Terminal Wiring Diagram

GTY476391

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
