Sun Roof/T-Top/Convertible Top
>>
Sliding Roof (Diagnostic Codes (B2341-B2343) & Symptom Tests) (Except Hybrid)
>>
Sliding Roof System
>>
Symptom Tests
>>
Sliding Roof does not Move by Operating Sliding Roof Control Switch [08/2015 - ]
>>
Wiring Diagram
Sliding Roof does not Move by Operating Sliding Roof Control Switch [08/2015 - ]: Wiring Diagram

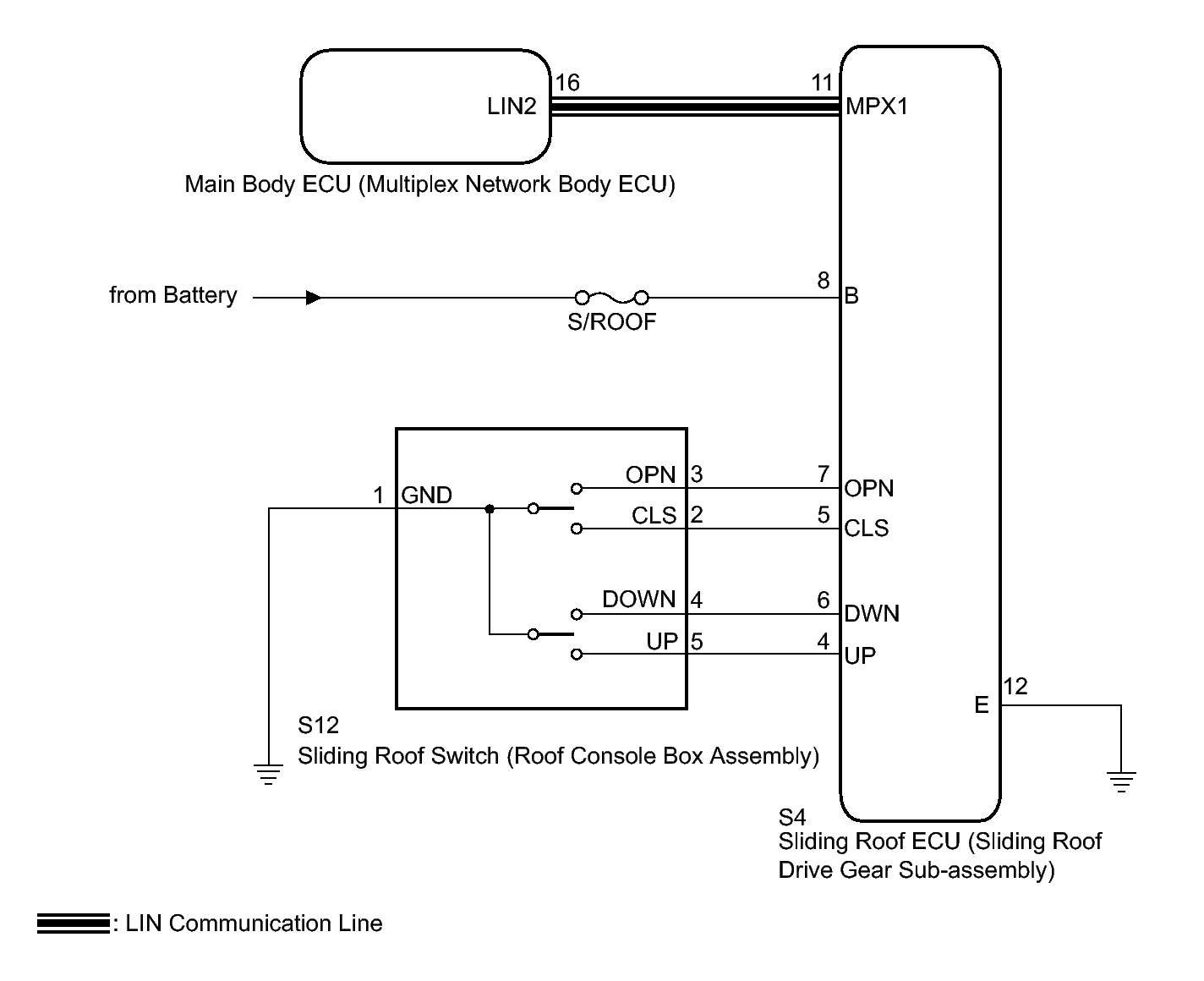

Fig 1: Sliding Roof ECU Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
