Components [08/2015 - ]: Illustration

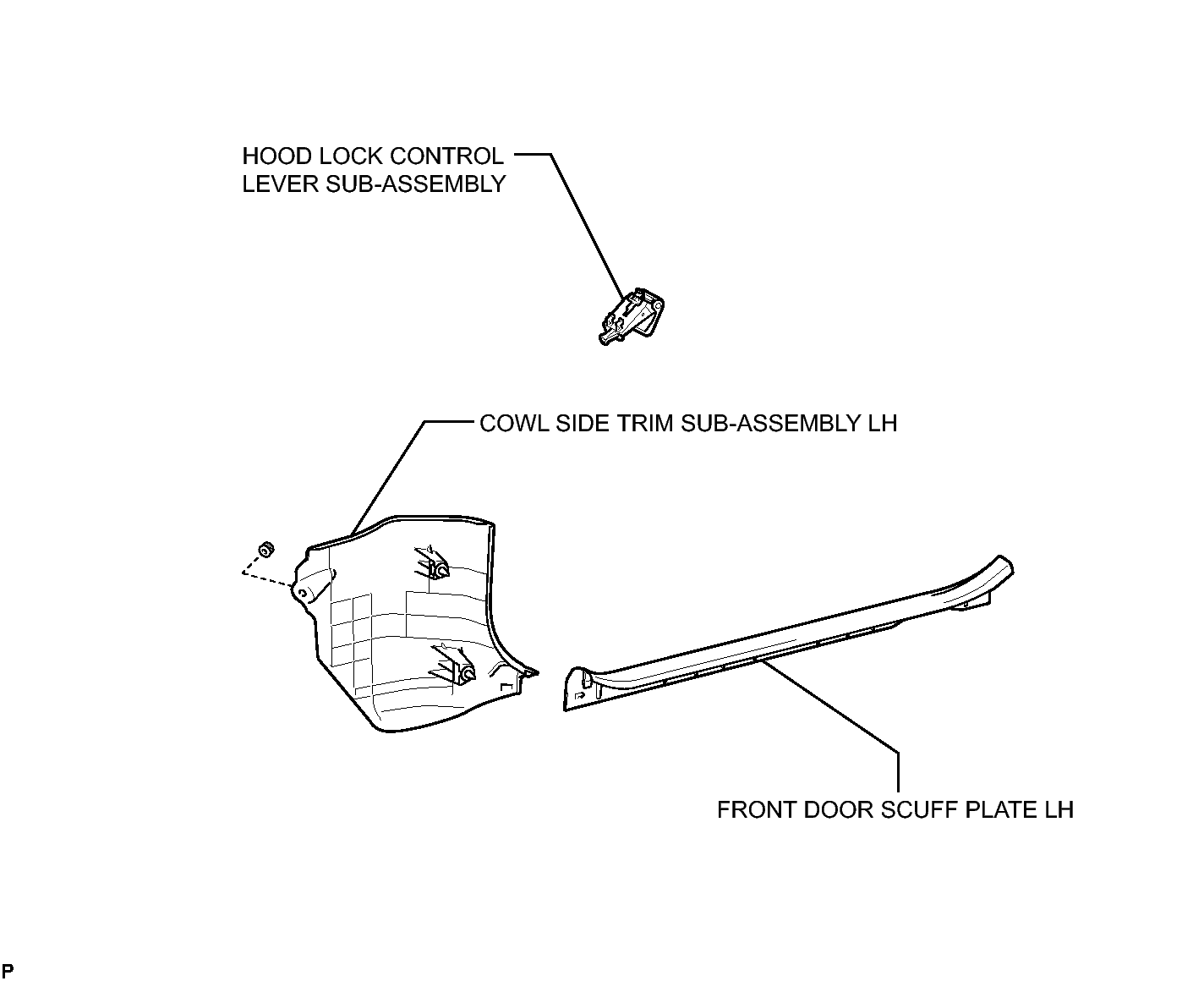

Fig 1: Identifying Hood Lock Control Cable Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY475892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

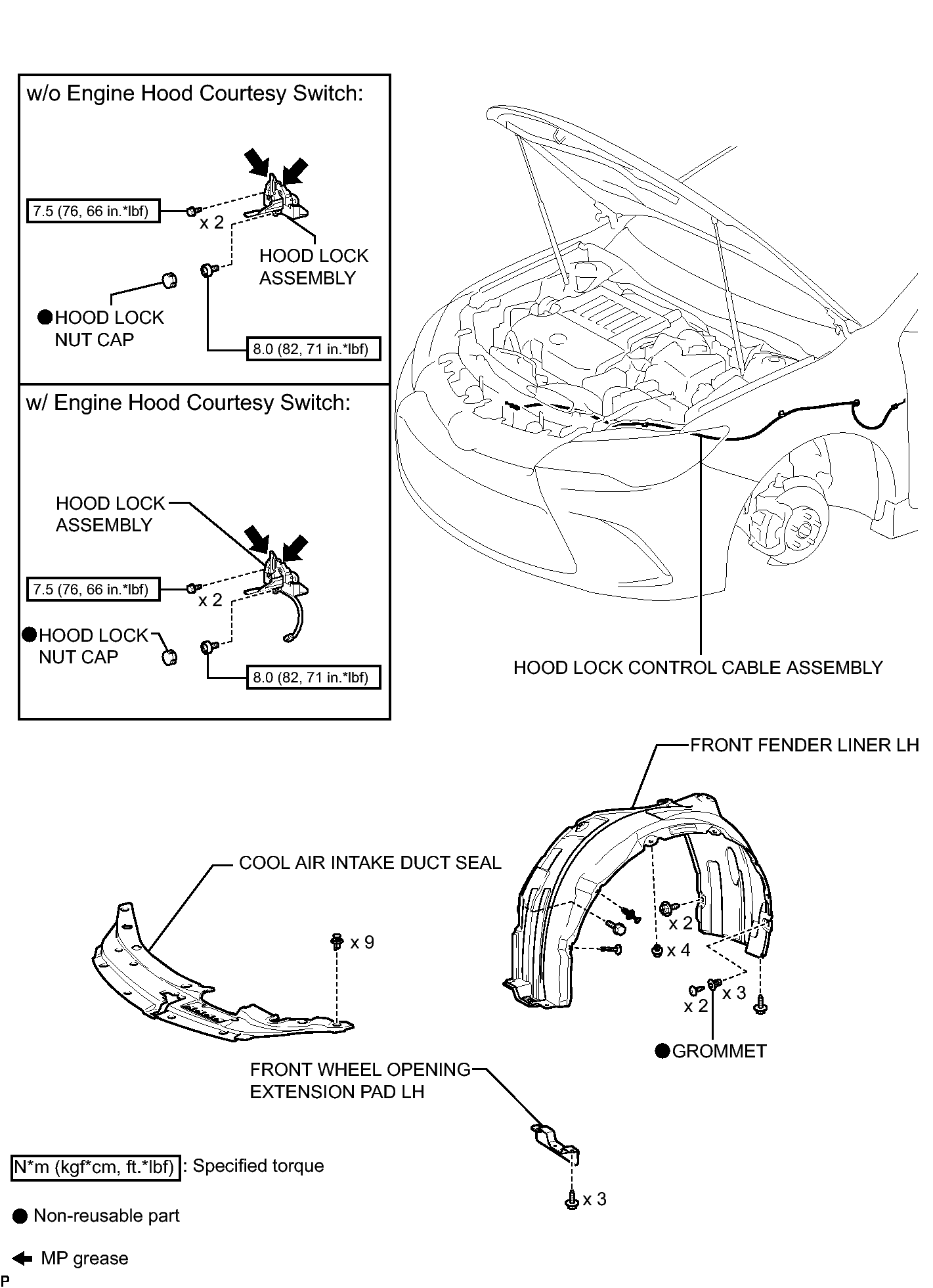

Fig 1: Identifying Hood Lock Control Cable Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY477347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
