Rear Power Window RH does not Operate with Rear Power Window Switch RH [08/2015 - ]: Wiring Diagram

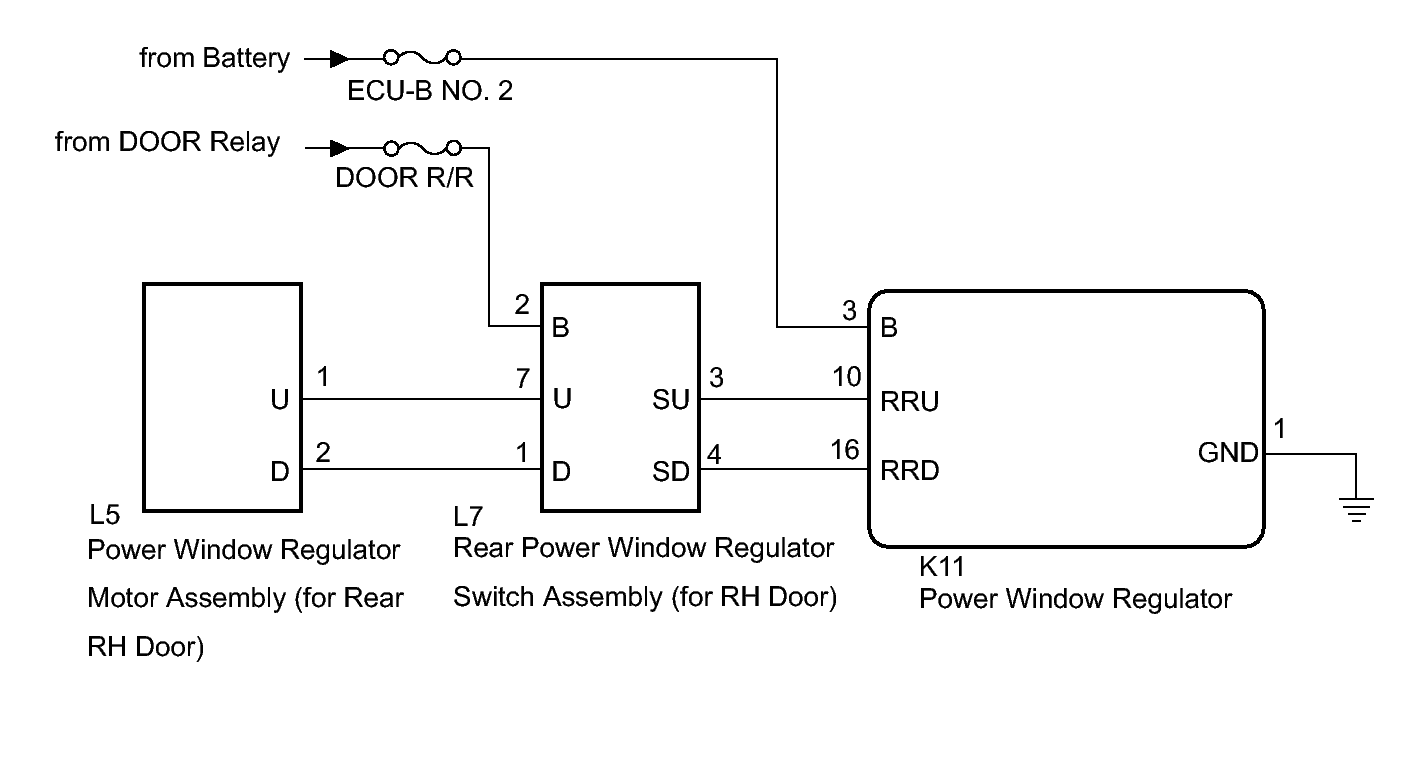

Fig 1: Rear Power Window Switch RH Wiring Diagram

GTY558285

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
