Rear Power Window LH does not Operate with Rear Power Window Switch LH [08/2015 - ]: Wiring Diagram

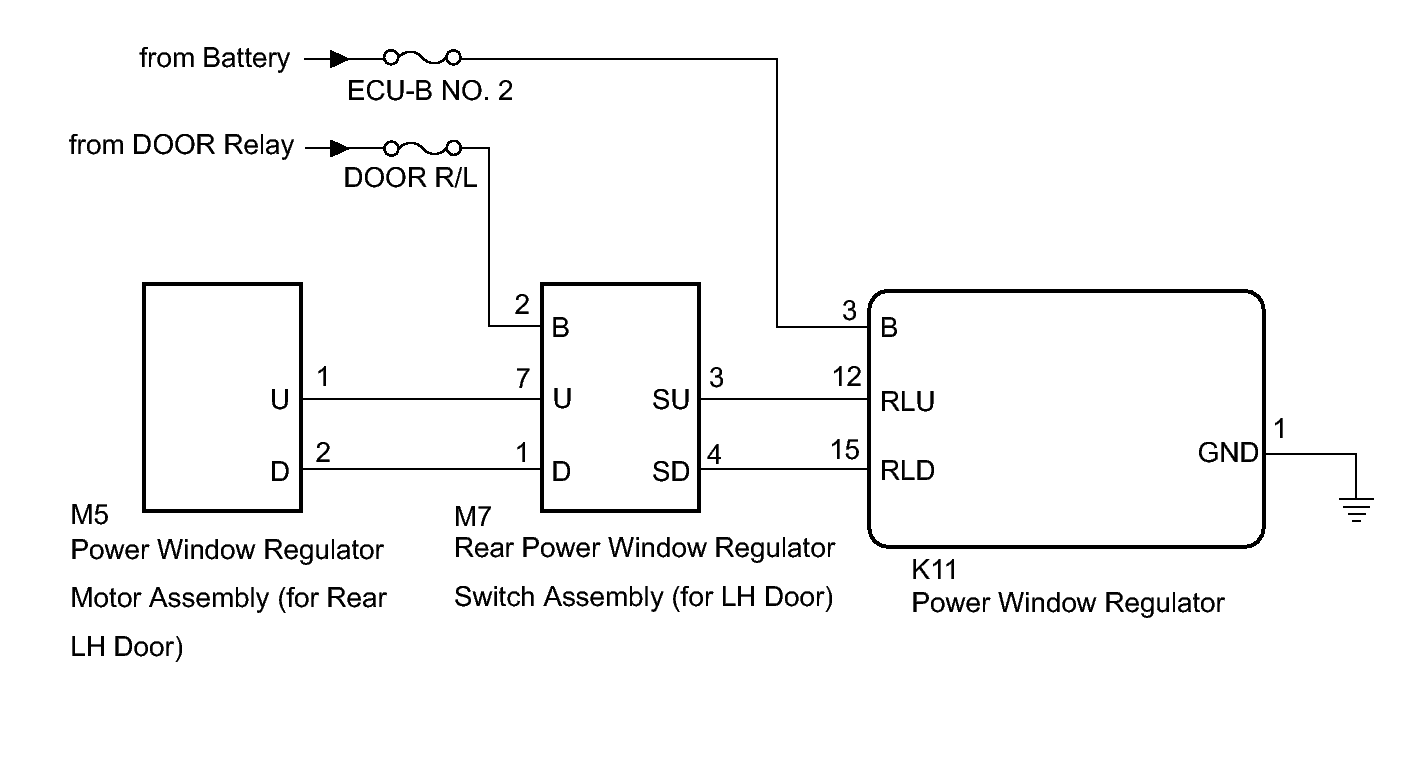

Fig 1: Rear Power Window Switch LH Wiring Diagram

GTY558291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
