DTC B2312: Power Window Switch Malfunction [08/2015 - ]: Wiring Diagram

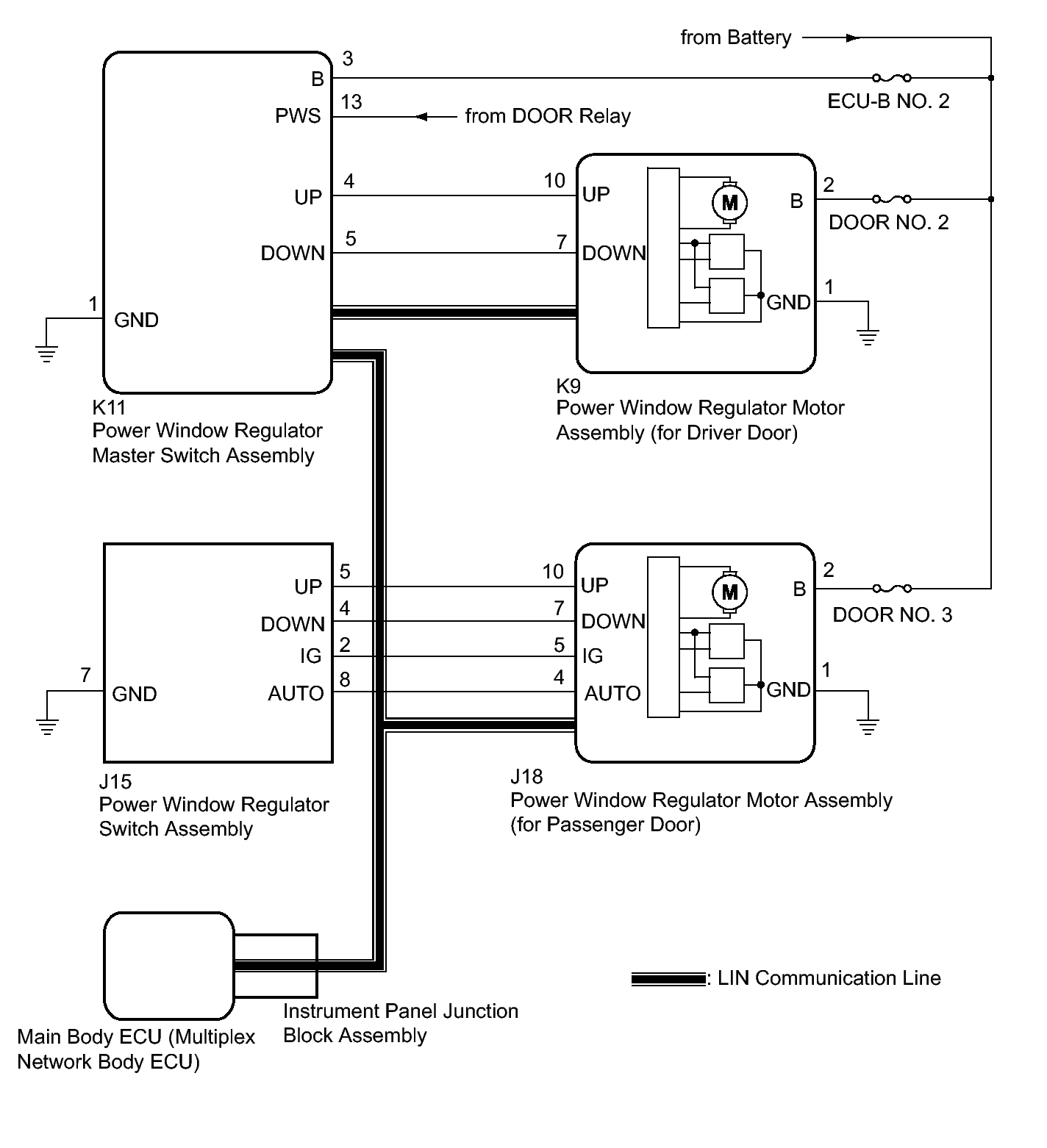

Fig 1: Power Window Switch Wiring Diagram

GTY477827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
