DTC B1579: Voice Recognition Microphone Disconnected [08/2015 - ]
>>
Wiring Diagram
DTC B1579: Voice Recognition Microphone Disconnected [08/2015 - ]: Wiring Diagram

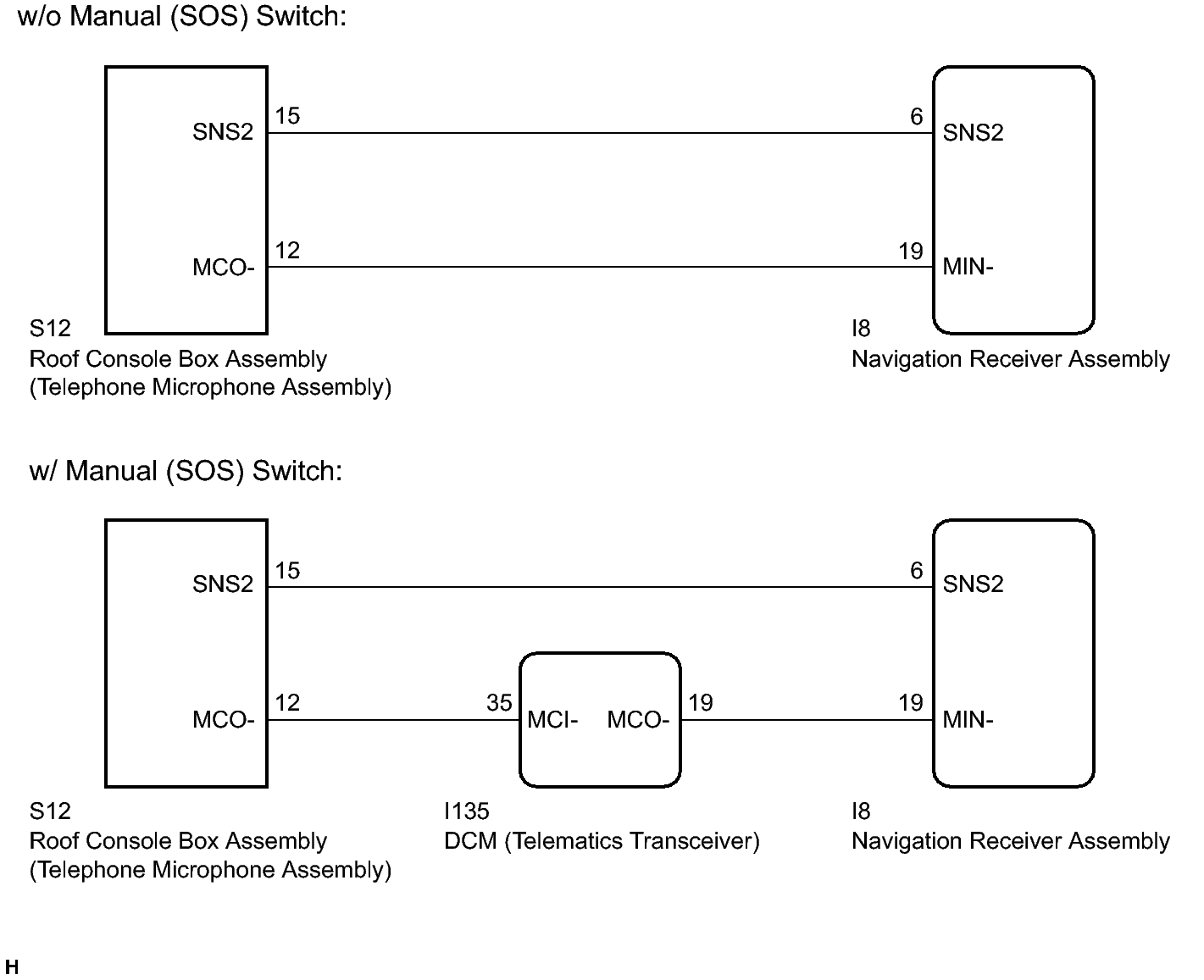

Fig 1: Telephone Microphone Circuit-Wiring Diagram
