Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter [08/2015 - ]: Wiring Diagram

  1. for 2AR-FE
    Fig 1: Vehicle Speed Signal Wiring Diagram (2AR-FE)
    GTY567105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 2GR-FE

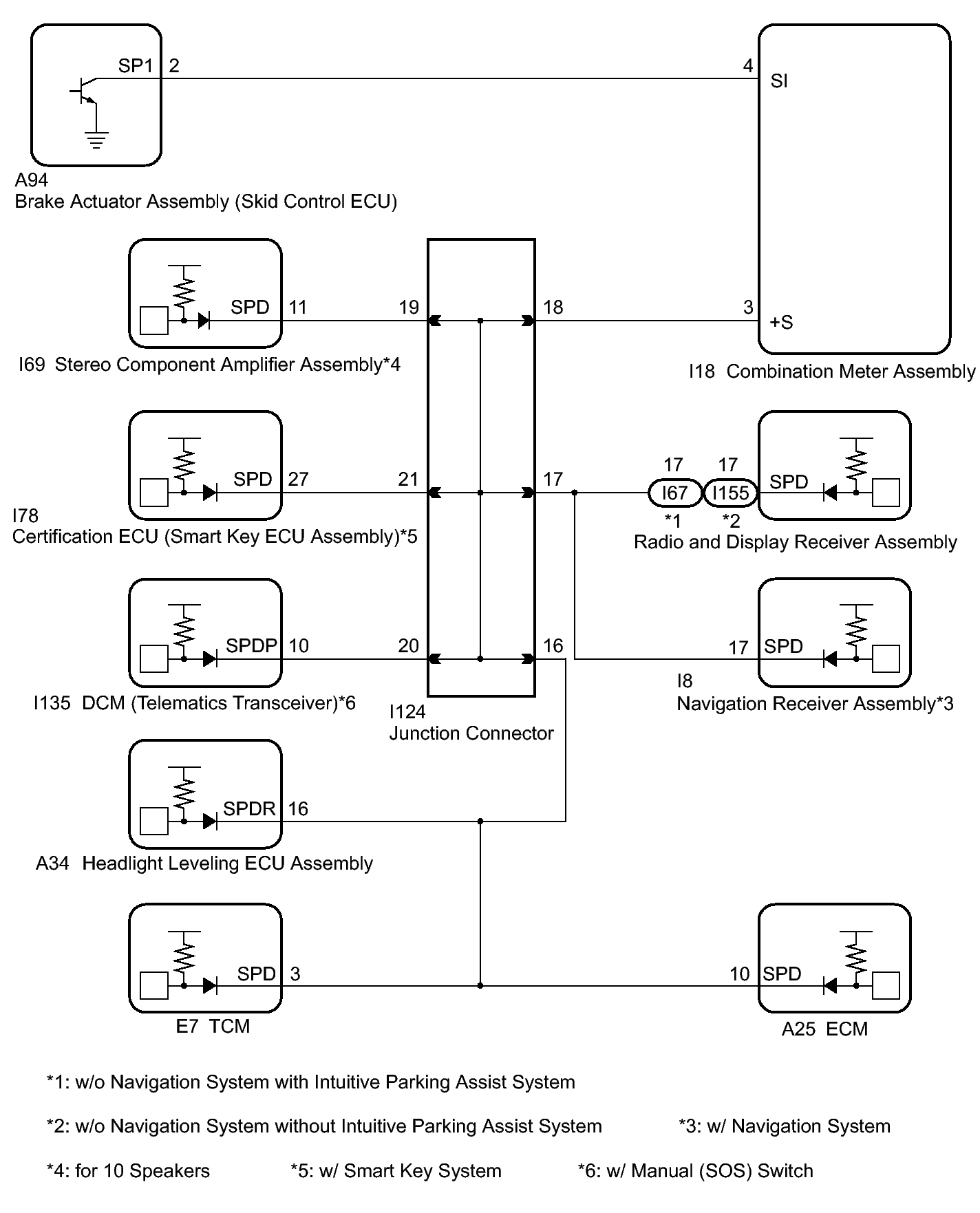

    Fig 2: Vehicle Speed Signal Wiring Diagram (2GR-FE)
    GTY579418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
