Speaker Circuit [08/2015 - ]: Wiring Diagram

for 6 Speakers

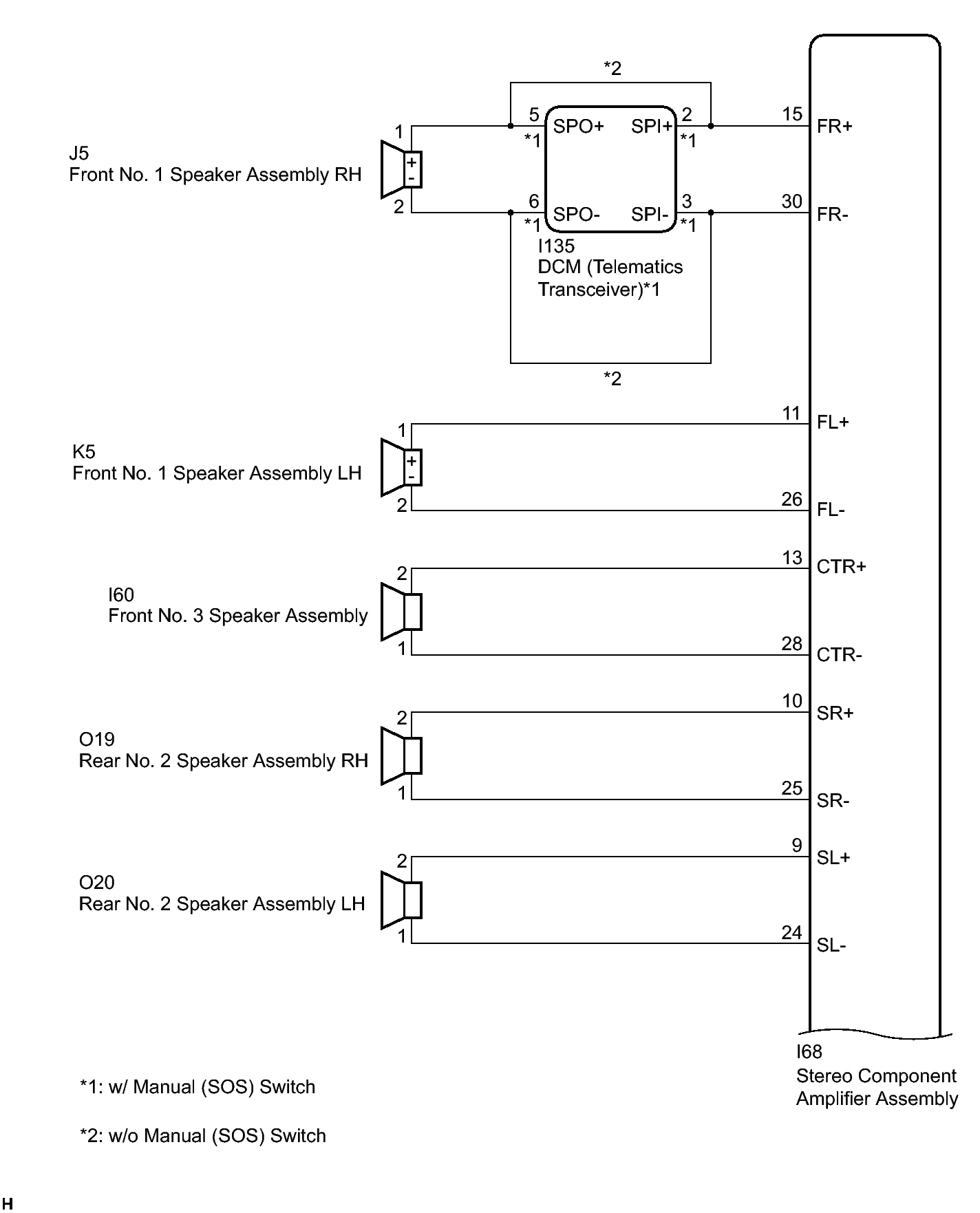

Fig 1: Speaker (6 Speakers) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for 10 Speakers

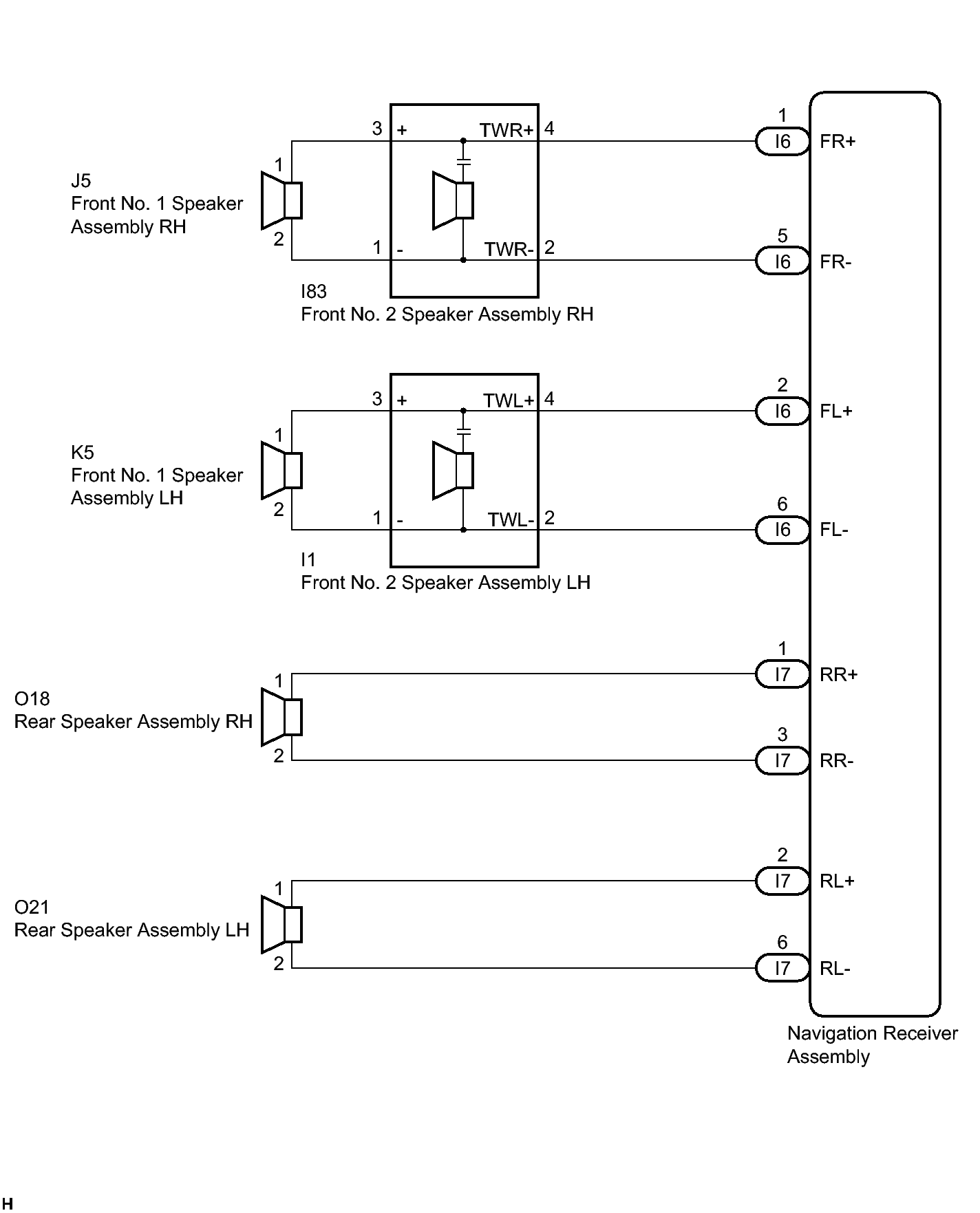

Fig 2: Speaker (10 Speakers) Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

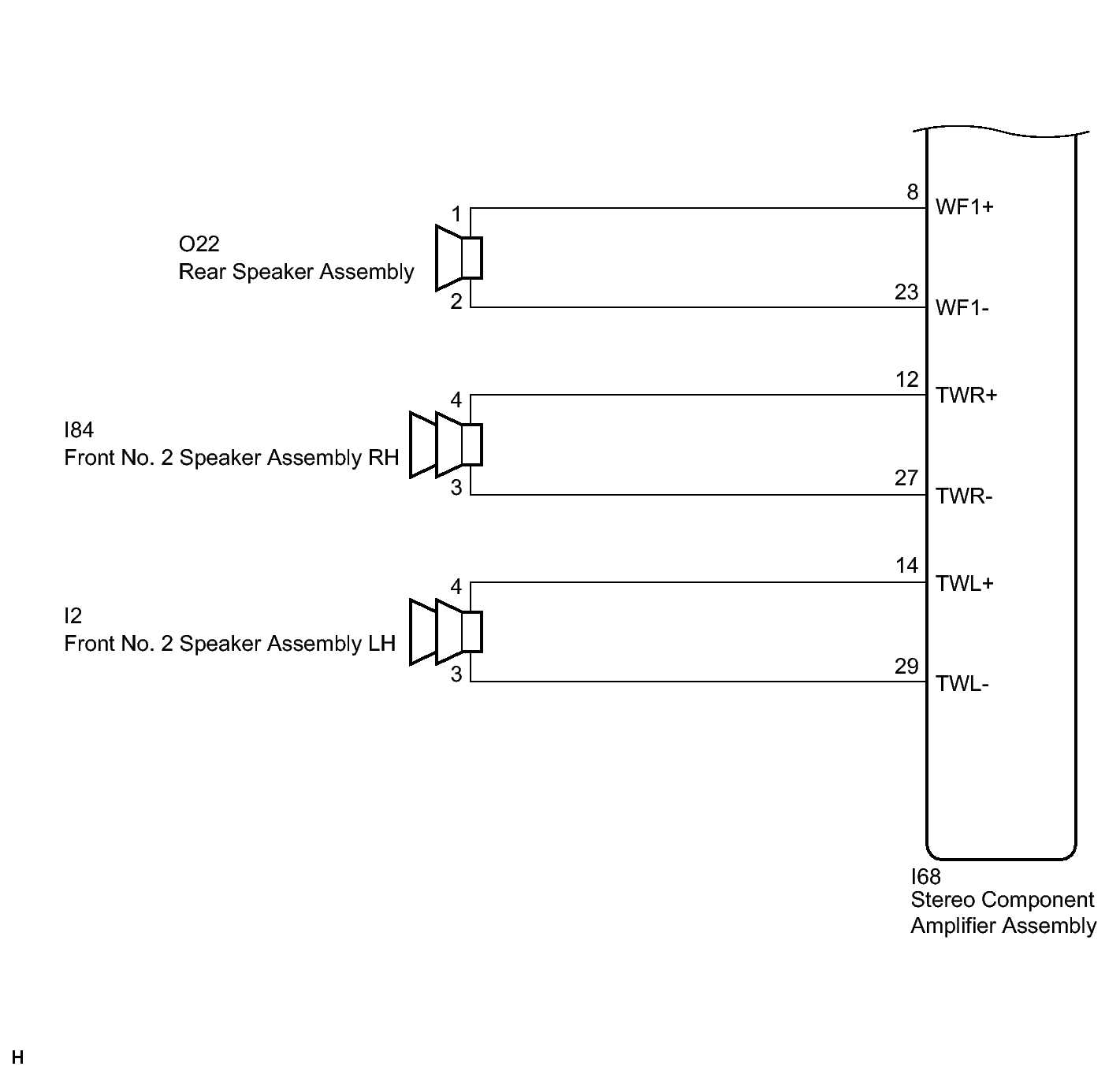

Fig 3: Speaker (10 Speakers) Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
