Removal [08/2015 - ]

HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

1. REMOVE FRONT BUMPER ASSEMBLY

   Refer to REMOVAL [08/2015 - ]

2. REMOVE HEADLIGHT ASSEMBLY
   1. Remove the 3 screws and bolt.

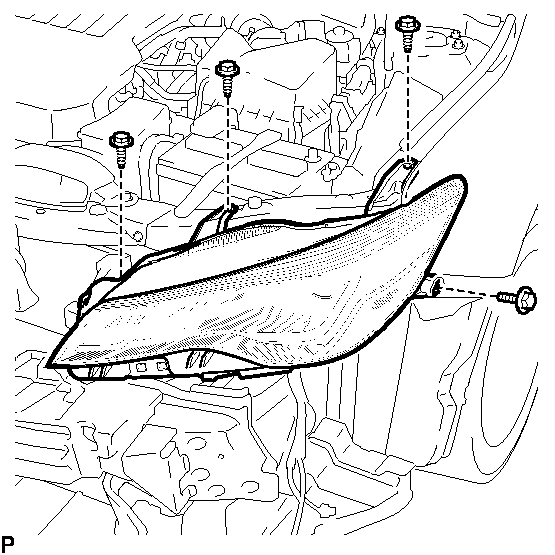

      Fig 1: Locating Screws And Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disengage each clamp.
   3. Disconnect each connector and remove the headlight assembly.
