Components [08/2015 - ]: Illustration

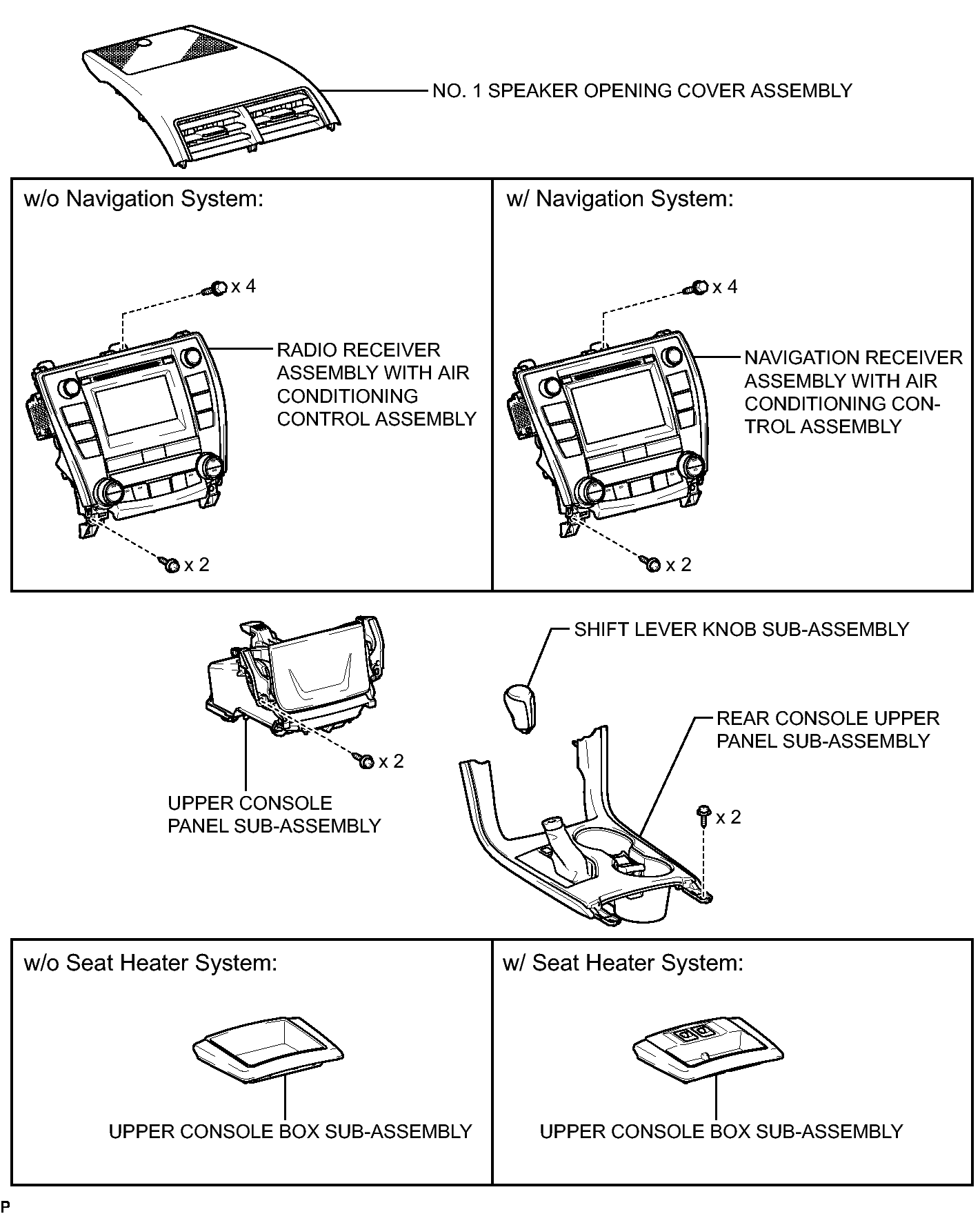

Fig 1: Hazard Warning Switch Replacement Components (1 Of 3)
GTY480848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

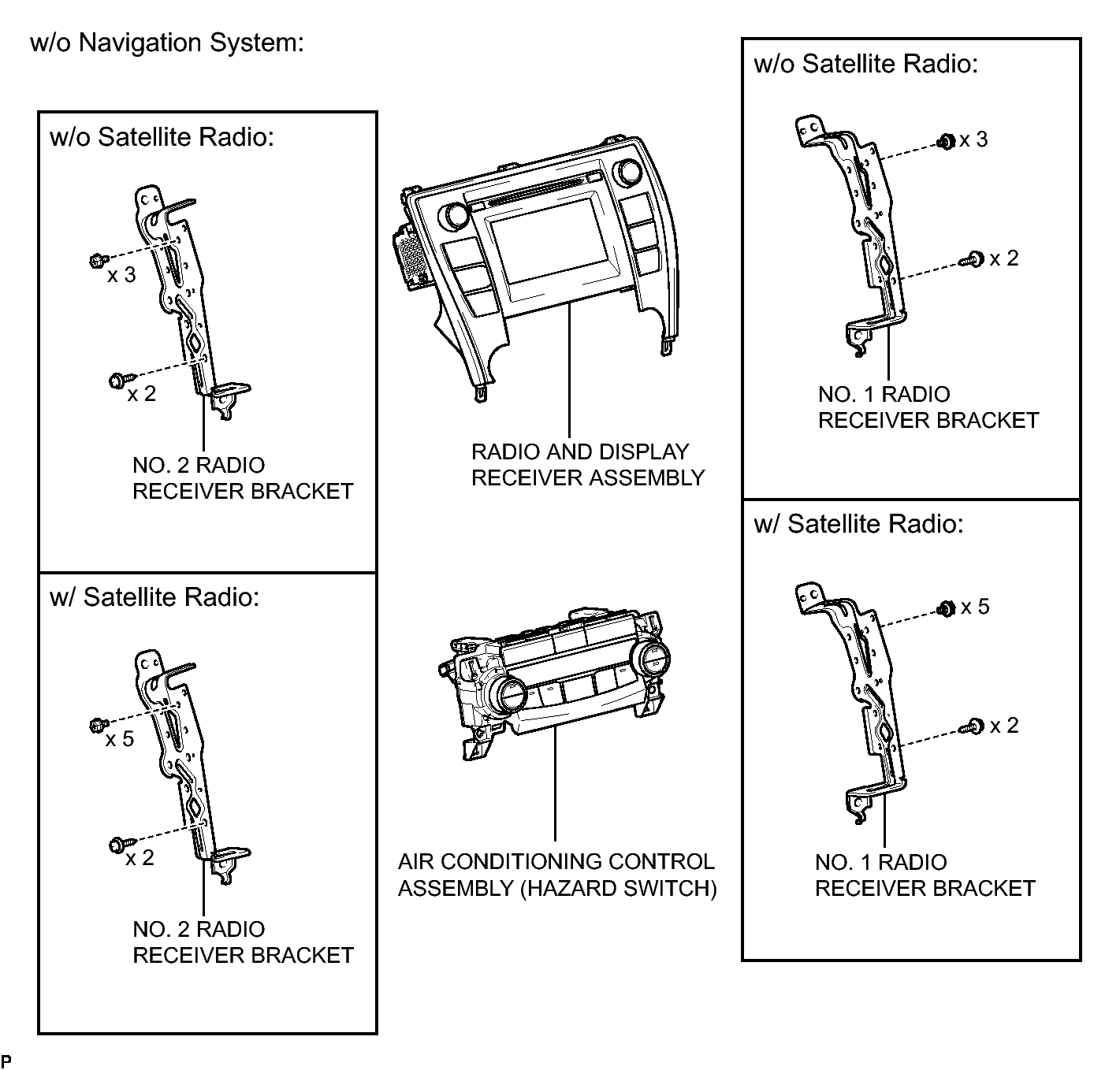

Fig 1: Hazard Warning Switch Replacement Components (2 Of 3)
GTY477429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

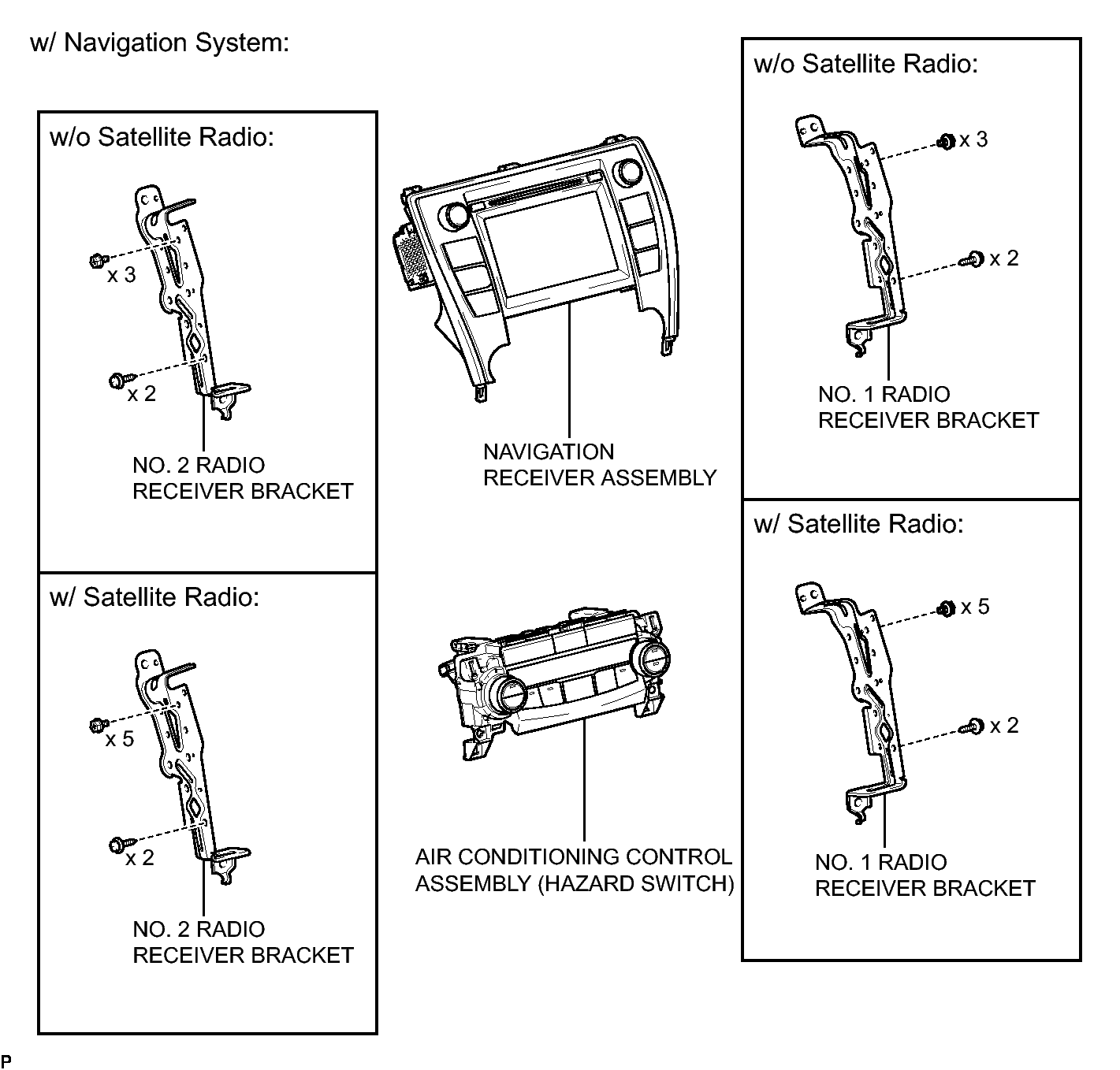

Fig 1: Hazard Warning Switch Replacement Components (3 Of 3)
GTY482761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
