Turn Signal Switch Circuit [08/2015 - ]: Wiring Diagram

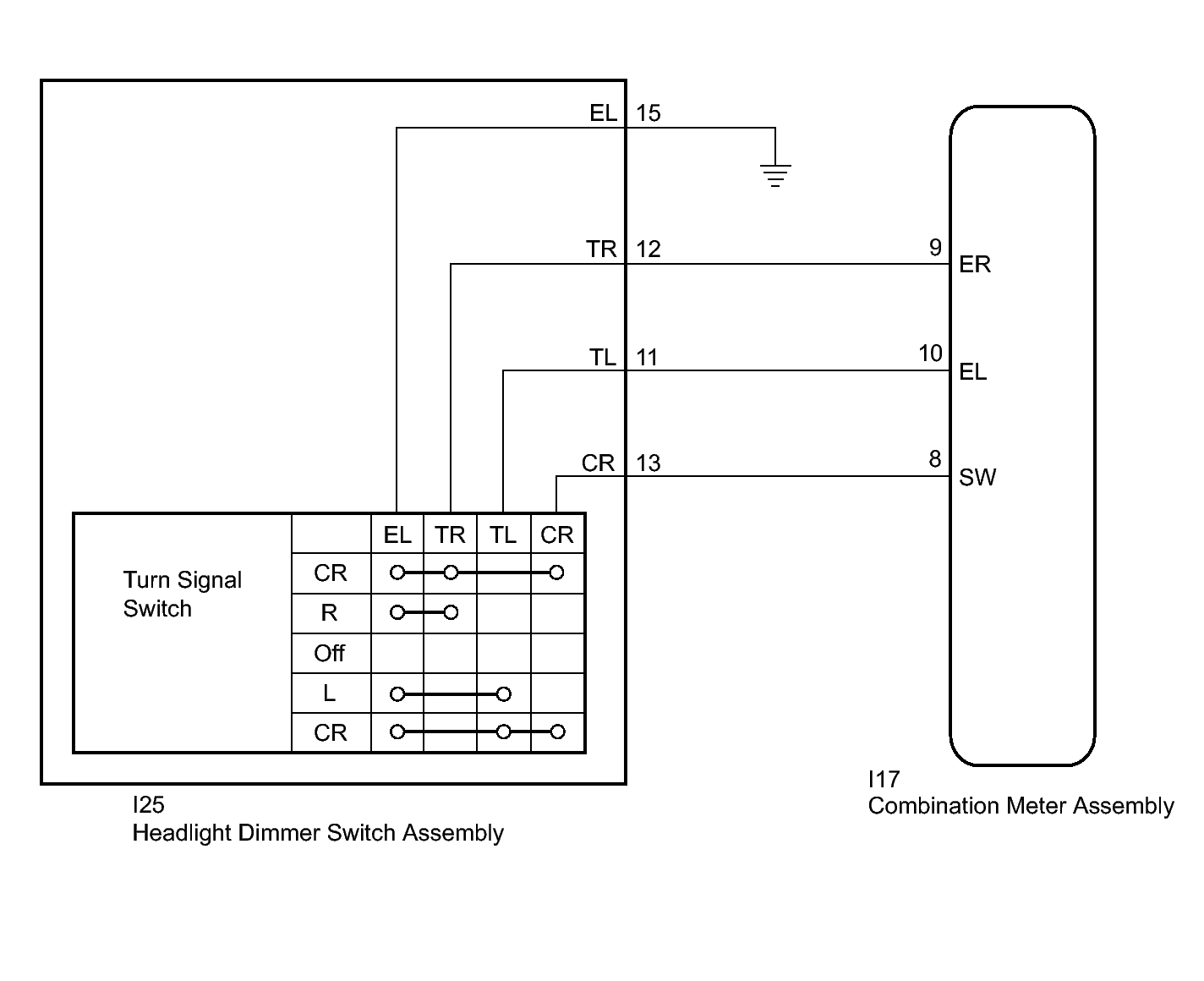

Fig 1: Turn Signal Switch Wiring Diagram

GTY554281

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
